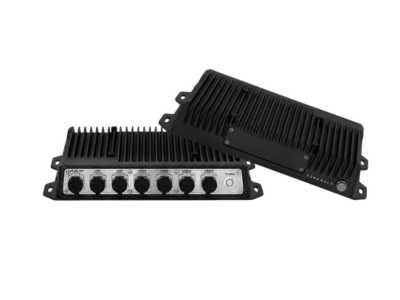

    HyperCore 700R

    HyperCore 700R is a rugged industrial edge computer powered by Intel® Core™ processors, designed for reliable operation in harsh outdoor and mission-critical environments. Built with a fully sealed IP66-rated enclosure, it delivers dependable computing performance for intelligent transportation, energy and utilities, industrial automation, outdoor surveillance, and Industrial IoT applications. Its ruggedized architecture, industrial-grade connectors, and wide operating range make it an ideal platform for infrastructure deployments requiring long-term reliability in challenging environmental conditions.

    Compatible Modules

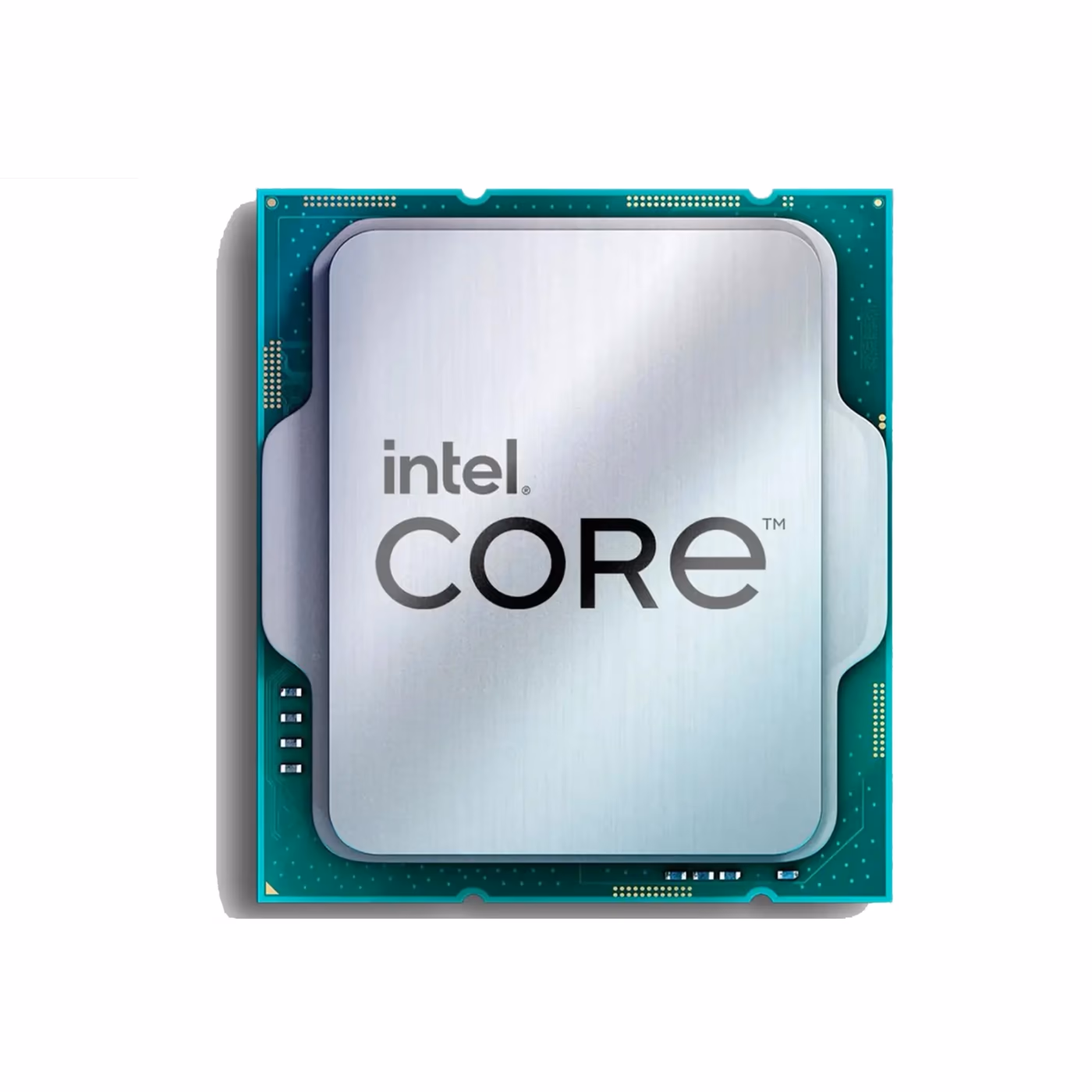

    Intel Core®
    Intel Core®

    Built For Demanding
    Applications

    The HyperCore 700R is engineered for reliable operation in harsh and mission-critical environments.

    OUTDOOR SURVEILLANCE

    OUTDOOR SURVEILLANCE

    ENERGY & UTILITIES

    ENERGY & UTILITIES

    SMART MANUFACTURING & MES

    SMART MANUFACTURING & MES

    Oil & Gas Monitoring

    Oil & Gas Monitoring

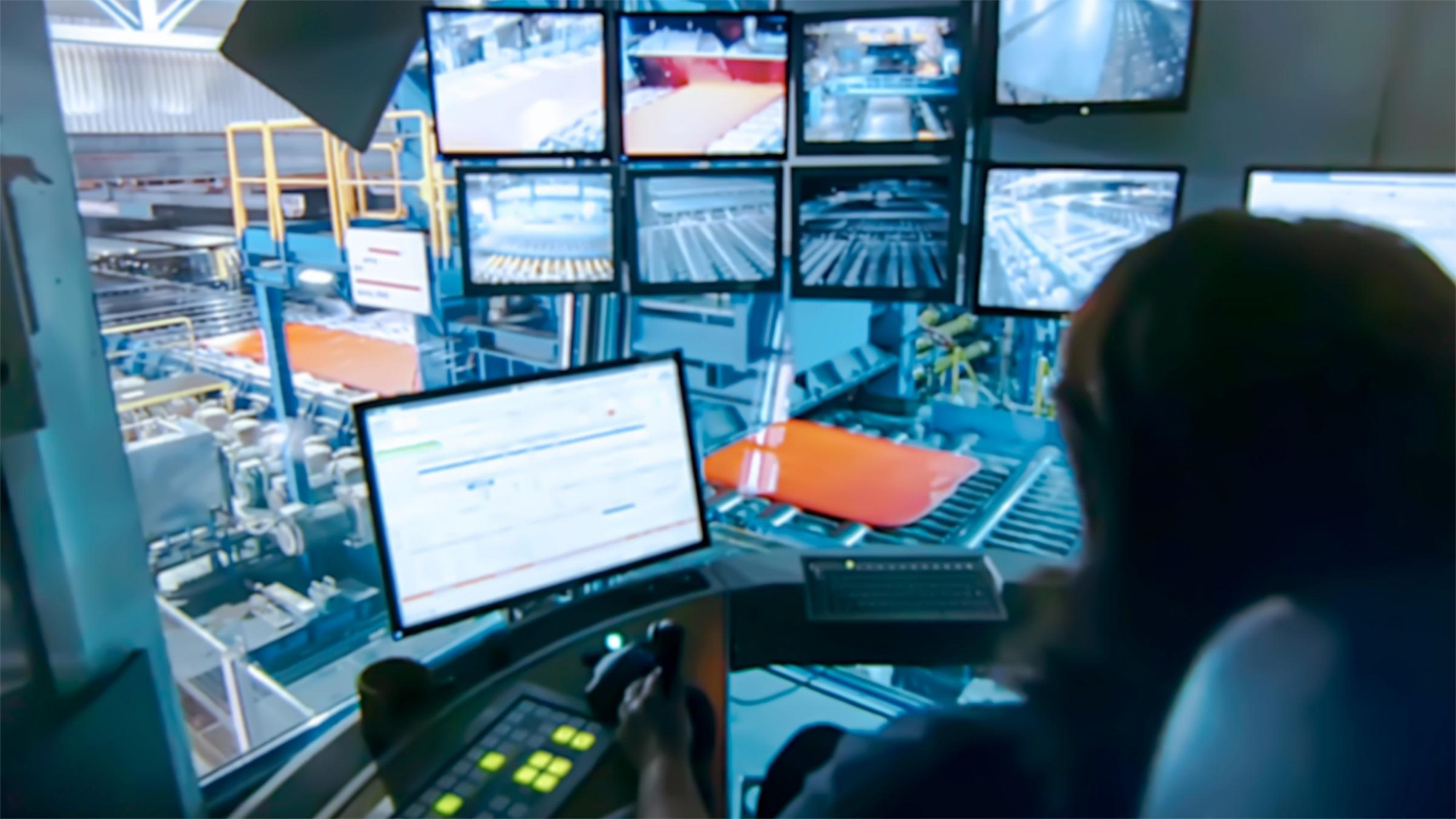

    INDUSTRIAL AUTOMATION

    INDUSTRIAL AUTOMATION

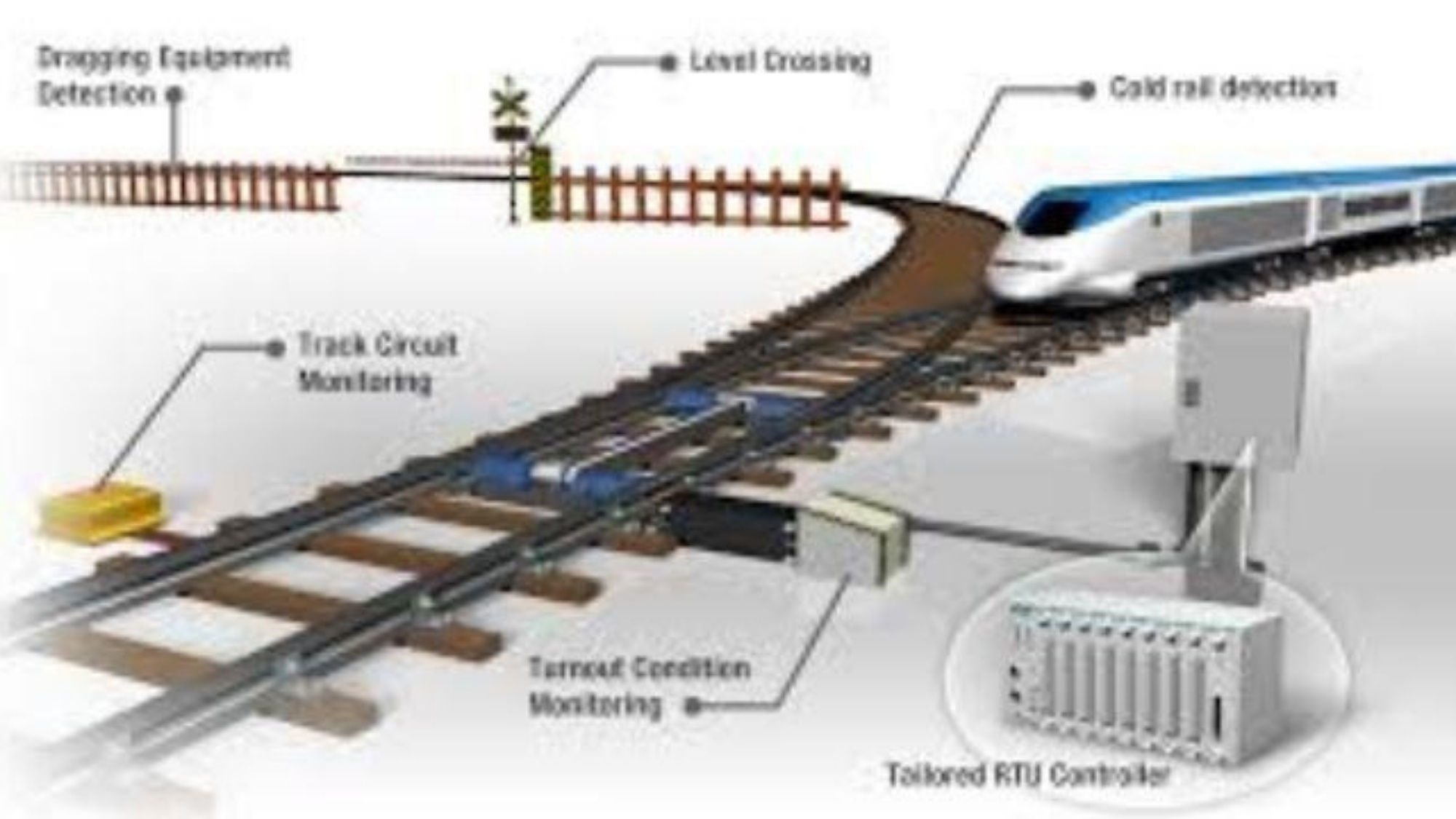

    INTELLIGENT TRANSPORTATION

    INTELLIGENT TRANSPORTATION

    Specifications

    Technical Specifications

    Compute Module — INTEL® CORE™ PLATFORM

    Compute Module — INTEL® CORE™ PLATFORM specifications for HyperCore 700R
    Parameter
    CPUIntel® Core™ 7th Gen i5/i7Intel® Core™ 10th Gen i5/i7
    Memory1× SO-DIMM memory slot, supports DDR4 SO-DIMM slot (Up to 16GB)1× SO-DIMM memory slot, supports DDR4 SO-DIMM slot (Up to 32GB)
    Storage 1x mSATA SSD Slot
    ChipsetIntel® SOC
    Operating SystemWindows 7 | Windows 10 | Linux operating system

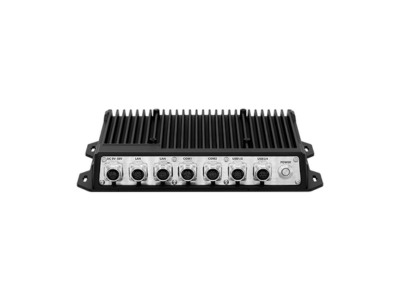

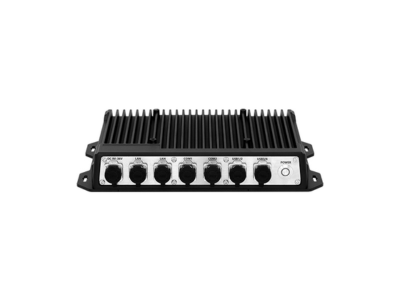

    I/O Interfaces

    I/O Interfaces specifications for HyperCore 700R
    InterfaceSpecification
    Display1× VGA: Resolution up to 1920×1200 @ 60Hz
    Ethernet2× Intel i210V LAN Chip (10 /100 /1000 Mbps, LP-12 Type)
    USB4x USB 2.0 ports (LP-12)
    COM
    • 1. 2x RS-232 /422 /485 (LP-12 Type)
    • 2. 4x RS-232 (LP-12 Type)
    GPIO 8 ports GPIO (4× GPI+4× GPO, LP-12 Type, optional)
    Watchdog Support

    Expansion & Storage

    Expansion & Storage specifications for HyperCore 700R
    SlotSpecification
    Mini PCIe1x Mini PCI Express socket for 4G cellular module
    M.2 Key E1× M.2 2230 Key E socket for Wi-Fi/Bluetooth module
    mSATA1× mSATA slot for SATA SSD
    SO-DIMM1× DDR4 SO-DIMM RAM

    Power & Control

    Power & Control specifications for HyperCore 700R
    ParameterSpecification
    Power InputDC 9-36V Power Input With Overvoltage Protection
    Power InterfaceLP-12 Type DC Plug
    Buttons 1x Push button switch with indicator light

    Mechanical

    Mechanical specifications for HyperCore 700R
    ParameterSpecification
    Dimensions260mm×152mm×43mm
    MountingIntegrated Wall Mount Brackets
    EnclosureRugged Aluminium Alloy

    Environmental

    Environmental specifications for HyperCore 700R
    parameterSpecification
    Operating Temperature-20℃ to 60℃
    ProtectionIP66-Rated Protection
    CoolingFanless Thermal Design with Passive Conduction Cooling

    Package Contents & Accessories

    Package Contents & Accessories specifications for HyperCore 700R
    Packing List
    Main UnitHyperCore 700R
    MountingScrews for Integrated Wall-Mount Brackets
    Standard Accessories
    Power AdapterMeanwell GST 90W AC-DC Power Adaptor (12V, 7.5A)
    Power Cable
    • 1. EU1-MC13 1.8M Universal Power Cable
    • 2. DC Plug P1MF to LP-12M 3 Pin aviation plug Converter
    Cables & Connectors
    • 1. LP-12 6-Pin male aviation plug to DB-9 male cable
    • 2. LP-12 7-Pin male aviation plug to 2× USB Type-A female cable
    • 3. LP-12 8-Pin male aviation plug to RJ-45 female cable
    • 4. LP-12 8-Pin male aviation plug to VGA male cable
    • 5. LP-12 8-Pin male aviation plug to XXX cable
    Optional Accessories
    Wi‑Fi Module
    • 1. Wireless AW-CB375NF NIC, Dual-Band Wi-Fi 5, BT 5.0
    • 2. Wireless AX210 NIC, Gigabit Tri-Band Wi-Fi 6E, BT 5.3
    4G LTE ModuleQuectel EG25-G 4G LTE Cat 4 Global Band Mini PCIe Module
    Wi‑Fi Antenna2.4GHz - 5GHz 5dBi Omni Wi-Fi Antenna with SMA Connector
    4G Antenna600-6000MHz 5dBi Omni 4G Antenna with SMA Connector
    StoragemSATA SSD 128GB/ 256GB/ 512GB/ 1TB
    MemoryDDR4 SO-DIMM RAM 4GB/ 8GB/ 16GB/ 32GB

    ORDERING INFORMATION For HyperCore 700R

    ORDERING INFORMATION For HyperCore 700R specifications for HyperCore 700R
    System CoreModel NumberAction
    Intel Core i5 7th Gen HC700RG7I5
    Intel Core i7 7th Gen HC700RG7I7
    Intel Core i5 10th Gen HC700RG10I5
    Intel Core i7 10th Gen HC700RG10I7
