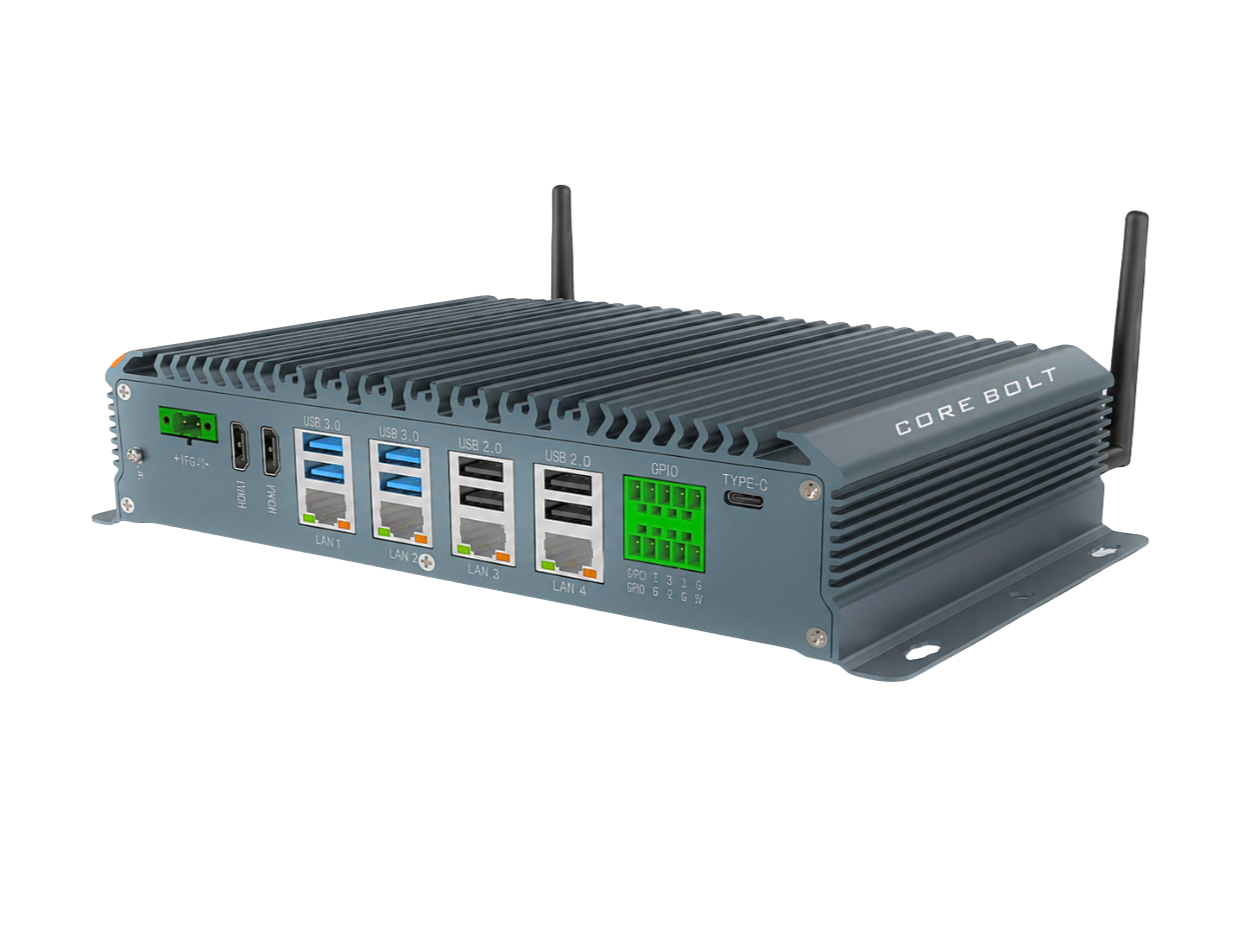

HyperCore M300X
HyperCore M300X is a high-performance industrial edge computer powered by Intel® Core™ processors, designed for machine vision, industrial automation, Industrial IoT, and intelligent transportation applications. Featuring high-speed 2.5GbE networking and advanced connectivity options, it enables reliable data acquisition, real-time processing, and seamless communication across industrial systems. Its rugged fanless design, flexible expansion capabilities, and support for demanding edge workloads make it an ideal platform for industrial networking, edge gateways, and intelligent control systems.
Compatible Modules
Intel Core®
Built For Demanding
Applications
The HyperCore M300X is engineered for high-speed connectivity and real-time industrial edge computing.
INDUSTRIAL IOT GATEWAY
WAREHOUSE AUTOMATION
SMART MANUFACTURING
INDUSTRIAL AUTOMATION
MACHINE VISION INSPECTION
INTELLIGENT TRANSPORTATION
Specifications
Technical Specifications
Compute Module — Intel® Core™ Platform
| Parameter | ||
|---|---|---|
| CPU | Intel® Core™ 7th Gen i3/i5/i7 | Intel® Core™ 10th Gen i3/i5/i7 |
| BIOS | AMI UEFI BIOS | |
| Chipset | Intel® SOC | |
| Graphic display | Intel® HD Graphics 620 | 10th Gen Intel® Hyper-GPU |
| Storage | 1× M.2 2280 Key-M slot (supports NVMe SSD adaptive) | |
| Memory | 1× SO-DIMM memory slots, supporting DDR4 SO-DIMM slots, maximum support of 32 GB | 2× SO-DIMM memory slots, supporting dual-channel DDR4 SO-DIMM memory slots, maximum support of 64 GB |
| Operating System | Windows 10 | Linux operating system | Windows 10 | Windows 11 | Linux operating system |
I/O Interfaces

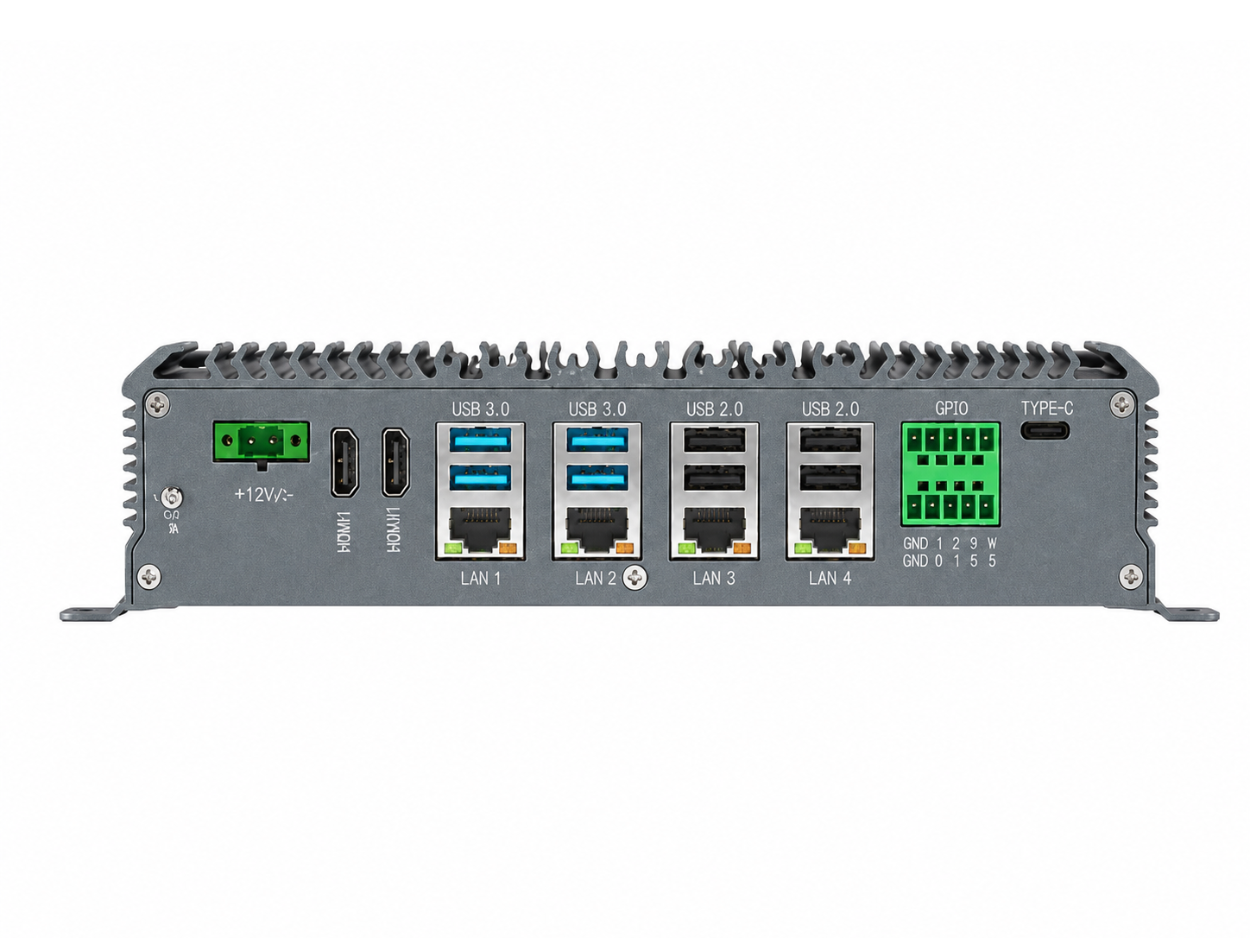

| Interface | Specification |
|---|---|
| Ethernet | 4× Intel® I225 Gigabit Ethernet ports, supporting up to 2.5GbE transmission specifications, and supporting Wake-on-LAN/PXE. |
| USB | 4× USB 2.0 ports, 4× USB 3.0 ports, 1× USB Type C (for data transmission) |

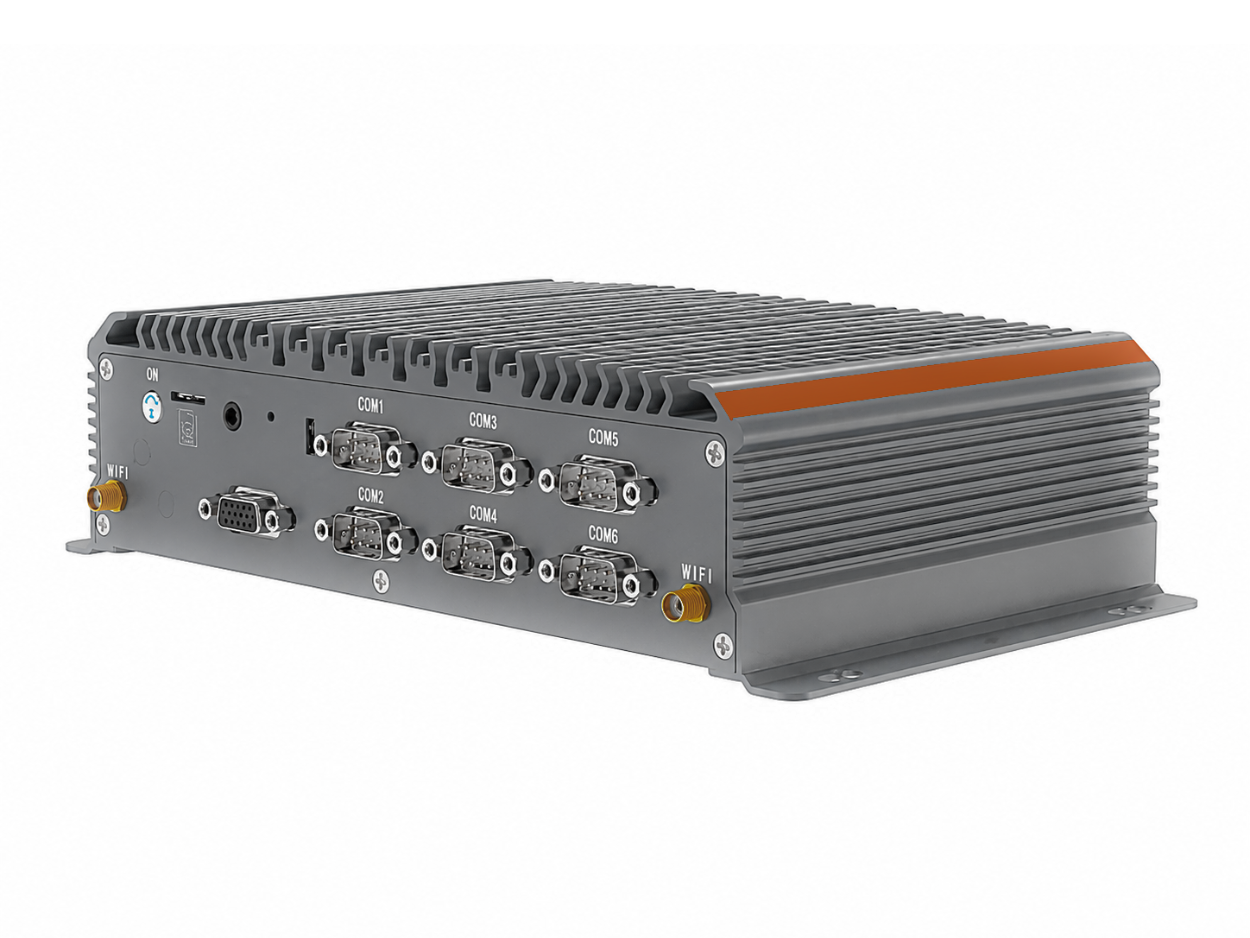

| Serial Ports | 6× DB9 (COM1-COM4 support RS-232/RS-485 switching, COM5-COM6 support RS-232) |
| GPIO | 1 x 8-channel GPIO socket (including terminals) |
| Video Output | 2× HDMI, 1× VGA |
| Audio | 1× Audio output/microphone voice input (integrated) |
| Watchdog | 255-level programmable seconds/minute, supports timeout interrupts or system reset |
Expansion & Storage
| Slot | Specification |
|---|---|
| Mini PCIe | 1x Mini PCI Express socket for 4G cellular module, with SIM socket |
| M.2 Key E | 1× M.2 2230 Key E socket for Wi-Fi/ Bluetooth module |
| M.2 Key M | 1× M.2 2280 Key M socket for NVMe SSD |
| SO-DIMM | 1× DDR4 SO-DIMM RAM |
Power & Control
| parameter | Specification |
|---|---|
| Power Input | 1x 2-PIN Phoenix terminal, supports 12V voltage input, optional 9-36V wide voltage input. |
| Buttons | 1x Push button switch with indicator light |
Mechanical
| parameter | Specification |
|---|---|
| Dimensions | 248.33mm×143.50mm×62.94mm |
| Mounting | Integrated Wall Mounting Bracket |
| Enclosure | Rugged Aluminium Alloy |
Environmental
| parameter | Specification |
|---|---|
| Operating Temperature | -10℃ to 60℃ |
| Humidity | 5 % – 95 % non-condensing |
| Storage Temp | -20℃ to 75℃ |
Package Contents & Accessories
| Packing List | |
|---|---|
| Main Unit | HyperCore M300X |
| Terminal Connector | DFMC 1,5/7-ST-3,5 Phoenix Terminal |
| Mounting | Screws for Integrated Wall-Mount Brackets |
| Standard Accessories | |
| Power Adapter | Meanwell GST 90W AC-DC Power Adaptor (12V, 7.5A) |
| Power Cable |
|
| Optional Accessories | |
| Wi‑Fi Module |
|
| 4G LTE Module | Quectel EG25-G 4G LTE Cat 4 Global Band Mini PCIe Module |
| Wi‑Fi Antenna | 2.4GHz - 5GHz 5dBi Omni Wi-Fi Antenna with SMA Connector |
| 4G Antenna | 600-6000MHz 5dBi Omni 4G Antenna with SMA Connector |
| Storage | NVMe/SATA 2280 M.2 SSD 128GB /256GB /512GB /1TB /2TB /4TB |
| Memory | DDR4 SO-DIMM RAM 4GB /8GB /16GB /32GB |
Ordering Information
| System Core | Model Number | Action |
|---|---|---|
| Intel Core i3 7th Gen | HCM300XG713 | |
| Intel Core i5 7th Gen | HCM300XG7I5 | |
| Intel Core i7 7th Gen | HCM300XG7I7 | |
| Intel Core i3 10th Gen | HCM300XG10I3 | |
| Intel Core i5 10th Gen | HCM300XG10I5 | |
| Intel Core i7 10th Gen | HCM300XG10I7 |
