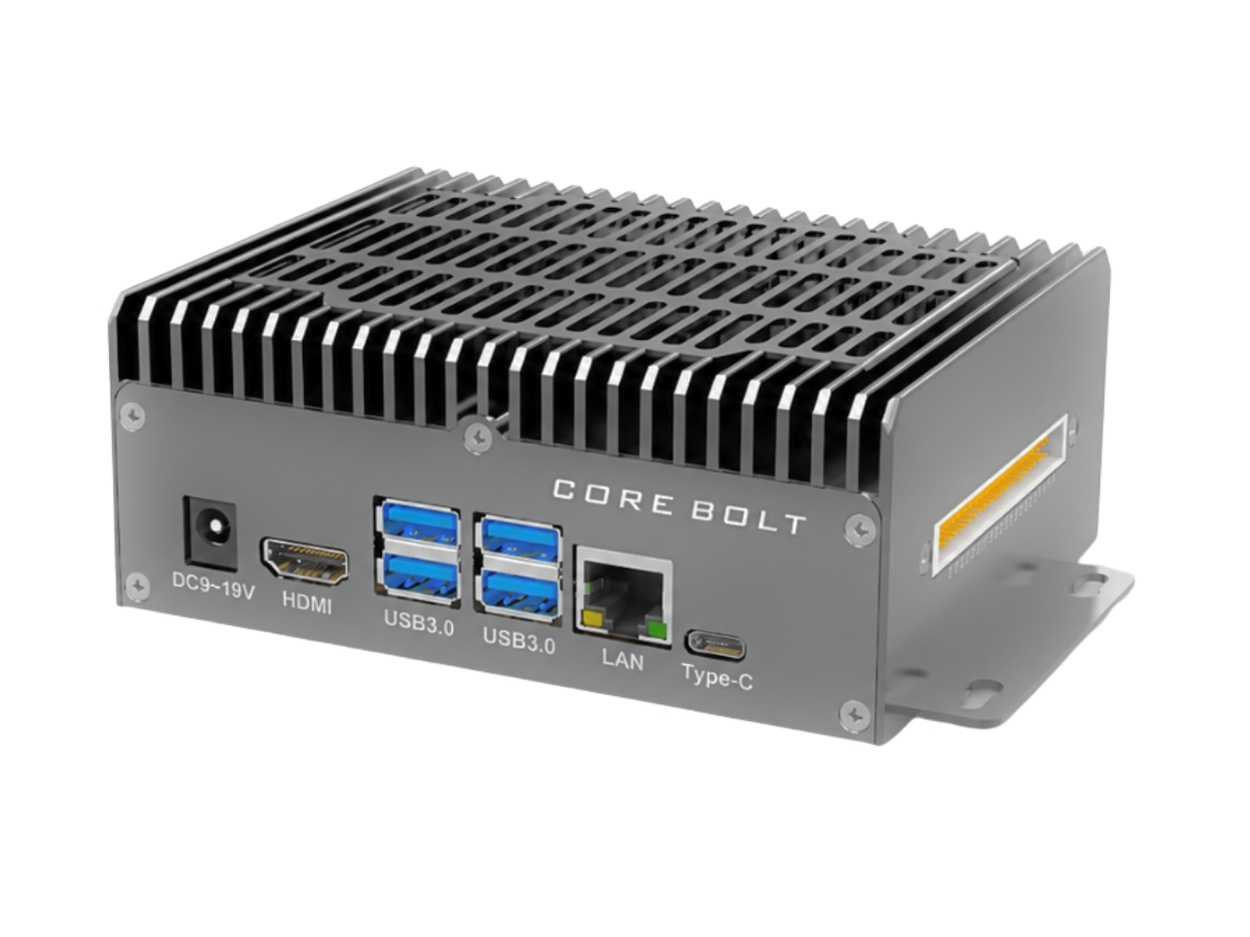

HyperEdge M100S
HyperEdge M100S is a compact AI edge computer powered by NVIDIA Jetson Orin Nano and Orin NX modules, delivering up to 157 TOPS of AI performance for intelligent edge computing applications. Designed for machine vision, robotics, video analytics, smart manufacturing, and autonomous systems, it enables real-time AI inference and advanced data processing at the edge. Optimized for space-constrained deployments, its compact footprint and scalable architecture make it an ideal platform for organizations seeking reliable and cost-effective edge AI solutions.
Built For Demanding
Applications
The HyperEdge M100S is engineered for compact AI computing and real-time edge intelligence in space-constrained deployments.
VIDEO ANALYTICS
AUTONOMOUS MOBILE ROBOTS
SMART MANUFACTURING
INTELLIGENT TRANSPORTATION
MACHINE VISION
ROBOTICS & DRONES
Specifications
Technical Specifications
Computer Module — Nvidia Jetson Orin Nx
| Parameter | Orin Nx 8gb Variant | Orin Nx 16gb Variant |
|---|---|---|
| AI Performance | 70 TOPS (Super Mode:117 TOPS) | 100 TOPS (Super Mode:157 TOPS) |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | |
| CPU | 6-core Arm® Cortex® A78AE v8.2 64bit (1.5MB L2 + 4MB L3) | 8 core Arm® Cortex® A78AE v8.2 64bit (2MB L2 + 4MB L3) |
| Memory | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 | |
| eMMC | Supports external NVMe | |
Computer Module — Nvidia Jetson Orin Nano
| Parameter | Orin Nano 4gb Variant | Orin Nano 8gb Variant |
|---|---|---|
| AI Performance | 20 TOPS (Super Mode: 34 TOPS) | 40 TOPS (Super Mode: 67 TOPS) |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit (1.5MB L2 + 4MB L3) | |
| Memory | 4GB 64bit LPDDR5 34GB/s | 8GB 128bit LPDDR5 68GB/s |
| Video Encode | 1080p30 supported via CPU cores | |
| Video Decode | 1× 4K60 | 2× 4K30 | 5× 1080p60 | 11× 1080p30 | |
| eMMC | Support external NVMe | |

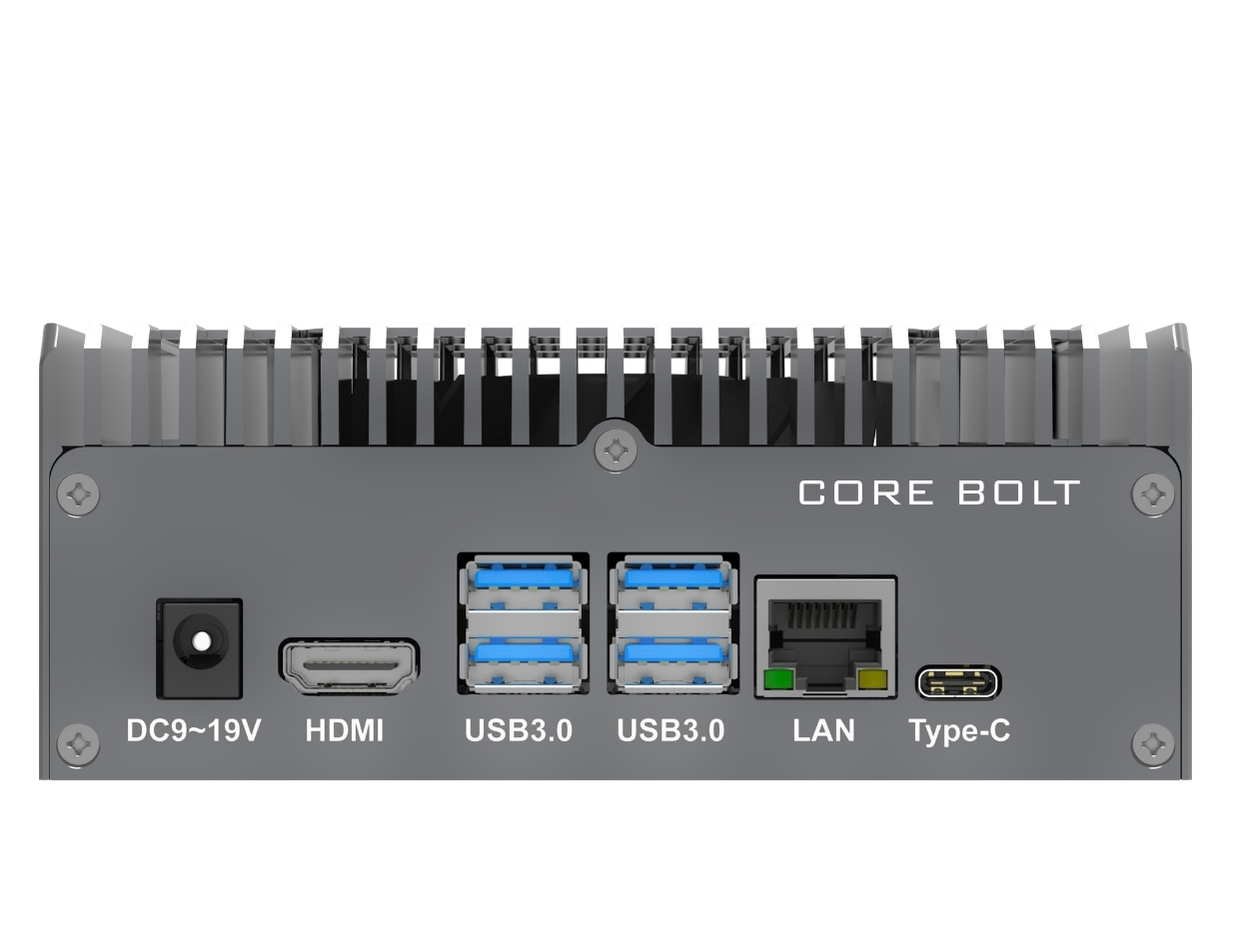

I/O Interfaces
| Interface | Specification |
|---|---|
| Ethernet | 1 × RJ45 Gigabit Ethernet |
| USB | 4 × USB 3.2 Type-A |
| Serial Ports | 1 × UART |

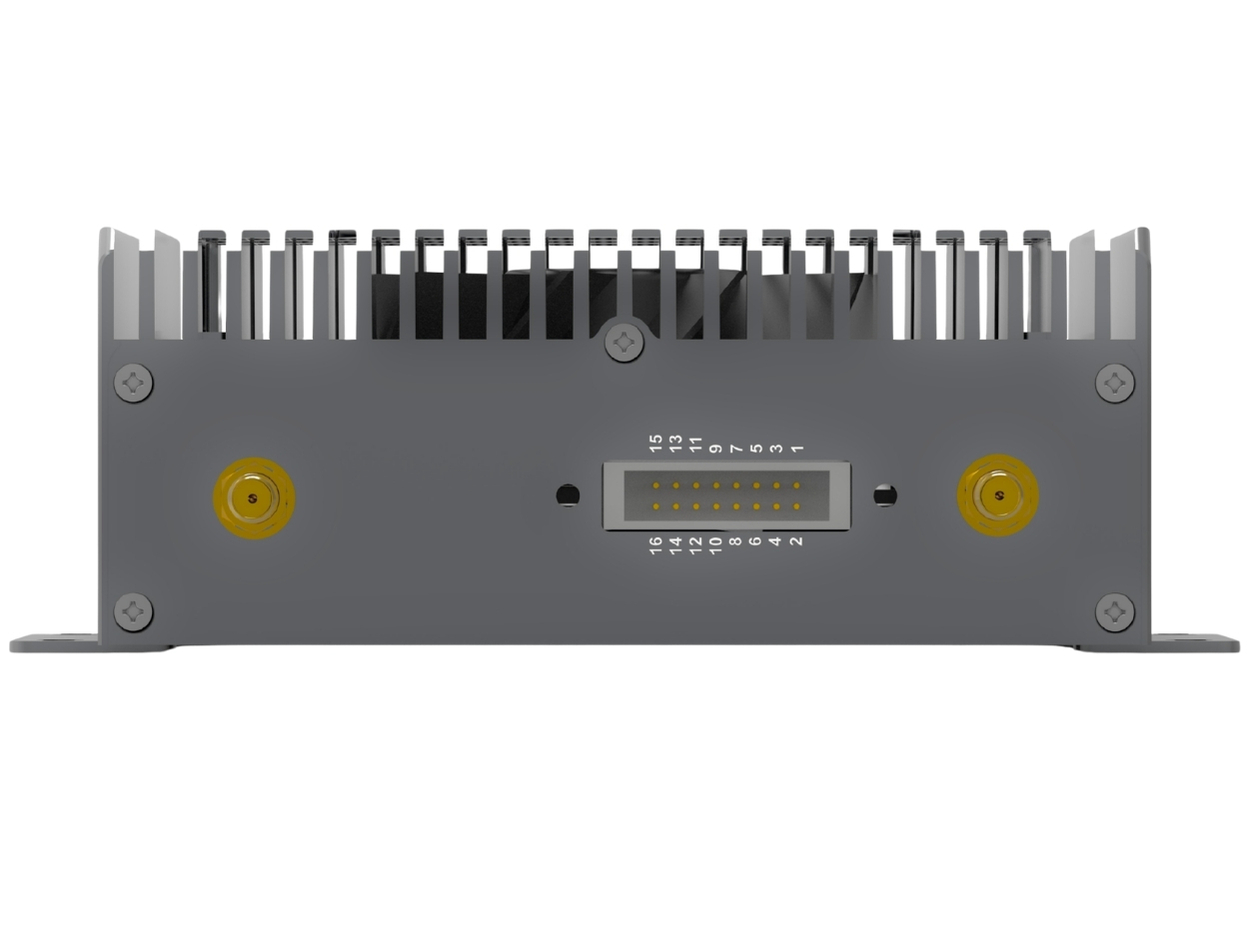

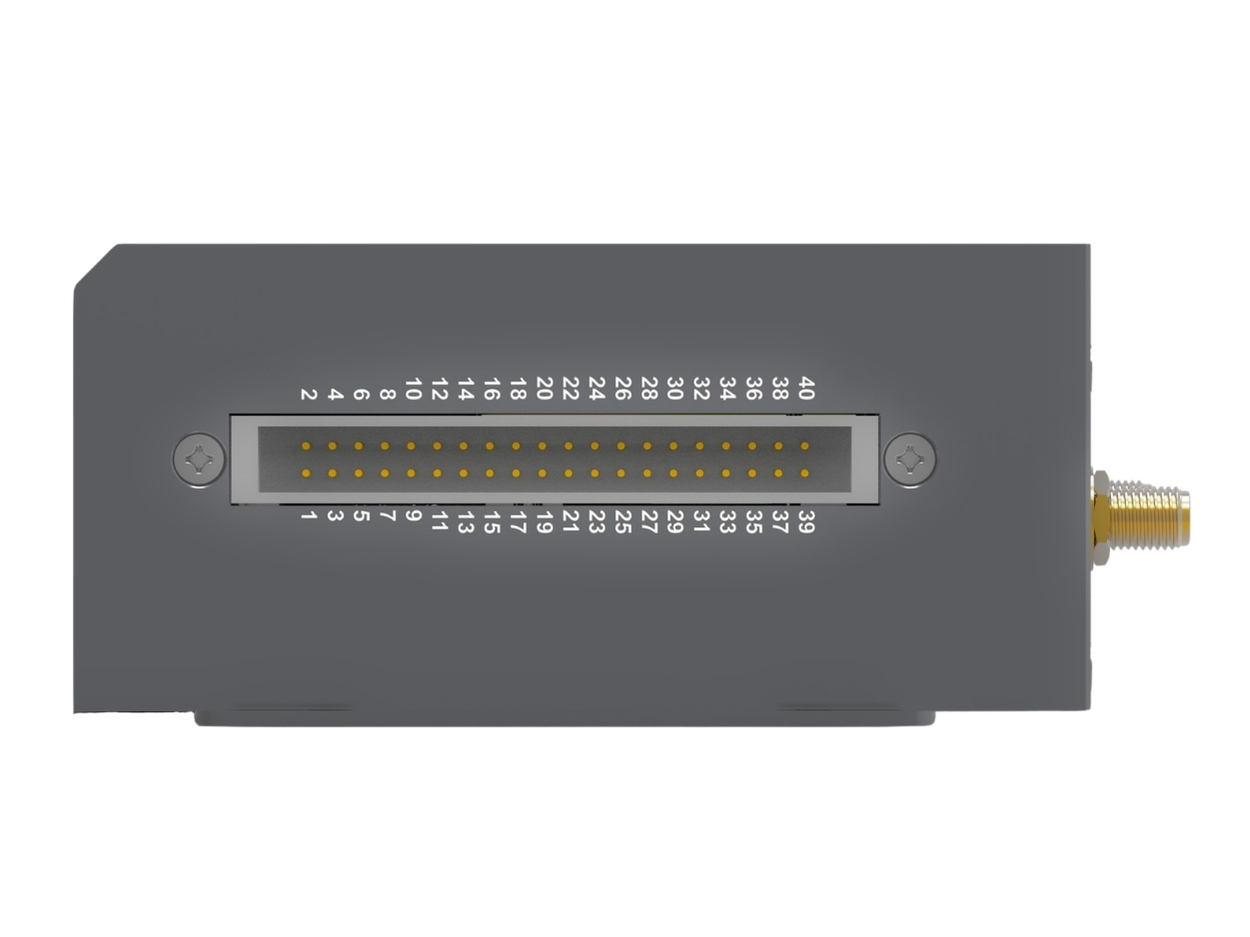

| GPIO | 40-Pin (UART, SPI, 12S, 12C, PWM, GPIO), 12-Pin control signal Interface |
| USB OTG | 1× USB OTG 3.2 (Type-C) |
| RTC | 1× Real-Time Clock |
| Video Output | 1× HDMI |
Expansion & Storage
| Slot | Specification |
|---|---|
| M.2 Key E | 1× M.2 2230 Key E socket for Wi-Fi/ Bluetooth module |
| M.2 Key M | 1× M.2 2280 Key M socket for NVMe SSD |
Power & Control
| Parameter | Specification |
|---|---|
| Power Input | 9–19 VDC |
| Power Interface | DC Barrel Connector |
Mechanical
| Parameter | Specification |
|---|---|
| Dimensions | 131mm × 100mm × 52 mm |
| Mounting | Wall Mount |
| Enclosure | Rugged Aluminum Alloy |
Environmental
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C -- Super Mode: -20°C to +55°C (Orin NX), -20°C to +60°C (Orin Nano) |
| Cooling | Active Fan Cooling |
| Humidity | 5% to 95% Non-Condensing |
Package Contents & Accessories
| Packing List | |
|---|---|
| Main Unit | HyperEdge M100S |
| Mounting | Wall Mount assembly with screws |
| Standard Accessories | |
| Power Adapter | MeanWell GST 90W AC-DC Power Adapter (12VDC/ 7.5A) |
| Power Cable | EU1-MC13 1.8M Universal Power Cable |
| Optional Accessories | |
| Wi‑Fi Module | Wireless AW-CB375NF NIC, Dual-band Wi-Fi 5, BT 5.0 |
| Wi‑Fi Antenna | 2.4 GHz - 5 GHz, 5 dBi Omni Wi-Fi Antenna with SMA connector |
| Storage | Customizable with 128GB, 256GB, 512GB, 1TB, 2TB, 4TB capacities |
Ordering Information
| System Core | Model Number | Action |
|---|---|---|
| NVIDIA Jetson Orin Nano 4GB | HEM100SONO4G | |
| NVIDIA Jetson Orin Nano 8GB | HEM100SONO8G | |
| NVIDIA Jetson Orin NX 8GB | HEM100SONX8G | |
| NVIDIA Jetson Orin NX 16GB | HEM100SONX16G |
Overview
HyperEdge M100S AI Edge Computer for Industrial AI & Edge Computing
The HyperEdge M100S is a high-performance AI Edge Computer designed for industrial AI, machine vision, robotics, autonomous systems, and advanced edge computing applications. Powered by the NVIDIA Jetson Orin platform, including Jetson Orin NX, and Jetson Orin Nano modules, it delivers powerful AI inference, accelerated computing, and real-time data processing capabilities at the edge. Built for demanding applications requiring computer vision, deep learning, AI analytics, object detection, video processing, and intelligent automation, the HyperEdge M100S provides reliable performance and scalable AI computing capabilities. Its industrial-grade architecture enables deployment in smart factories, intelligent transportation systems, robotics platforms, autonomous machines, and edge AI environments. The HyperEdge M100S AI Edge Computer is well suited for machine vision systems, industrial automation, smart surveillance, autonomous mobile robots (AMRs), automated guided vehicles (AGVs), and AI-powered inspection applications. Its advanced edge computing capabilities support real-time decision-making, predictive analytics, and intelligent system control. With powerful AI processing, flexible NVIDIA Jetson integration, and industrial-grade reliability, the HyperEdge M100S enables organizations to accelerate AI deployment and unlock the full potential of intelligent edge computing applications.
