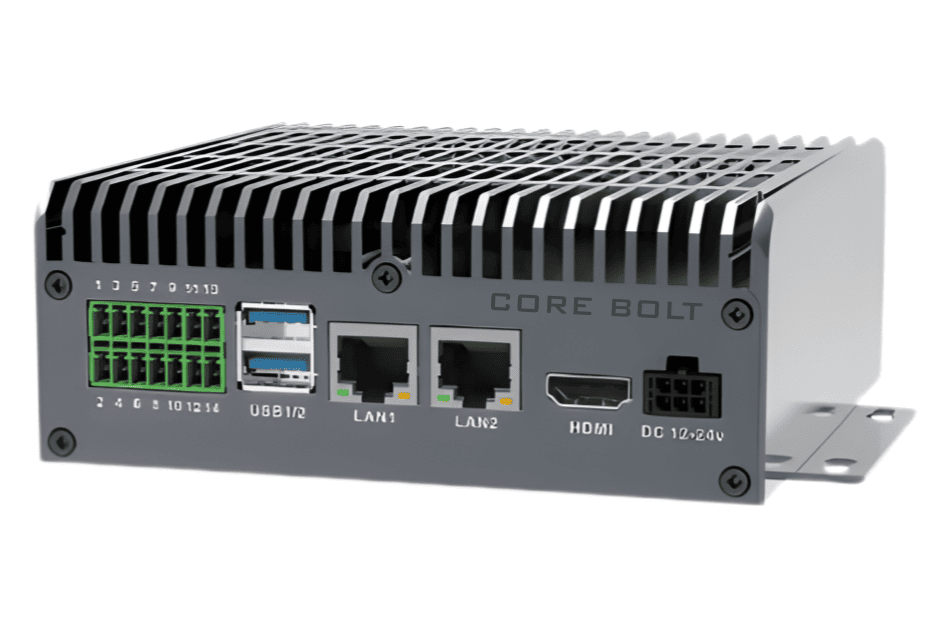

HyperEdge M500
HyperEdge M500 is a high-performance AI edge computer powered by NVIDIA Jetson AGX Orin, delivering up to 275 TOPS of AI computing performance for demanding edge intelligence applications. Designed for machine vision, industrial automation, autonomous mobile robots, smart infrastructure, and video analytics, it enables real-time AI inference and advanced decision-making at the edge. Its exceptional AI processing capability and scalable architecture make it an ideal platform for organizations deploying complex, data-intensive AI workloads.
Built For Demanding
Applications
The HyperEdge M500 is engineered for advanced AI acceleration and real-time edge intelligence for autonomous systems.
VIDEO ANALYTICS
AUTONOMOUS MOBILE ROBOTS
SMART INFRASTRUCTIRE
INDUSTRIAL AUTOMATION
MACHINE VISION
SEAPORT AUTOMATION
Specifications
Technical Specifications
Computer Module — Nvidia Jetson Agx Orin
| Parameter | Agx Orin 32gb Variant | Agx Orin 64gb Variant |
|---|---|---|
| AI Performance | 200 TOPS | 275 TOPS |
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| CPU | 8-core Arm Cortex-A78AE v8.2 64-bit (2 MB L2 + 4 MB L3) | 12-core Arm Cortex-A78AE v8.2 64-bit (3 MB L2 + 6 MB L3) |
| Memory | 32GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Video Encode | 1× 4K60 | 3× 4K30 | 6× 1080p60 | 12× 1080p30 | 2× 4K60 | 4× 4K30 | 8× 1080p60 | 16× 1080p30 |
| Video Decode | 1× 8K30 | 2× 4K60 | 4× 4K30 | 9× 1080p60 | 18× 1080p30 | 1× 8K30 | 3× 4K60 | 7× 4K30 | 11× 1080p60 | 22× 1080p30 |
| eMMC | 64GB eMMC 5.1 on SOM | |

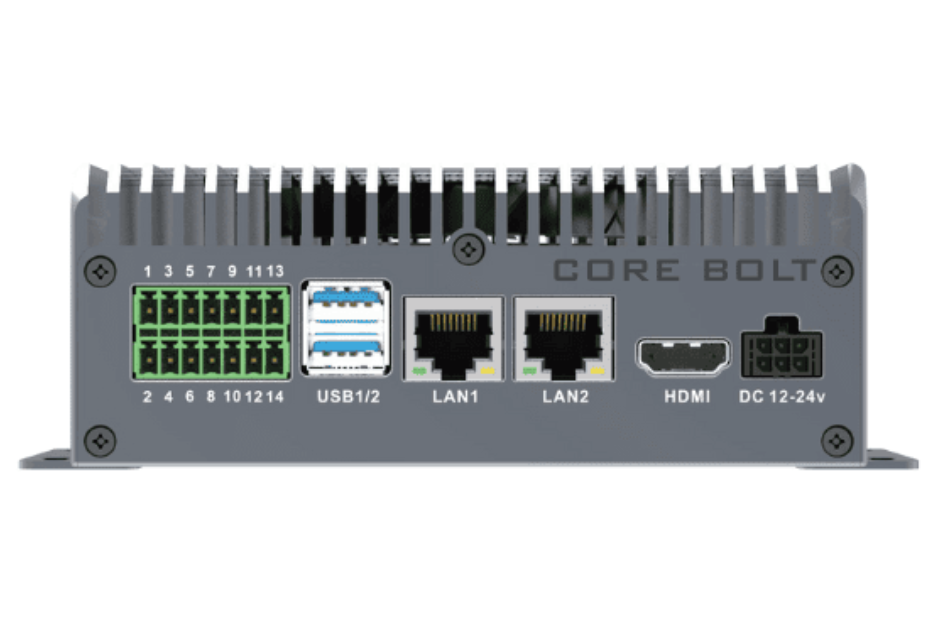

I/O Interfaces
| Interface | Specification |
|---|---|
| Ethernet | 1× RJ45 Gigabit Ethernet + 1× RJ45 10 Gigabit Ethernet, independent IP configuration |
| USB | 2x USB 3.0 Type-A (5V/2A) |
| Serial Ports | 1× RS-232, 1× RS-485, 2× CAN |
| GPIO | 2× GPIO (IN/OUT), 3.3V@1mA |
| USB OTG | 1× USB OTG 2.0 (Type-C) |
| Video | 1× HDMI |
| RTC | 1× Real-Time Clock |
Expansion & Storage
| Slot | Specification |
|---|---|
| Mini PCIe | 1x Mini PCI Express socket for 4G cellular module, with SIM socket |
| M.2 Key B | 1× M.2 3052 Key B socket for 5G cellular module, with SIM socket |
| M.2 Key E | 1× M.2 2230 Key E socket for Wi-Fi /Bluetooth module |
| M.2 Key M | 1× M.2 2280 Key M socket for NVMe SSD |
Power & Control
| Parameter | Specification |
|---|---|
| Power Input | 1× 6-pin pluggable terminal block, 12–24 VDC |

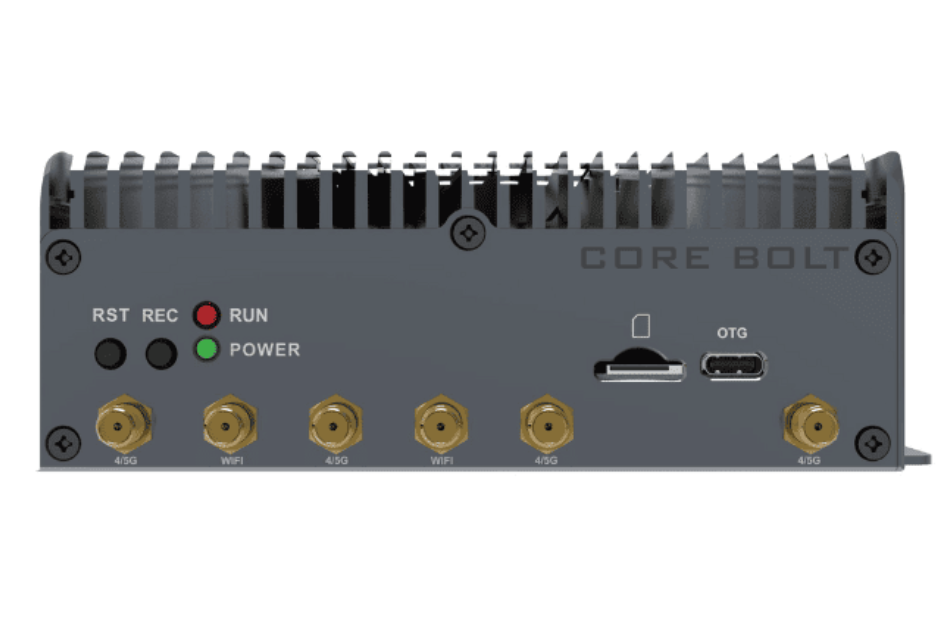

| Buttons | 2× buttons — Recovery (REC) and Reset (RST) |
| Indicators | 2× LED indicators — Run and Power status |
Mechanical
| Parameter | Specification |
|---|---|
| Dimensions | 133mm×131mm×51mm |
| Mounting | Wall Mount |
| Enclosure | Rugged Aluminum Alloy |
Environmental
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Cooling | Active Fan Cooling |
| Humidity | 5%–95% Non-Condensing |
Package Contents & Accessories
| Packing List | |
|---|---|
| Main Unit | HyperEdgee M500 |
| Mounting | Wall Mount assembly with screws |
| Power Adapter Cable | Molex 2×3 Mini-Fit Sigma 0.25M Power Adapter Cable |
| Terminal Connector | DFMC 1,5/7-ST-3,5 Phoenix Terminal Connector |
| Standard Accessories | |
| Power Adapter | MeanWell GST 90W AC-DC Power Adaptor (12 VDC/7.5A) |
| Power Cable | EU1-MC13 1.8M Universal Power Cable |
| Optional Accessories | |
| Wi‑Fi Module | Wireless AW-CB375NF NIC, Dual-band Wi-Fi 5, BT 5.0 |
| 4G LTE Module | Quectel EG25-G 4G LTE Cat 4 Global Band Mini PCIe Module |
| 5G LTE Module | Quectel RM520N-GL 5G Sub-6G GHz Global Band M.2 Module |
| Wi‑Fi Antenna | 2.4 GHz - 5 GHz, 5 dBi Omni Wi-Fi Antenna with SMA connector |
| 4G/5G Antenna | 600–6000 MHz, 5 dBi Omni 4G/5G Antenna with SMA connector |
| Storage | Customizable with 128GB, 256GB, 512GB, 1TB, 2TB, and 4TB capacities |
Ordering Information
| System Core | Model Number | Action |
|---|---|---|
| NVIDIA Jetson AGX Orin 32GB | HEM500AGXO32G | |
| NVIDIA Jetson AGX Orin 64GB | HEM500AGXO64G |
Overview
HyperEdge M500 Industrial AI Edge Computer with NVIDIA Jetson Orin
The HyperEdge M500 is a high-performance AI Edge Computer designed for industrial automation, machine vision, robotics, and intelligent edge computing applications. Powered by NVIDIA Jetson Orin it delivers powerful AI inference, accelerated computing, and real-time data processing for demanding AI workloads. Built for applications requiring computer vision, object detection, deep learning, video analytics, and intelligent automation, the HyperEdge M500 provides reliable performance and scalable edge AI capabilities. Its advanced processing architecture enables low-latency decision-making and efficient deployment in industrial and autonomous environments. The HyperEdge M500 AI Edge Computer is well suited for robotic systems, Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), smart manufacturing, industrial inspection, intelligent surveillance, and autonomous machine applications. Its powerful computing capabilities support real-time monitoring, predictive analytics, and AI-driven process optimization. With industrial-grade reliability, flexible NVIDIA Jetson integration, and advanced AI processing performance, the HyperEdge M500 enables organizations to accelerate AI deployment and unlock the full potential of intelligent edge computing across a wide range of industries.
