Edge Computers · HyperEdge Series

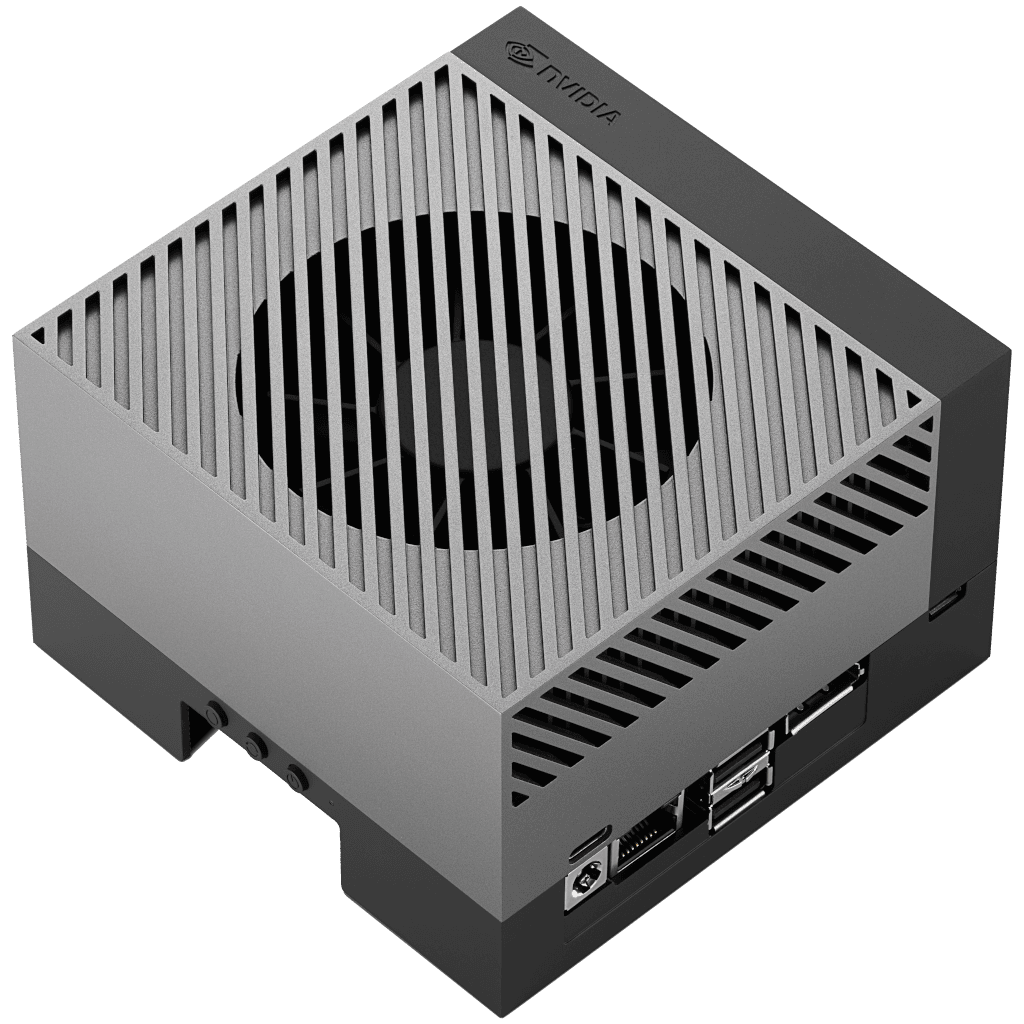

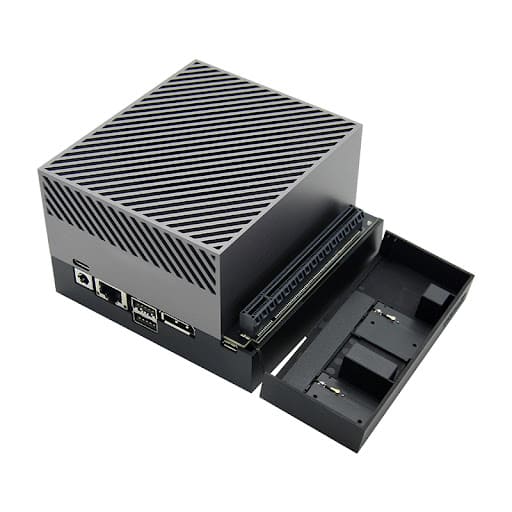

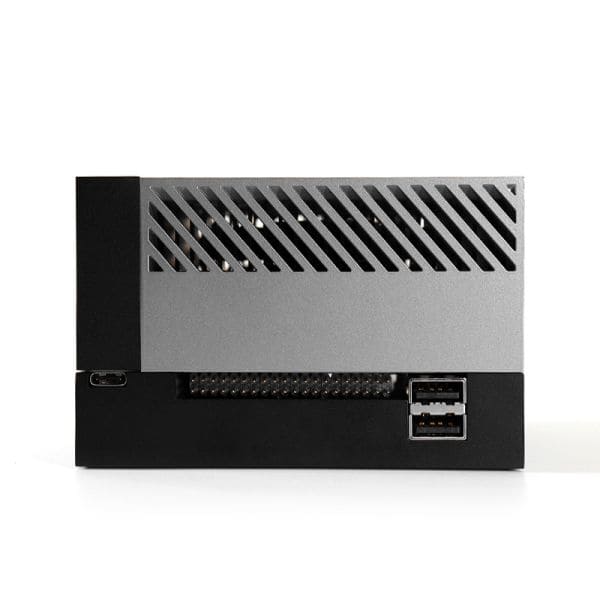

Jetson AGX Orin Developer Kit 64GB
The Jetson AGX Orin Developer Kit will contain everything needed for developers to get up and running quickly. The Jetson AGX Orin Developer Kit includes a Jetson AGX Orin module with heatsink, a reference carrier board, and a power supply. The Jetson AGX Orin Developer kit can be used to develop for all the Jetson Orin modules via emulation modes to emulate their performance. With upto 275 TOPS of AI performance and power configurable between 15 and 60 W, customers now have more than 8X the performance of Jetson AGX Xavier in the same compact form-factor for developing advanced robots and other autonomous machine products.
₹3,53,405Excl. GST
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| Processor | NVIDIA Jetson AGX Orin 64GB |
| AI computing Power | 275 TOPS |
| GPU | 64 Tensor Cores, 2048-core NVIDIA Ampere architecture GPU |
| CPU | 12-core Arm Cortex-A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 |
| Memory | 64GB 256-bit LPDDR5, 204.8GB/s |
| Video coding | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 8x 1080p60 (H.265) | 16x 1080p30 (H.265) |
| Storage / Expansion | 64GB eMMC 5.1 |
| Video decoding | 1x 8K30 (H.265) | 3x 4K60 (H.265) | 7x 4K30 (H.265) | 11x 1080p60 (H.265) | 22x 1080p30 (H.265) |
| Ethernet | 1x RJ45 Gigabit Ethernet port, 1x RJ45 Gigabit Ethernet port (independent IP) |
| Wireless network |
|
| USB | 2x USB 3.0 Type-A |
| Serial port | 1x RS232, 1x RS485 |
| CAN | 2x CAN |
| GPIO | 2x GPIO (input/output), maximum driving current 1mA with optocoupler isolation |
| Power input | 19–24V DC |
| M.2 Port | 1x M.2 Key M (PCIe NVMe 2280 SSD) (optional) |
| Key |
|
| Indicator light |
|
| Dimensions | 133mm × 131mm × 51mm |
| Operating temperature | -20℃ ~ 60℃ |
