Jetson Orin Nano SOM 8GB

    Edge Computers · HyperEdge Series

    Jetson Orin Nano SOM 8GB

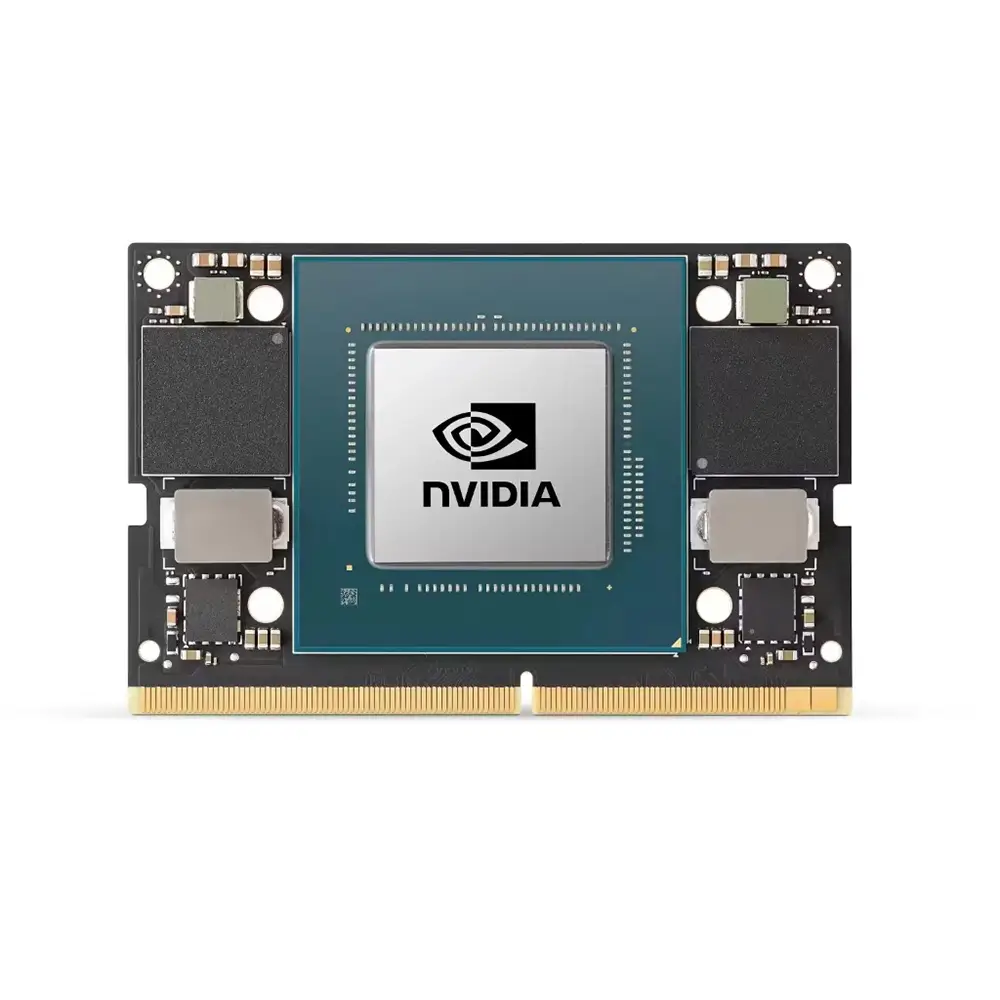

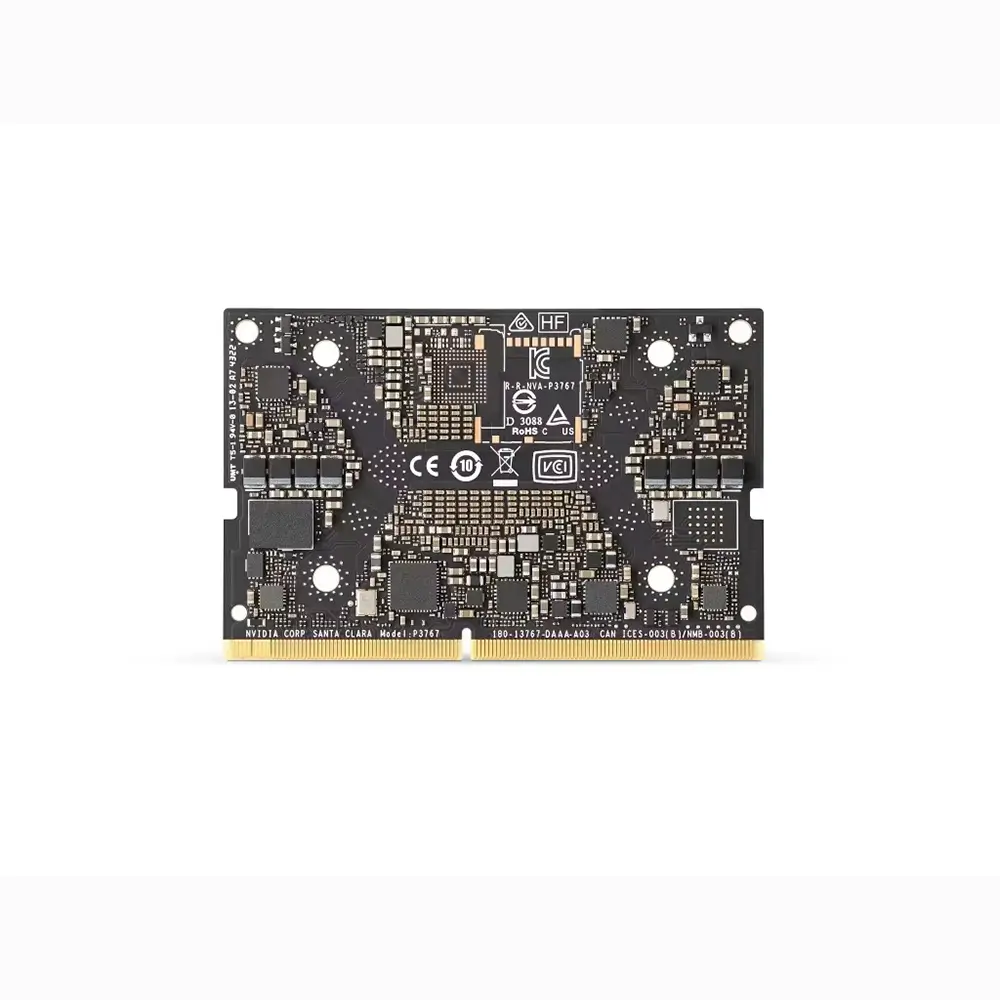

    NVIDIA Jetson Orin NanoTM-series modules deliver upto 40 TOPS of Al performance in the smallest JetsonTM form-factor, with power options between 7W and 15W. This gives you upto 80X the performance of NVIDIA Jetson Nano and sets the new standard for entry-level edge Al.

    ₹47,940Excl. GST
    Technical Details

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for Jetson Orin Nano SOM 8GB
    FeatureValue
    ProcessorNVIDIA Jetson Orin Nano 8GB
    AI Performance40 TOPS
    GPU1024-core NVIDIA Ampere architecture GPU with 32 Tensor cores
    CPU6-core Arm Cortex-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
    Memory8GB 128-bit LPDDR5, 68 GB/s
    StorageExternal NVMe support
    Video Encode1080p30, supported by 1–2 CPU cores
    Video Decode1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)
    CSI CameraUp to 4 cameras (8 via virtual channels), 8-channel MIPI CSI-2, D-PHY 2.1 upto 20Gbps
    PCIe1x4 + 3x1, PCIe 3.0 (Root port and endpoint)
    USB3x USB 3.2 (10Gbps), 3x USB 2.0
    Network1x GbE
    Display
    • 1. 1x 4K30 multi-mode, DP 1.2 (+MST)
    • 2. eDP 1.4
    • 3. HDMI 1.4
    Other I/O3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC, DSPK, PWM, GPIO
    Power consumption7W–15W

    Overview

    Jetson Orin Nano 8GB SOM price in India: Rs 47,940 excl GST. 40 TOPS compact edge AI module for robots and cameras. Buy online at Core Bolt India today.
