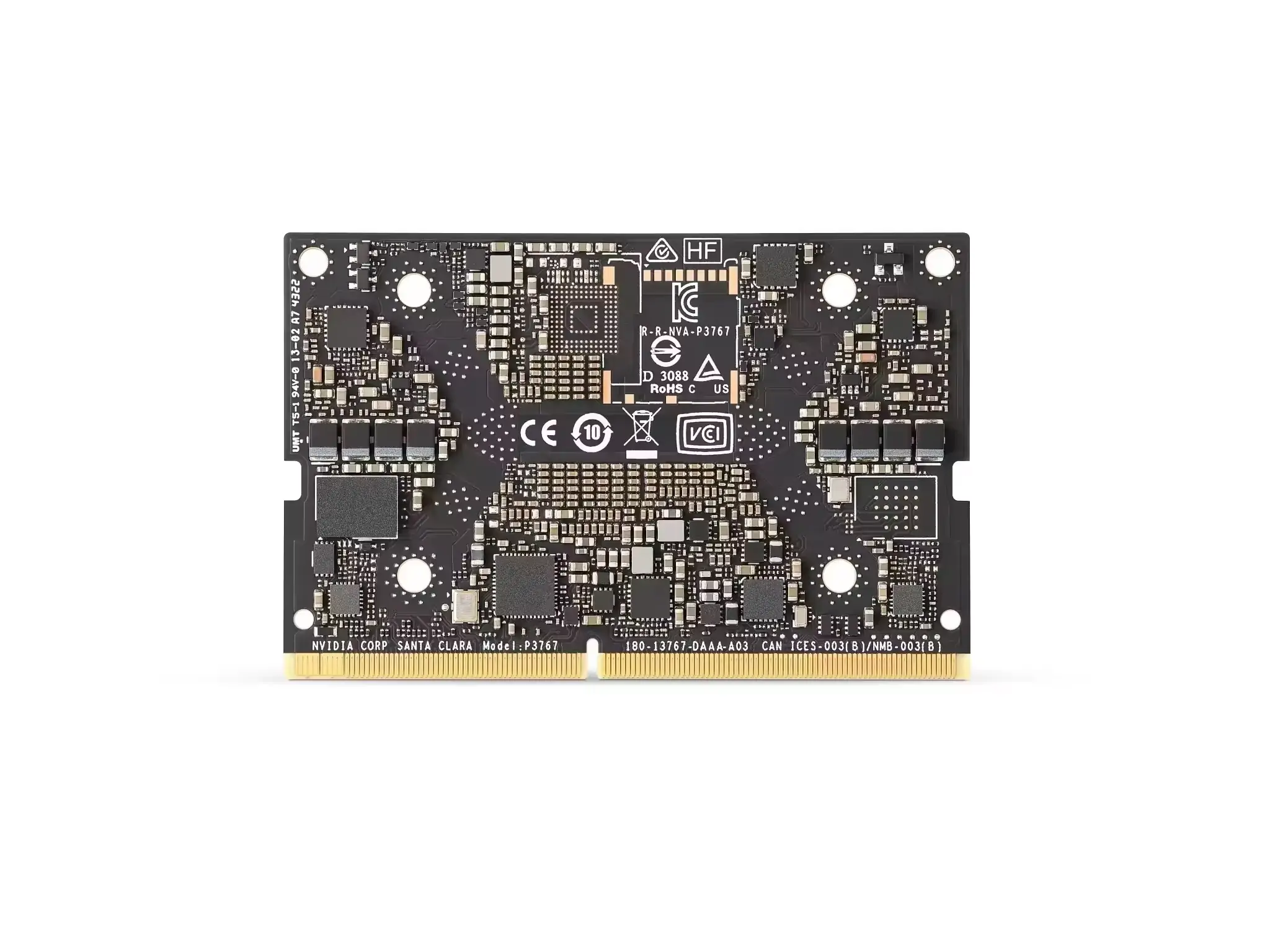

Jetson Orin NX SOM 8GB

    Edge Computers · HyperEdge Series

    Jetson Orin NX SOM 8GB

    Jetson Orin NX modules deliver upto 70 TOPS of AI performance in the smallest Jetson form factor, with power configurable between 10W and 40W. This gives you upto 5X the performance of Jetson AGX Xavier and upto 7.5X the performance of Jetson Xavier NX. Jetson Orin NX is available in 16GB and 8GB versions.

    ₹79,084Excl. GST
    Technical Details

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for Jetson Orin NX SOM 8GB
    FeatureValue
    ProcessorNVIDIA Jetson Orin NX 8GB
    AI Performance70 TOPS
    GPU1024-core NVIDIA Ampere architecture GPU with 32 Tensor cores
    CPU6-core Arm Cortex-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
    Memory8GB 128-bit LPDDR5, 102.4GB/s
    StorageExternal NVMe support
    Video Encode1x 4K60 (H.265) | 3x 4K30 (H.265) | 6x 1080p60 (H.265) | 12x 1080p30 (H.265)
    Video Decode1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265)
    CSI CameraUp to 4 cameras (8 supported via virtual channels), 8-channel MIPI CSI-2 D-PHY 2.1, upto 20Gbps
    PCIe1x4 + 3x1, PCIe 4.0 (Root port and endpoint)
    USB3x USB 3.2 Gen2 (10Gbps), 3x USB 2.0
    Network1x GbE
    Display
    • 1. 1x 8K30 multi-mode, DP 1.4a (+MST)
    • 2. eDP 1.4a
    • 3. HDMI 2.1
    Other I/O3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC, DSPK, PWM, GPIO
    Power consumption10W–20W

    Overview

    Jetson Orin NX 8GB SOM price in India: Rs 79,084 excl GST. 70 TOPS low-power edge AI module for drones and robots. In stock at Core Bolt India - order now.
