Edge Computers · HyperEdge Series

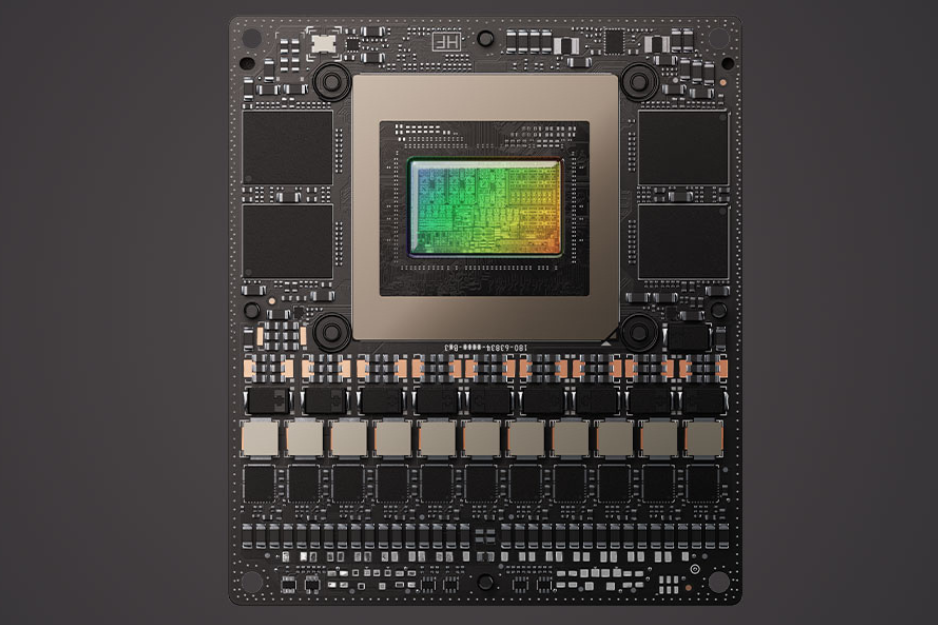

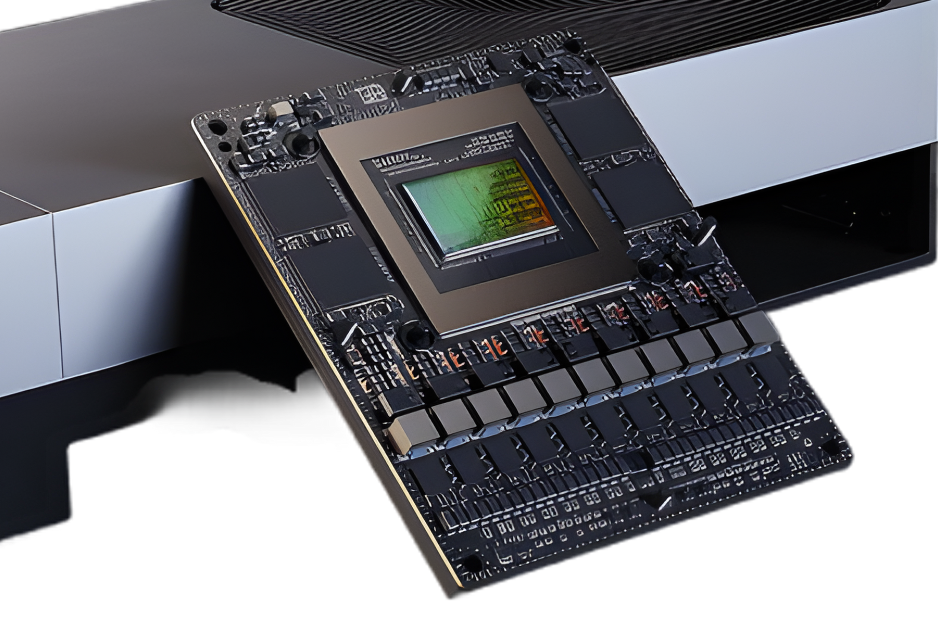

Jetson T5000 SOM 128GB

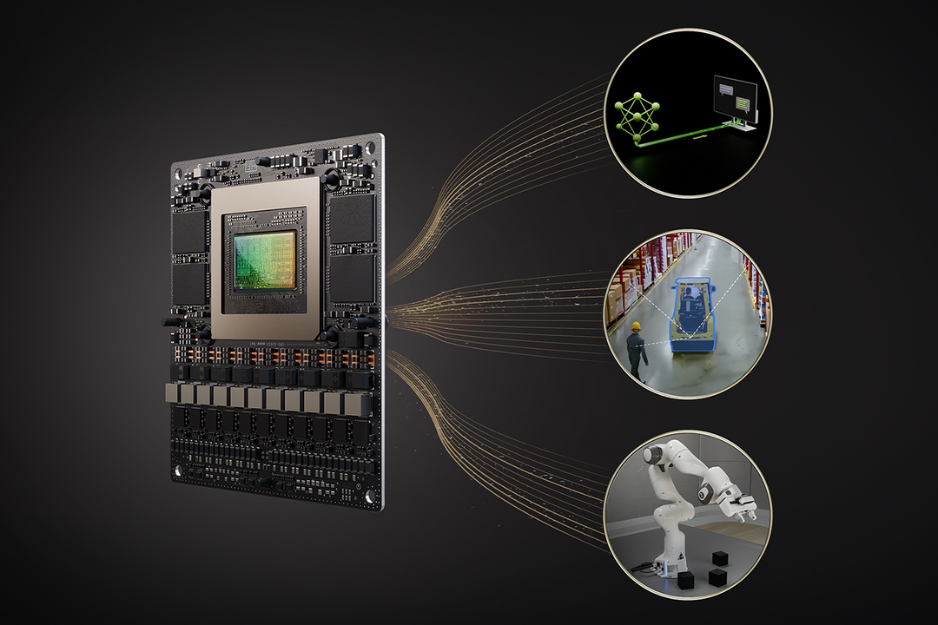

NVIDIA Jetson Thor™ series modules give you the ultimate platform for physical AI and robotics, delivering upto 2070 FP4 TFLOPS of AI compute and 128 GB of memory with power configurable between 40 W and 130 W. They deliver over 7.5x higher AI compute than NVIDIA AGX Orin™, with 3.5x better energy efficiency.
₹2,98,500Excl. GST
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| AI Performance | 2070 TFLOPS (FP4—Sparse) |
| GPU | 2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 10 TPCs |
| GPU | Max Frequency 1.57 GHz |
| CPU | 14-core Arm Neoverse-V3AE 64-bit CPU ,1 MB L2 cache per core ,16 MB shared system L3 cache |
| CPU Max Frequency | 2.6 GHz |
| Vision Accelerator | 128 GB 256-bit LPDDR5X 273 GB/s |
| Storage | Supports NVMe through PCIe ,Supports SSD through USB3.2 |
| Camera | Up to 20 cameras via HSB, Up to 6 cameras through 16x lanes MIPI CSI-2, Up to 32 cameras using Virtual Channels, C-PHY 2.1 (10.25 Gbps), D-PHY 2.1 (40 Gbps) |
| Video Encode | 6x 4Kp60 (H.265) ,12x 4Kp30 (H.265), 24x 1080p60 (H.265), 50x 1080p30 (H.265), 48x 1080p30 (H.264), 6x 4Kp60 (H.264) |
| Video Decode | 4x 8Kp30 (H.265), 10x 4Kp60 (H.265), 22x 4Kp30 (H.265), 46x 1080p60 (H.265), 92x 1080p30 (H.265), 82x 1080p30 (H.264), 4x 4Kp60 (H.264) |
| PCIe | Up to Gen5 (x8 lanes), Root port only—C1 (x1) and C3 (x2), Root Point or Endpoint—C2 (x1), C4 (x8), and C5 (x4) |
| USB | xHCI host controller with integrated PHY (upto), 3x USB 3.2, 4x USB 2.0 |
| Networking | 4x 25 GbE |
| Display | 4x shared HDMI2.1, VESA DisplayPort 1.4a—HBR2, MST |
| Power | 40W – 130W |
| MECHANICAL | 100 mm x 87 mm |
