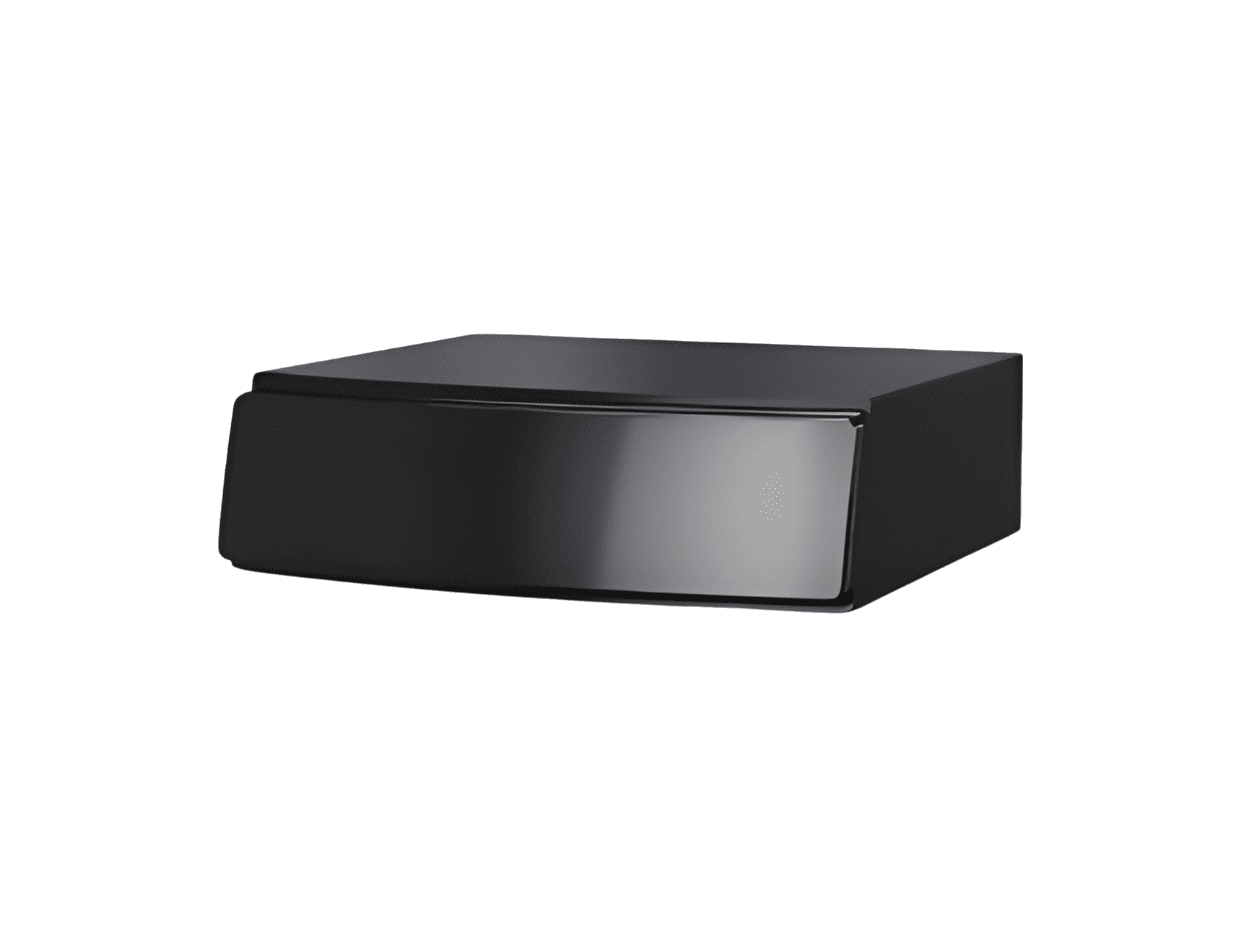

HESAI ATX
Hesai ATX LiDAR sensor for ADAS, autonomous driving and intelligent mobility — long-range 3D perception with high-resolution point cloud generation.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| FOV | 120° x 20° |
| Channels | 256 (Highest Supported Channels) |
| Ranging Capability | 230 m @10% Reflectivity |
| Point Rate | MAX 3,840,000 [Single Return] |
| Angular Resolution | 0.08° (H) x 0.05° (V) Finest |
| Power Consumption | 8 W |
| Dimensions | W 100 x D 100 x H 30 mm [Min Surface Window 25 mm] |
| Weight | 360 g |
| Protection | IP6k7 and IP6k9k |
| CERTIFICATIONS | Class 1 Eye Safety, ISO 26262 Compliant Development Process |
Overview
Hesai ATX 3D LiDAR for ADAS & Autonomous Vehicle Applications
HESAI ATX (Ask Price). The Hesai ATX LiDAR is an advanced automotive-grade 3D LiDAR sensor designed for ADAS, autonomous driving, intelligent transportation systems, and next-generation mobility applications. Its high-resolution sensing technology delivers accurate environmental perception, reliable object detection, and real-time point cloud generation for intelligent vehicle platforms. Built for applications requiring long-range object detection, 3D perception, obstacle recognition, environmental awareness, and autonomous navigation, the Hesai ATX provides dependable sensing performance in complex driving environments. Its advanced LiDAR capabilities help improve situational awareness, navigation accuracy, and vehicle safety. The Hesai ATX LiDAR is well suited for autonomous vehicles, intelligent transportation projects, smart mobility platforms, and advanced driver assistance systems. Its high-performance sensing capabilities support collision avoidance, environmental monitoring, path planning, and real-time decision-making. With precise spatial awareness, reliable sensing performance, and advanced automotive LiDAR technology, the Hesai ATX enables safer autonomous driving, enhanced ADAS functionality, and improved transportation intelligence across a wide range of mobility applications. Buy the Hesai ATX lidar sensor: long-range 3D perception with high-res point cloud for ADAS. Ask price from Core Bolt India today
