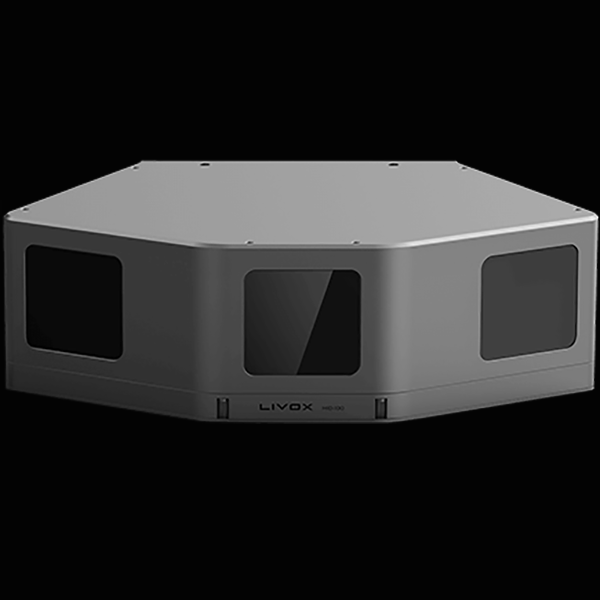

LIVOX MID-100

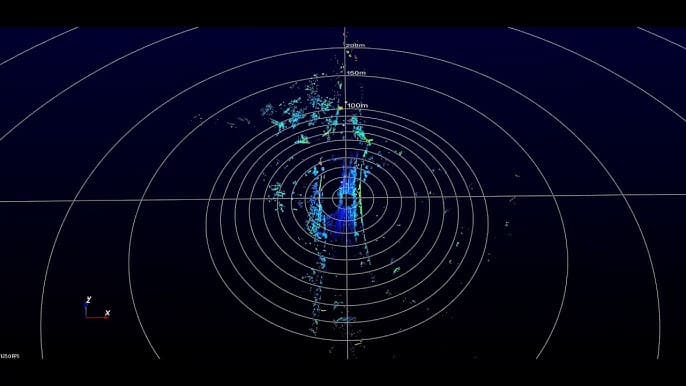

The Livox Mid-100 is a high-performance LiDAR sensor that can be used for multiple applications including autonomous driving, robot navigation, dynamic path planning, and high-precision mapping. Livox Mid-100’s unique non-repetitive scanning technology ensures a high-density point cloud, and precisely detects every detail inside its field of view (FOV). Users can check the real- time point cloud using Livox Viewer, and a software development kit (SDK) is provided to help develop customizable applications using the data acquired from the point cloud. Livox Mid-100’s high reliability ensures that it can work properly even in adverse weather conditions.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|

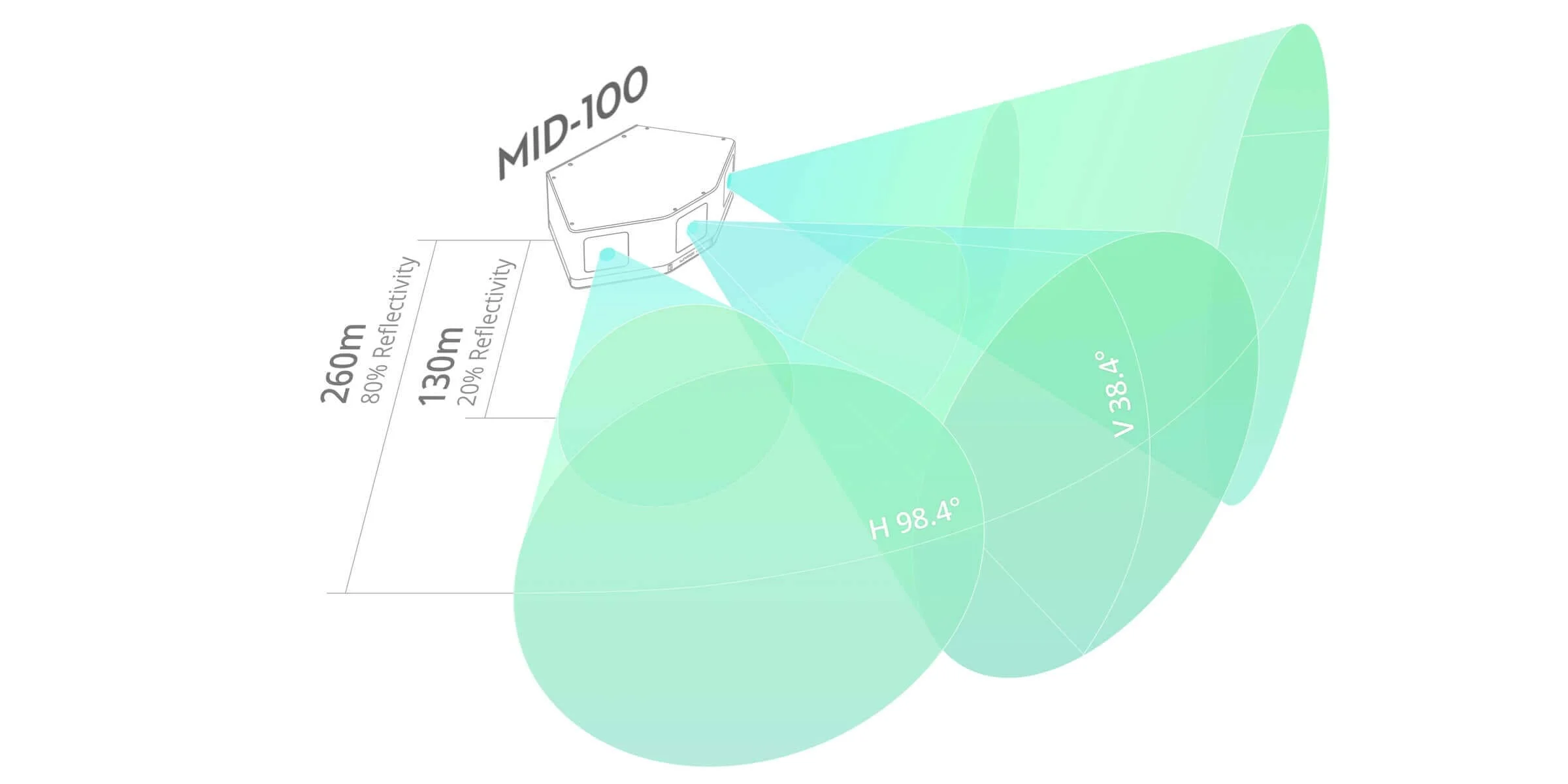

| FOV | 98.4° circular(Horizontal), 38.4° (Veritical) |
| Detection Range | 90 m @ 10% reflectivity ,130 m @ 20% reflectivity, 260 m @ 80% reflectivity |
| Dimensions | 142×70×230 mm (Mid-100) |
| Weight | Approx. 2200 g |
| Angular Accuracy | < 0.1° |
| Power | 30 W |
| Operating Temperature | -20˚C to 65˚C |
| IP Rating | IP67 |
Overview
Livox Mid-100 3D LiDAR for Robotics & Long-Range Mapping Applications
LIVOX MID-100 (Ask Price). The Livox Mid-100 LiDAR is a high-performance 3D LiDAR sensor designed for robotics, mapping, industrial automation, and intelligent mobility applications. Its advanced sensing technology delivers accurate environmental perception, real-time object detection, localization, and detailed point cloud generation for intelligent systems operating in dynamic environments. Built for applications requiring long-range object detection, SLAM, obstacle detection, collision avoidance, and autonomous navigation, the Livox Mid-100 provides reliable sensing performance and enhanced situational awareness. Its long-range perception capabilities help improve navigation accuracy, mapping quality, and operational efficiency. The Livox Mid-100 LiDAR is well suited for robotic platforms, mapping systems, autonomous machines, warehouse automation, and smart infrastructure projects. Its advanced perception capabilities support real-time environmental monitoring, path planning, mapping, and intelligent decision-making. With precise spatial awareness, dependable sensing performance, and advanced 3D LiDAR technology, the Livox Mid-100 enables intelligent systems to operate safely and efficiently across a wide range of robotics, mapping, and automation applications. Buy the Livox Mid-100 lidar sensor: wide-FoV high-density point cloud lidar for driving and maps. Ask price from Core Bolt India today.
