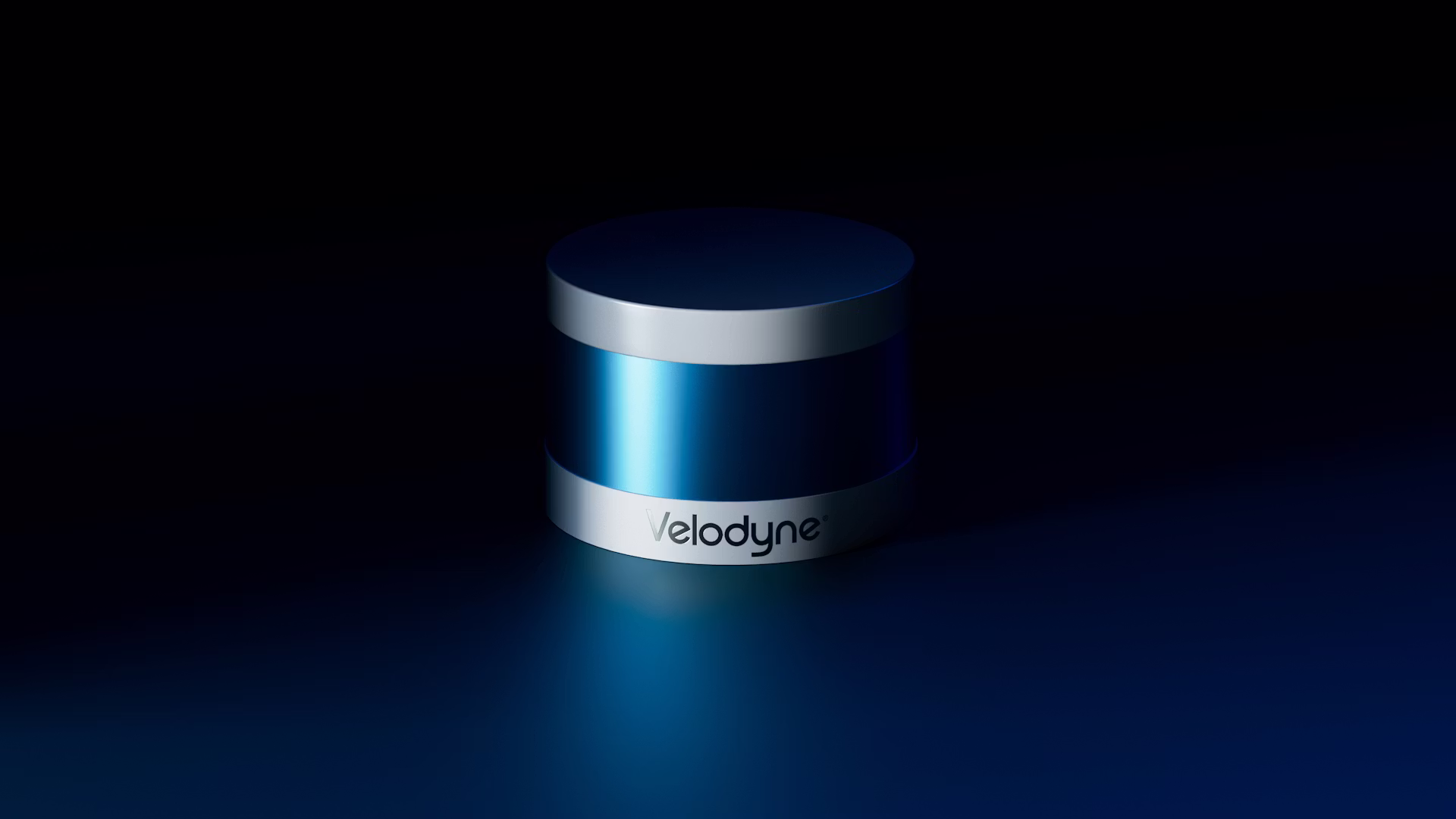

VLP-16 Puck Hi-Res
Velodyne Lidar’s Puck Hi-Res is a higher resolution version of the popular Puck and is used in applications that require increased resolution in the point cloud. The Puck Hi-Res has similar performance to the Puck with the key difference being a higher vertical resolution of 1.33°, with an accompanying 20° vertical field of view. The higher resolution enables detection of objects at longer distances at comparable frame sizes. As a result, the Puck Hi-Res provides more detailed views for applications such as autonomous vehicles, surveillance and 3D mapping/imaging.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| Channels | 16 |
| Measurement Range | 100m |
| Range Accuracy | Up to ±3 cm (Typical) |
| Field of View (Vertical) | +10.0° to -10.0° (20°) |
| Angular Resolution (Vertical) | 1.33° |
| Field of View (Horizontal) | 360° |
| Angular Resolution (Horizontal/Azimuth) | 0.1°-0.4° |
| Rotation Rate | 5 Hz – 20 Hz |
| Operating Temperature | 0°C to +60°C |
| Weight | ~750 g (without Cabling and Interface Box) |
| Power Consumption | ~8 W |
| Operating Voltage | 9 – 18 V |
| Environmental Protection | IP67 |
| Data Points Generated | ~300,000 points per second (Single Return Mode), ~600,000 points per second (Dual Return Mode) |
Overview
Velodyne VLP-16 Puck Hi-Res 3D LiDAR for Robotics & Intelligent Automation
The Velodyne VLP-16 Puck Hi-Res is a high-resolution 3D LiDAR sensor designed for robotics, industrial automation, autonomous vehicles, mapping, and intelligent transportation applications. Its advanced sensing technology provides accurate environmental perception, real-time object detection, localization, and navigation capabilities for intelligent systems. Built for applications requiring SLAM, obstacle detection, collision avoidance, and autonomous navigation, the VLP-16 Puck Hi-Res generates detailed 3D point cloud data that enhances situational awareness and supports reliable operation in dynamic environments. The Velodyne VLP-16 Puck Hi-Res is well suited for Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), robotic platforms, mapping systems, and intelligent automation projects. Its high-resolution sensing capabilities help improve object recognition, environmental monitoring, and autonomous decision-making. With reliable performance, enhanced spatial perception, and advanced 3D LiDAR capabilities, the VLP-16 Puck Hi-Res enables improved operational efficiency, safety, and navigation accuracy across a wide range of robotics and automation applications.
