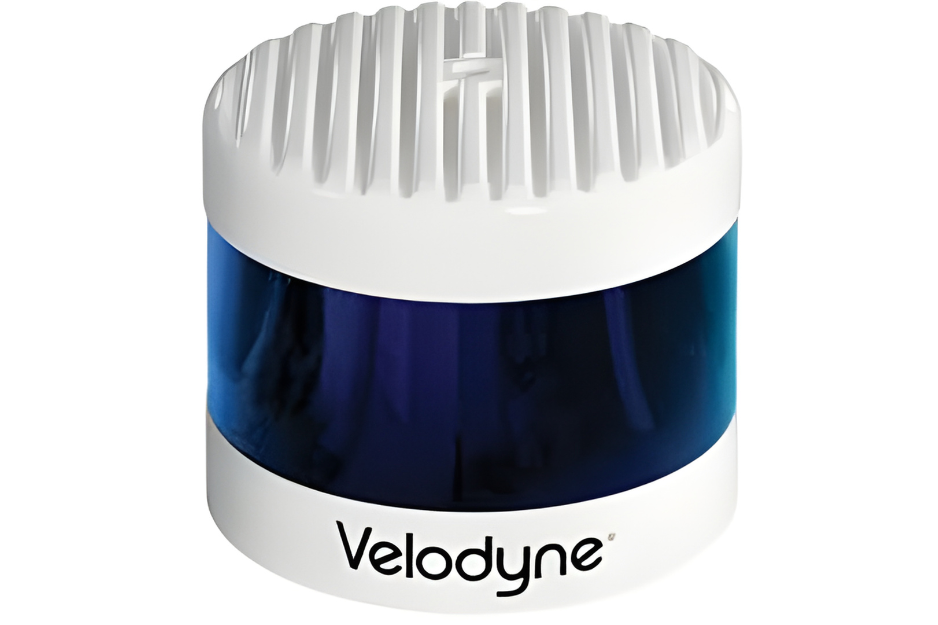

    VLS-128 Ultra Prime

    With the Alpha Prime, Velodyne Lidar delivers the optimal long-range sensor for autonomous mobility. The Alpha Prime’s world-class combination of range, image clarity and field of view detects roadway objects with reliability and precision.

    Technical Details

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for VLS-128 Ultra Prime
    FeatureValue
    Channels128
    Measurement Rangeupto 300m
    Range Accuracy±3 cm (Typical)
    Horizontal Field of View360°
    Vertical Field of View40° (-25° to +15°)
    Angular Resolution(Horizontal)0.1° to 0.4°
    Frame Rate5 Hz to 20 Hz
    Operating Temperature-20°C to 60°C
    Weight~ 3.5 kg (without cabling)
    Power Consumption23W
    Operating Voltage9 – 28 V
    Environmental ProtectionIP67
    Data Points Generated2.3M points per second (Single Return Mode) , 4.6M points per second (Dual Return Mode)
