ROBOSENSE Airy-192

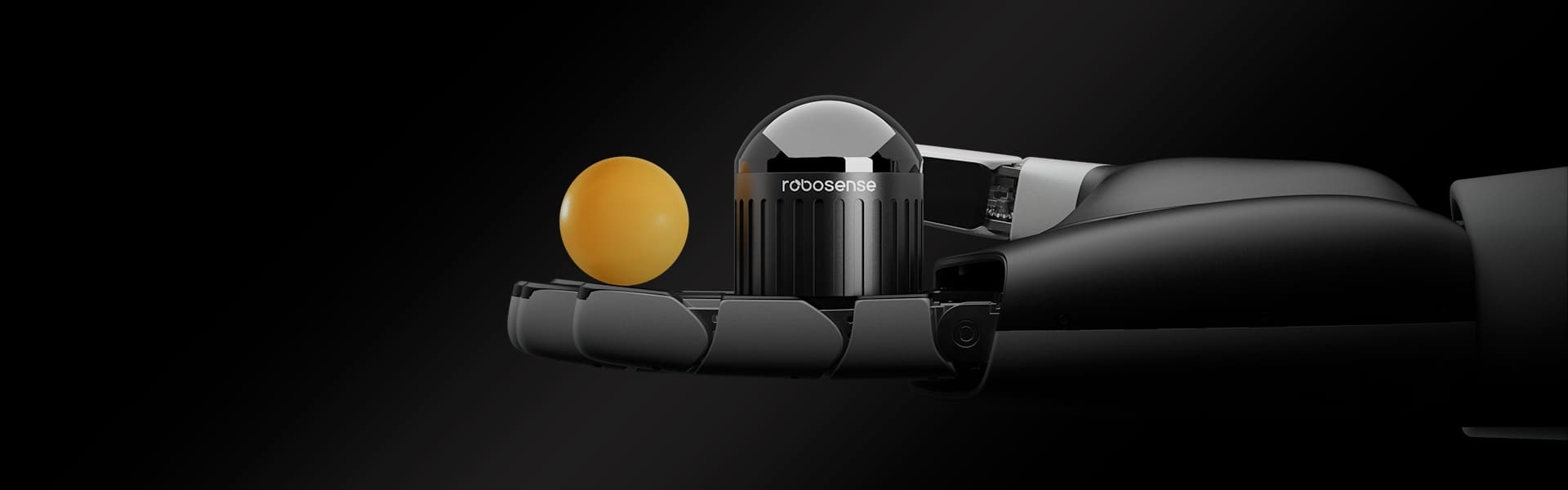

Airy is the first digital hemispherical LiDAR on the R platform, featuring a chip-based transceiver solution and a high-sensitivity digital detection scheme. Compact in size, comparable to a ping-pong ball, it delivers an ultra-wide hemispherical FOV with 360° horizontal and 90° vertical coverage, encompassing a 60-meter radius range. With 1.72 million points per second and ±1cm detection accuracy, Airy provides real-time detection of object size, contour, and distance. Its well-structured, algorithm-friendly point clouds enable exceptional performance in obstacle avoidance, mapping, and navigation tasks.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| FOV(H×V) | 360°×90° |
| High Beams | 192 beams |
| Point Per Secound | 1,720,000 pts/s |
| Number of Channels | 96 Channels |
| Range | 30m@10% |
| High precision | 1cm@1σ |
| Integrated | IMU |
| Mini size | φ60×H63 (mm) |
| Operating Temperature | -40°C ~+60°C |
| Weight | <240g |
| Ingress protection | IP67, IP6K9K |
Overview
RoboSense Airy-192 LiDAR Sensor for Robotics, Mapping & Intelligent Automation
ROBOSENSE Airy-192 (Ask Price). The RoboSense Airy-192 LiDAR is an advanced 192-beam 3D LiDAR sensor designed for robotics, autonomous navigation, mapping, and intelligent automation applications. Featuring a hemispherical perception design and high-density sensing capabilities, it delivers accurate environmental perception, real-time object detection, localization, and detailed point cloud generation for intelligent systems operating in complex environments. Built for applications requiring SLAM, obstacle detection, collision avoidance, 360-degree environmental awareness, and autonomous navigation, the RoboSense Airy-192 provides reliable sensing performance and enhanced situational awareness. Its advanced digital LiDAR architecture helps improve navigation accuracy, mapping quality, and operational efficiency. The RoboSense Airy-192 LiDAR is well suited for robotic platforms, Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), warehouse automation systems, and intelligent mobility applications. Its advanced sensing capabilities support real-time environmental monitoring, path planning, mapping, and intelligent decision-making. With precise spatial awareness, dependable sensing performance, and advanced 3D LiDAR technology, the RoboSense Airy-192 enables intelligent systems to operate safely and efficiently across a wide range of robotics and autonomous navigation applications. Buy the RoboSense Airy-192 lidar sensor: 192-beam hemispherical digital lidar, 360deg x 90deg FoV. Ask price from Core Bolt India today.
