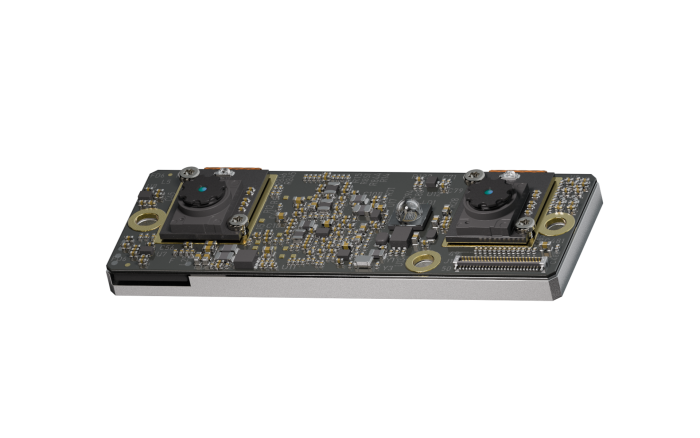

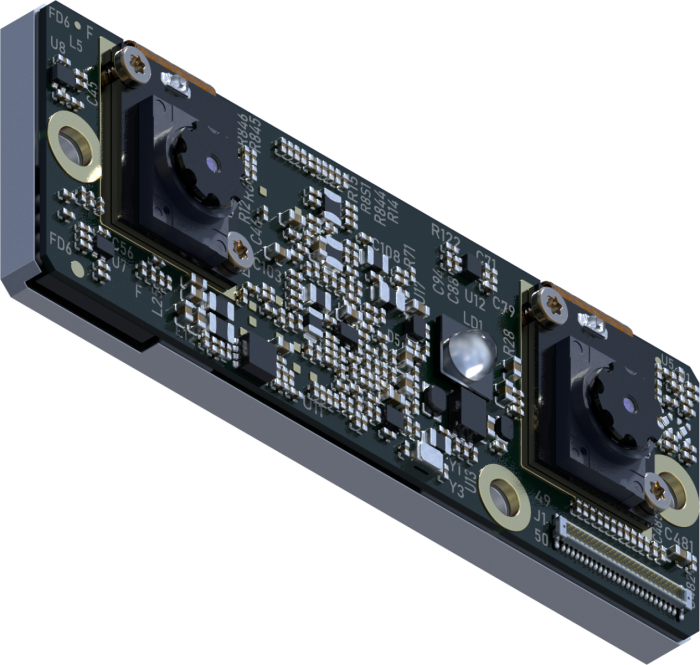

Intel RealSense ID Solution F500
The RealSense ID solution is ready-to-use, purpose-built biometrics solution that can get you up and running in minutes. Only RealSense delivers ISO 30107-3 Presentation Attack Detection Level 2 certification, NIST-verified accuracy at 99.77% for 1:1 verification, and advanced biometrics capabilities like person-detection and tracking in a single, unified platform that’s ¼ the size of a business card.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| Product Name | RealSense ID Pro F500 Module |
| Product MMID | 99D9A5 (Label F500A) |
| Authentication Type | Facial Authentication |
| Easy Enrollment | On-Device or From an Image |
| Authentication Time | <300 ms |
| Presentation Attack Detection | ISO/IEC 30107-3 Level 2 |
| False Acceptance Rate (FAR) | 1 in 1,000,000 |
| True Acceptance Rate (TAR) | 99.87% |
| Spoof Acceptance Rate (SAR) | <0.1% |
| Face Capacity | Up to 10,000 Users |
| Processing | On-Device AI |
| Security | AES-256 Encryption |
| Storage | Encrypted Face Templates Only (No Image Storage) |
| Typical Operating Power | 1.5 W |
| Host Interfaces | UART, USB 2.0 |
| Dimensions | 49.8 × 18 × 4.4 mm |
| Weight | 8.8 g |
| Authentication Range | 0.3 m to 1.5 m |
| Anti-Spoofing Range | 0.3 m to 1.3 m |
| Ambient Light Range | 0 to 50,000 lux |
| Storage Temperature | -30°C to +70°C |
| Operating Temperature | 0°C to +55°C |
| Applications | Access Control, ATMs, Kiosks, POS Systems, Smart Locks |
