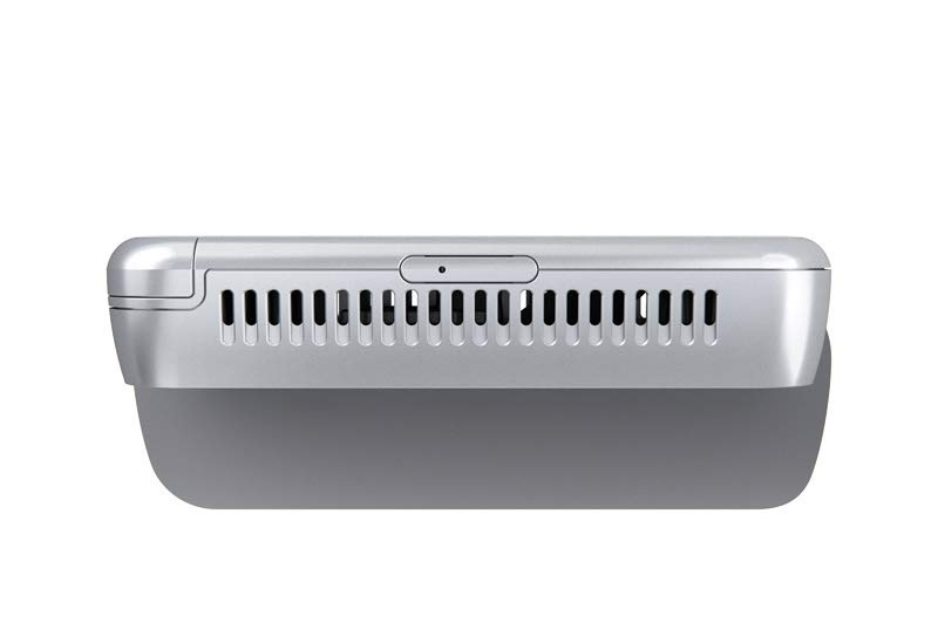

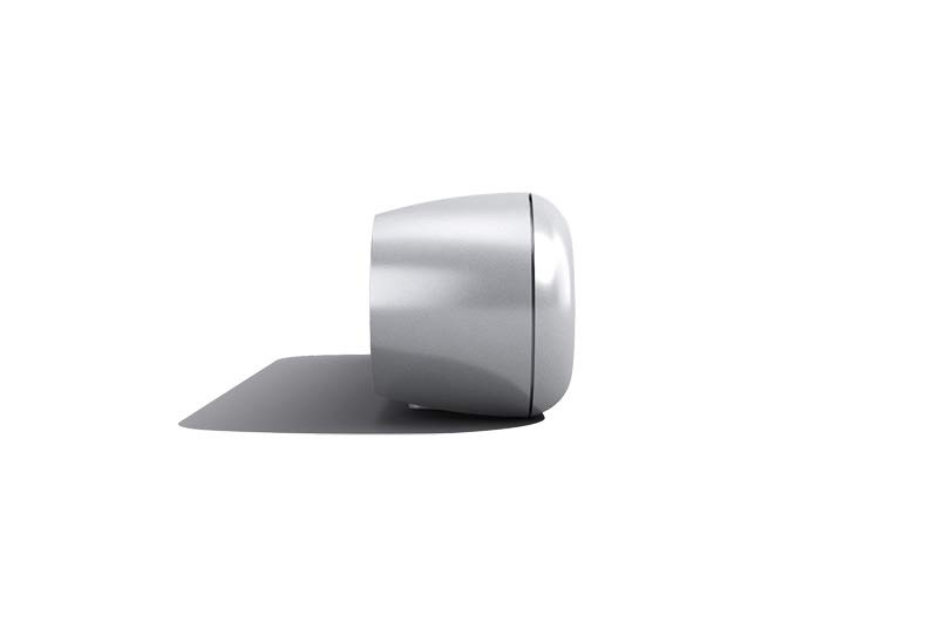

Intel RealSense Depth Camera D415
The D415 is a USB-powered depth camera and consists of a pair of depth sensors, RGB sensor, and infrared projector. It is ideal for makers and developers to add depth perception capability to their prototype development.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| Image Sensor | OmniVision OV2740 |
| RGB Sensor Resolution | 1920 × 1080 |
| Active Pixels | 1920 × 1080 |
| Sensor Aspect Ratio | 16:9 |
| Image Format | 10-bit RAW |
| F Number | f/2.0 |
| Focal Length | 1.88 mm |
| Filter Type | IR Cut Filter |
| Focus | Fixed |
| Shutter Type | Rolling Shutter |
| Signal Interface | MIPI CSI-2, 1 Lane |
| Horizontal Field of View | 69.4° |
| Vertical Field of View | 42.5° |
| Diagonal Field of View | 77° |
| Distortion | ≤1.5% |
| Depth Technology | Stereoscopic |
| Depth Sensors | Dual Rolling Shutter Sensors |
| Depth Resolution | Up to 1280 × 720 |
| Depth Field of View (H × V) | 65° × 40° |
| Stereo Baseline | 55 mm |
| Frame Rate | Up to 90 fps |
| Emitter | Class 1 Laser |
| Interface | USB 3.1 Gen 1 |
| Ideal Range | 0.3 m to 10 m |
