RealSense™ Depth Camera D405

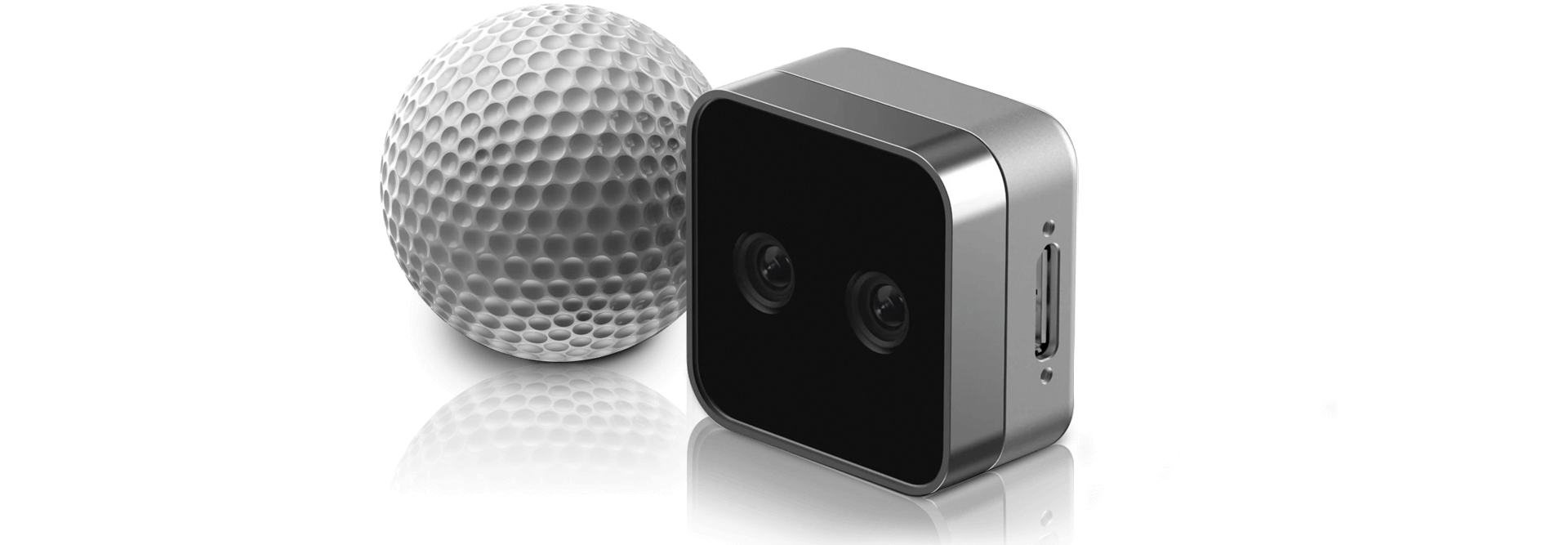

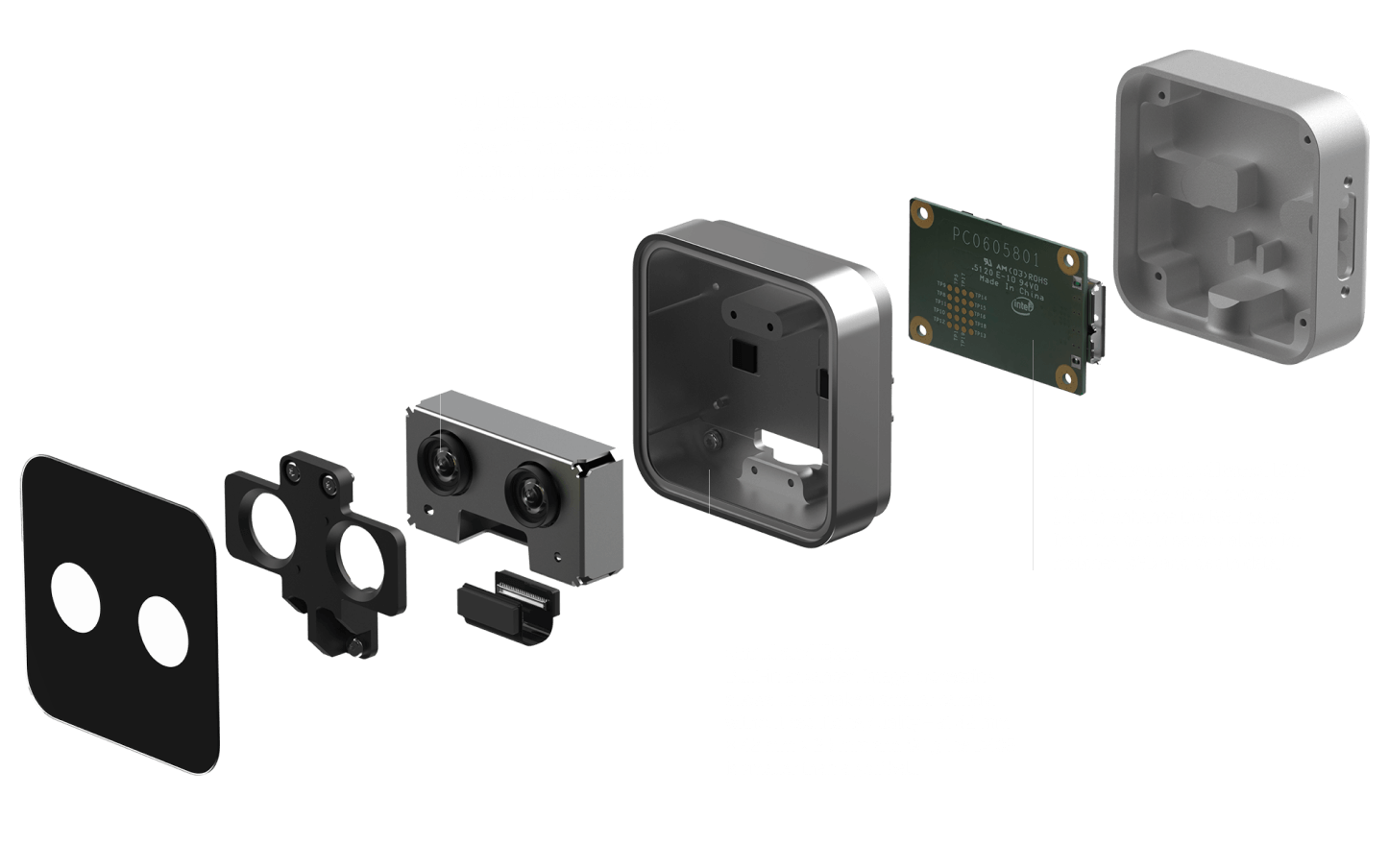

The Intel® RealSense™ Depth Camera D405 is a short-range stereo camera providing sub-millimeter accuracy for your close-range computer vision needs.The D405 operates at an ideal ange of 7 cm to 50 cm with inimum object detection own to .1 mm at 7 cm.Built-in advanced image processing allows us to make a smaller camera without sacrificing quality — at 42 mm x 42 mm x 23 mm and 60 g the D405 is smaller than a golf ball.Sing an mage Signa processor (ISP) to enhance the RGB data from the depth sensor allows for matched RGB and depth data.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| Use Environment | Indoor /Outdoor |
| Depth Technology | Stereoscopic |
| Image Sensor Technology | Global Shutter |
| Inertial Measurement Unit | None |
| Ideal Range | 7 cm to 50 cm |
| Minimum Depth Distance (Min-Z) | 7 cm @ 480p |
| Depth Accuracy | ±2% at 50 cm |
| Depth Field of View (FOV) | 87° × 58° |
| Depth Output Resolution | Up to 1280 × 720 |
| Depth Frame Rate | Up to 90 fps |
| RGB Sensor Technology | Global Shutter |
| RGB Sensor | Left Imager RGB with ISP |
| RGB Resolution | 1280 × 720 |
| RGB Frame Rate | Up to 90 fps |
| RGB Sensor FOV (H × V) | 87° × 58° |
| Operating Temperature | 0°C to 35°C (Ambient), 0°C to 55°C (Case) |
| Dimensions (Peripheral) | 42 × 42 × 23 mm |

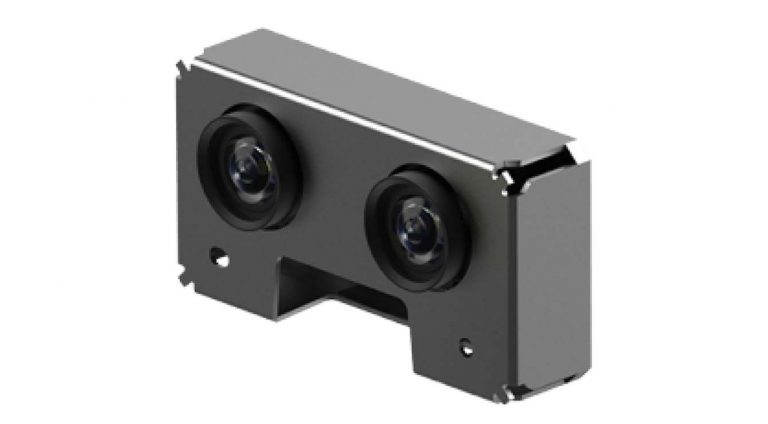

| Dimensions (Module) | 36.5 mm × 19.4 mm × 10.5 mm |
