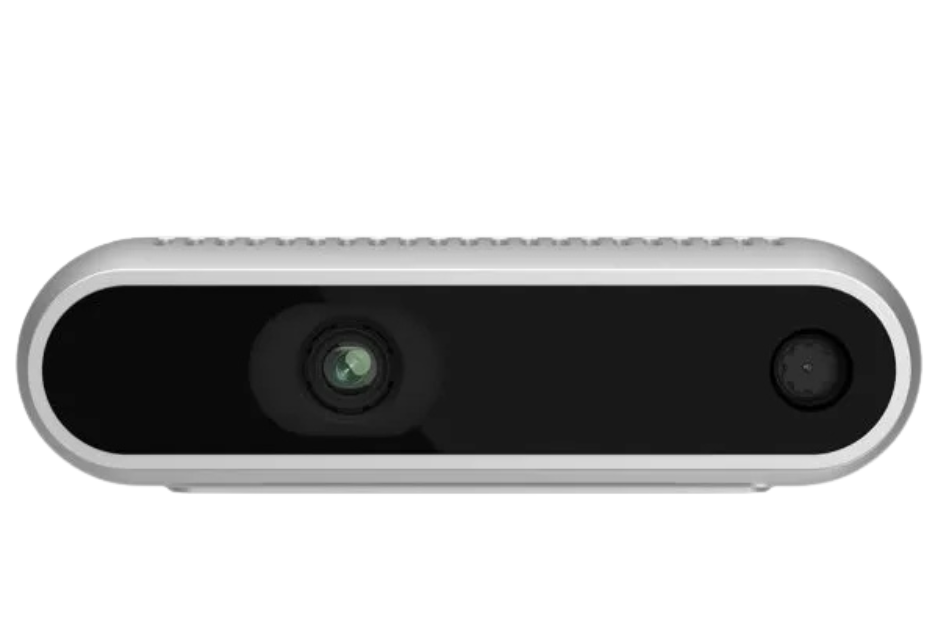

Intel RealSense Depth Camera D435f
The RealSense™ Depth Camera D435f expands our portfolio targeting the growing market of autonomous mobile robots. The D435f utilizes an IR pass filter to enhance depth noise quality and performance range in many robotic environments.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| Use Environment | Indoor /Outdoor |
| Image sensor technology | Global Shutter |
| Ideal Range | 0.3 m to 3 m |
| Depth Technology | Stereoscopic |
| Minimum Depth Distance (Min-Z) at Max Resolution | ~28 cm |
| Depth Accuracy | <2% at 2 m |
| Depth Field of View (FOV) | 87° × 58° |
| Depth output resolution | Up to 1280 × 720 |
| Depth frame rate | Up to 90 fps |
| RGB frame resolution | Up to 1920 × 1080 |
| RGB frame rate | 30 fps |
| RGB Sensor Technology | Rolling Shutter |
| RGB sensor FOV (H × V) | 69° × 42° |
| RGB Sensor Resolution | 2 MP |
| Connectors | USB‑C* 3.1 Gen 1* |
| Dimensions (L × D × H) | 90 mm × 25.8 mm × 25 mm |
| Interface | USB-C 3.1 Gen 1 |
