Automatic-Defogging-Camera[3MP]-RedFox-D3Gx

    Vision Systems & Cameras · Sensing Cameras

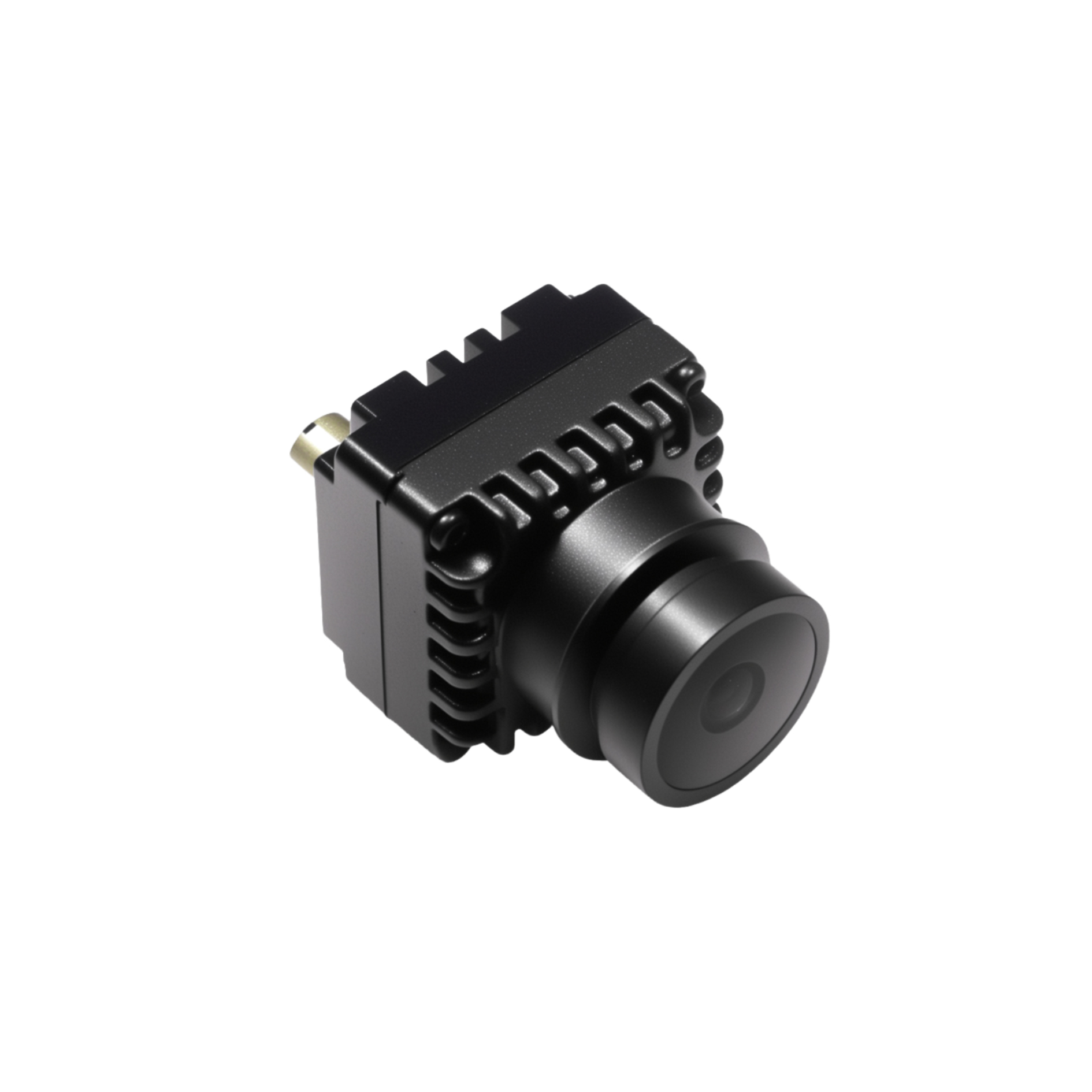

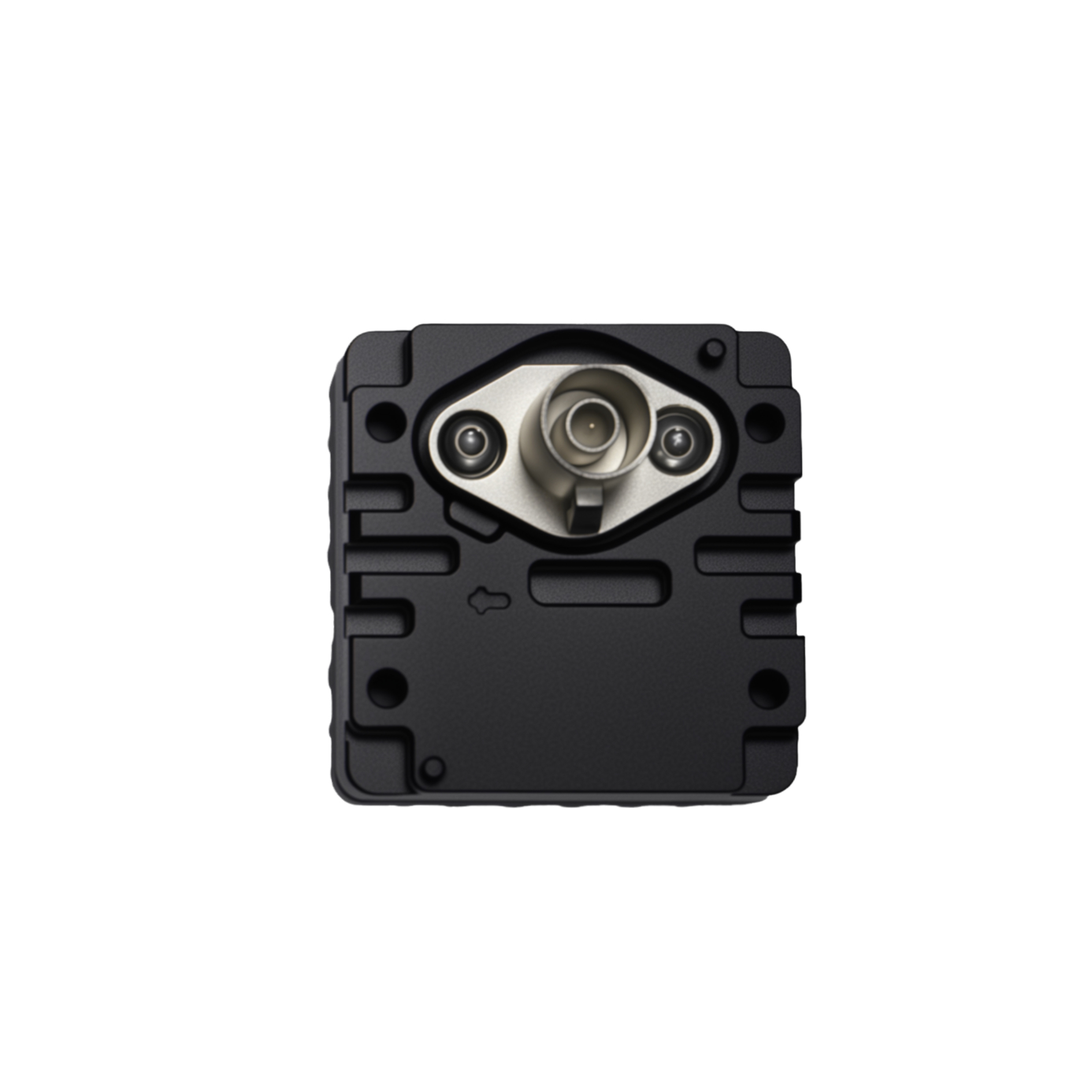

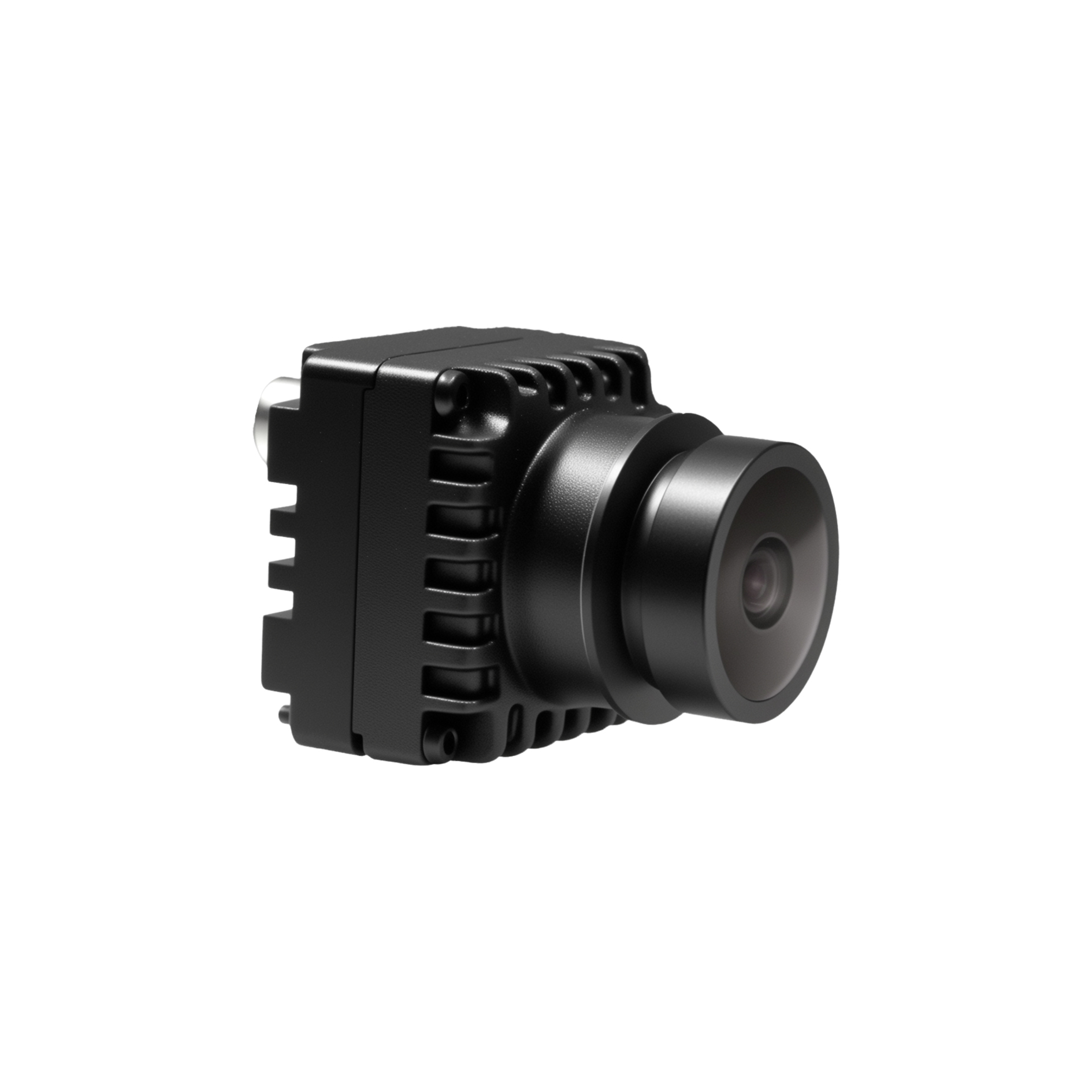

    Automatic-Defogging-Camera[3MP]-RedFox-D3Gx

    The camera is equipped with the SONY automotive-grade CMOS image sensor and Maxim GMSL serializer.It features a well-tuned Image Signal Processor (ISP) that delivers exceptional image quality. Housed in an IP67-rated enclosure, the camera is equipped with an AA lens that is precisely focused and performance.

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for Automatic-Defogging-Camera[3MP]-RedFox-D3Gx
    FeatureValue
    Resolution1920(H) × 1536(V)
    Frame RateMAX 60 fps
    SensorSONY 2.95MP RGGB
    ISPBuilt-in ISP
    Output dataYUV422
    SerializerMAXIM MAX96717
    Sensor TypeRolling Shutter
    Operating Temperature-40°C～+85°C
    Dimensions30 mm × 30 mm × 35 mm
    Field of View (HFOV)53.2°/ 118.4°/ 196°
