[5MP]-SGigE-E50-H2MC

    Vision Systems & Cameras · Sensing Cameras

    [5MP]-SGigE-E50-H2MC

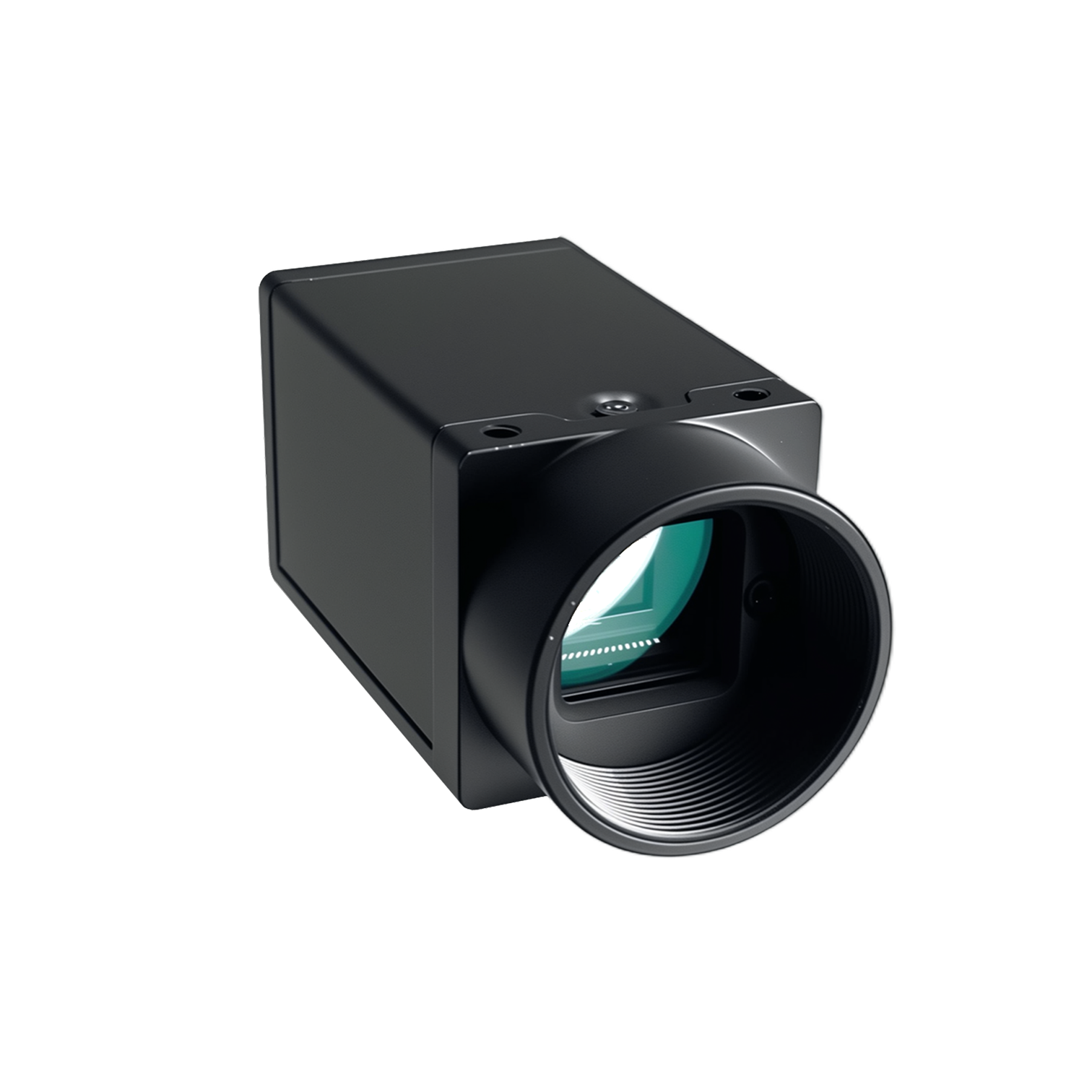

    The SGigE-E50-H2MC camera module adopts the HAITU CMOS HT50A image sensor, which features industrial-grade performance and is equipped with a C-Mount interface, enabling the connection of various lenses.

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for [5MP]-SGigE-E50-H2MC
    FeatureValue
    Resolution2448(H) × 2048(V)
    Frame Rate23.5 fps
    SensorHAITU 5MP HT50A Mono
    Sensor TypeRolling Shutter
    Operating Temperature0℃~+50℃
    Dimensions29 mm × 29 mm × 56.1 mm
    Image Size2/3 inch CMOS
    InterfaceGigE Vision
