[2MP]-SG2-AR0231C-0202-GMSL

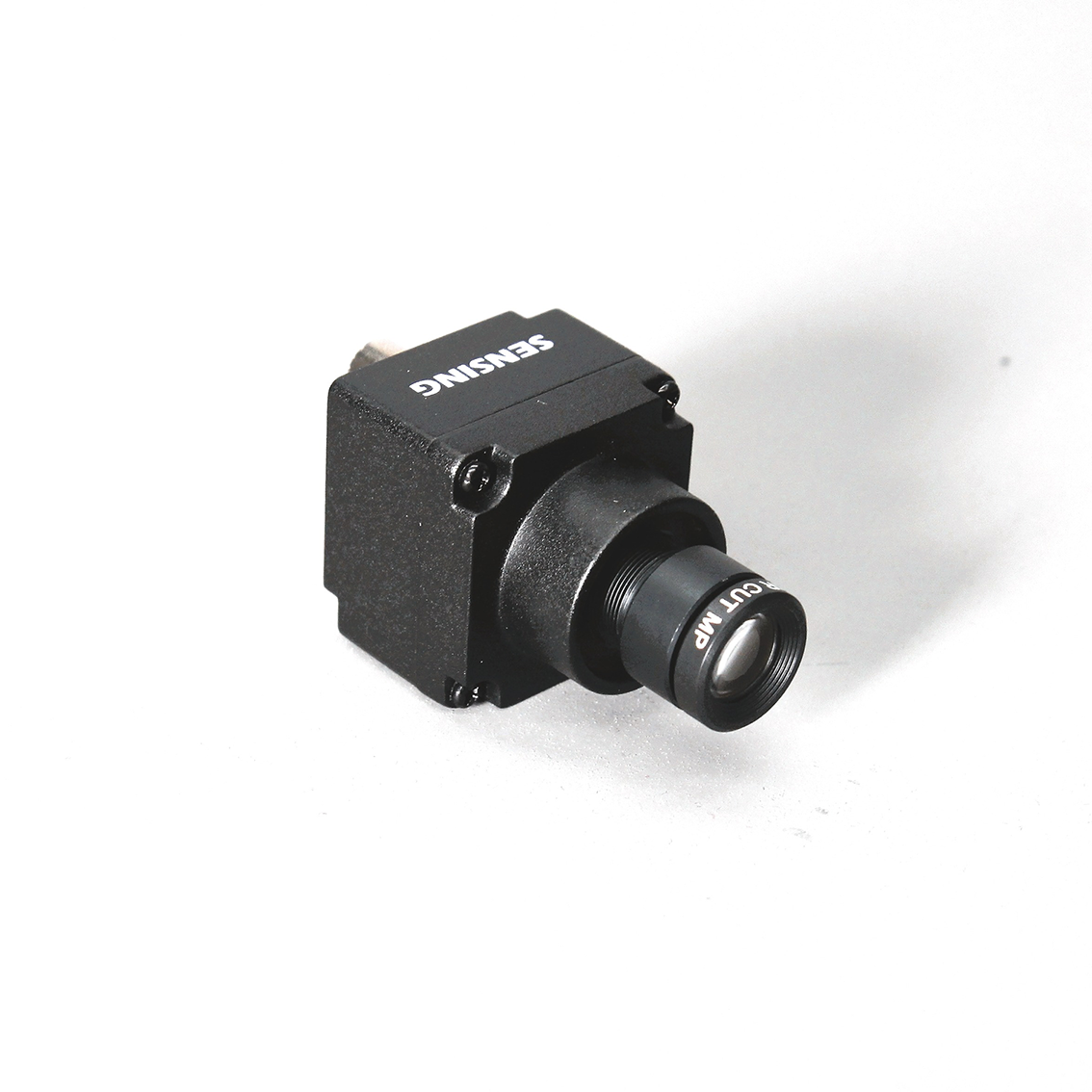

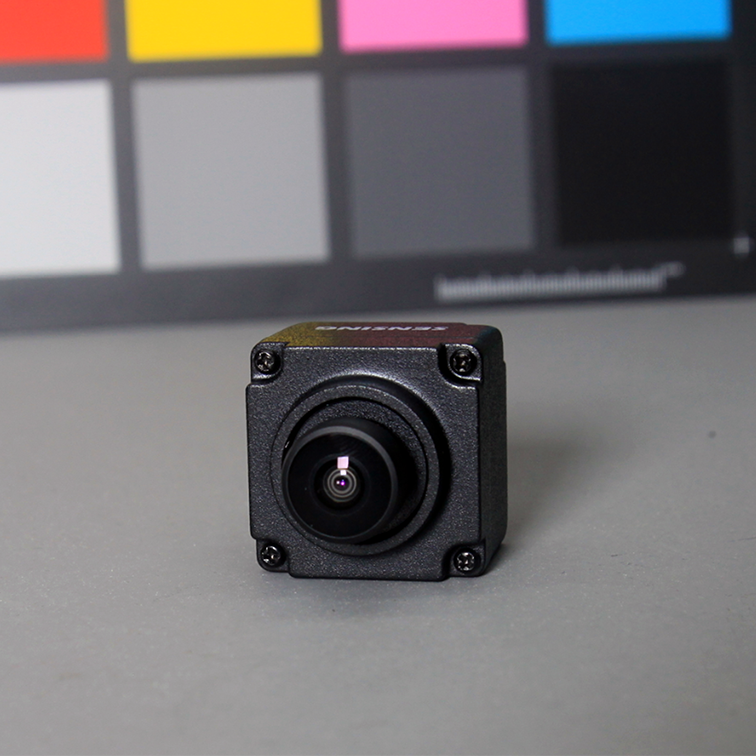

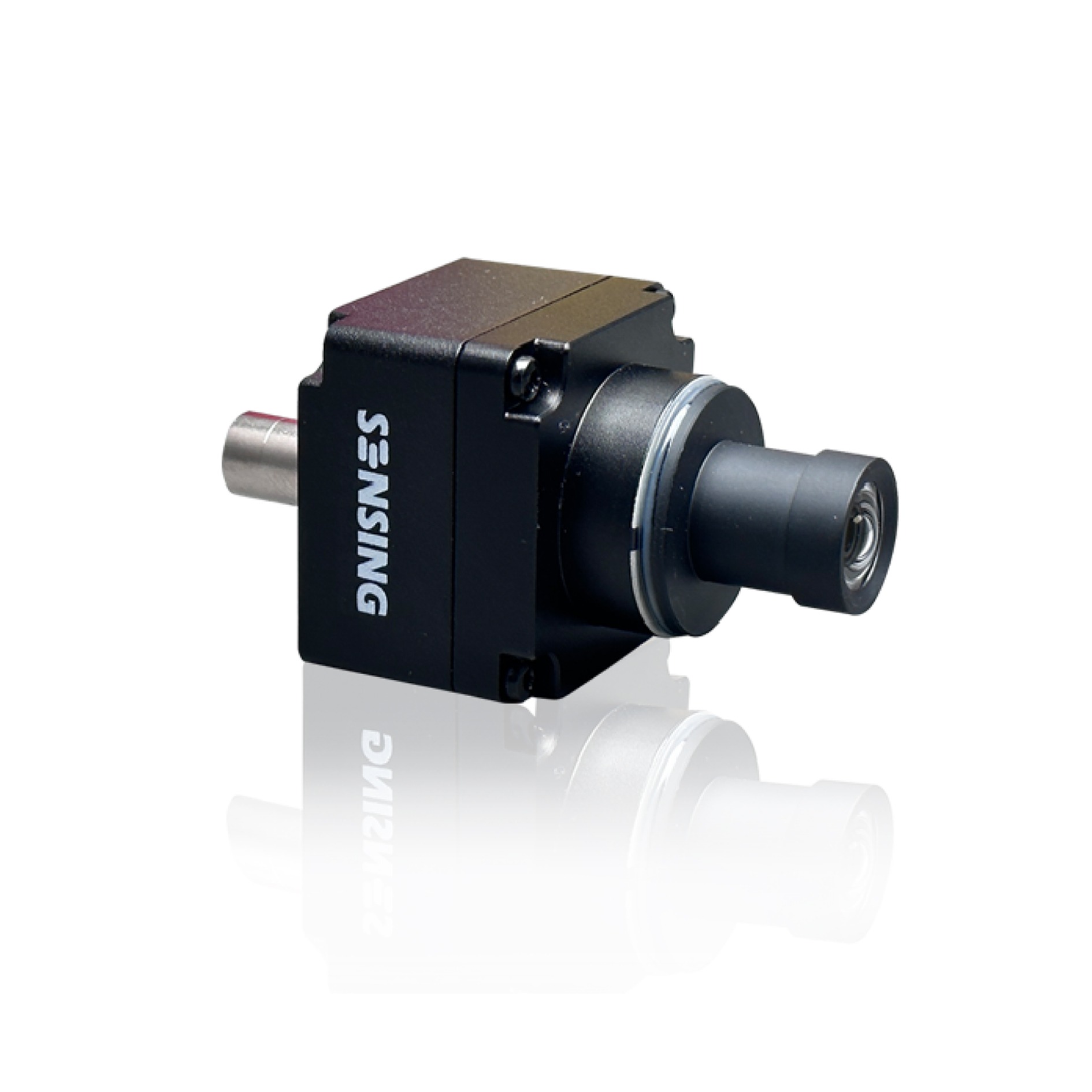

SG2-AR0231C-0202-GMSL-Hxxx camera module is equipped with On-semi CMOS image sensor AR0231 and Maxim GMSL. It has an automotive-grade sensor with a welltuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure equipped with an M12 lens.

Specifications

Technical Specifications

Product Features

Technical features and specifications for [2MP]-SG2-AR0231C-0202-GMSL
FeatureValue
Resolution1920(H) × 1080(V)
Frame Rate1920 × 1080 @ 22 fps
SensorONSEMI 2.3MP AR0231 RGGB
ISPAP0202
Output dataYUV422, 8-bit
SerializerMAXIM MAX96705
Sensor TypeRolling Shutter
Operating Temperature-40°C～+85°C
Dimensions30 × 30 × 22.5 mm
Field of View (HFOV)30°/ 60°/ 100°/ 121°/ 196°
