[2MP]-SG2S-OX03CC-G2F

    Vision Systems & Cameras · Sensing Cameras

    [2MP]-SG2S-OX03CC-G2F

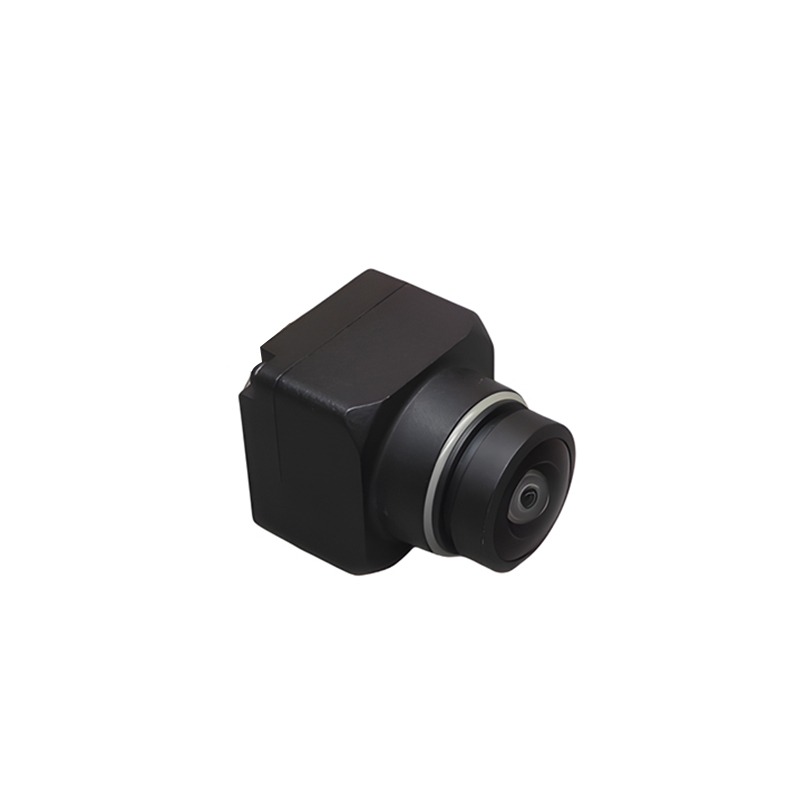

    SG2S-OX03CC-G2F-Hxxx camera module is equipped with OMNIVISION CMOS image sensor OX03C10 and Maxim GMSL2 serializer MAX96717F.It has an automotive-grade sensor,which comes with an IP67-rated enclosure is equipped with AA lens .

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for [2MP]-SG2S-OX03CC-G2F
    FeatureValue
    Resolution1920(H) × 1080(V)
    Frame Rate1920 × 1080 @ 60 fps
    SensorOMNIVISION OX03C10 RGGB
    Output data
    • 1. MIPI
    • 2. RAW 12
    SerializerMAXIM MAX96717F
    Sensor TypeRolling Shutter
    Operating Temperature-40°C～+85°C
    Dimensions25 mm × 25 mm × 18.6 mm
    Field of View (HFOV)59.7°/ 99°
