Vision Systems & Cameras · Sensing Cameras

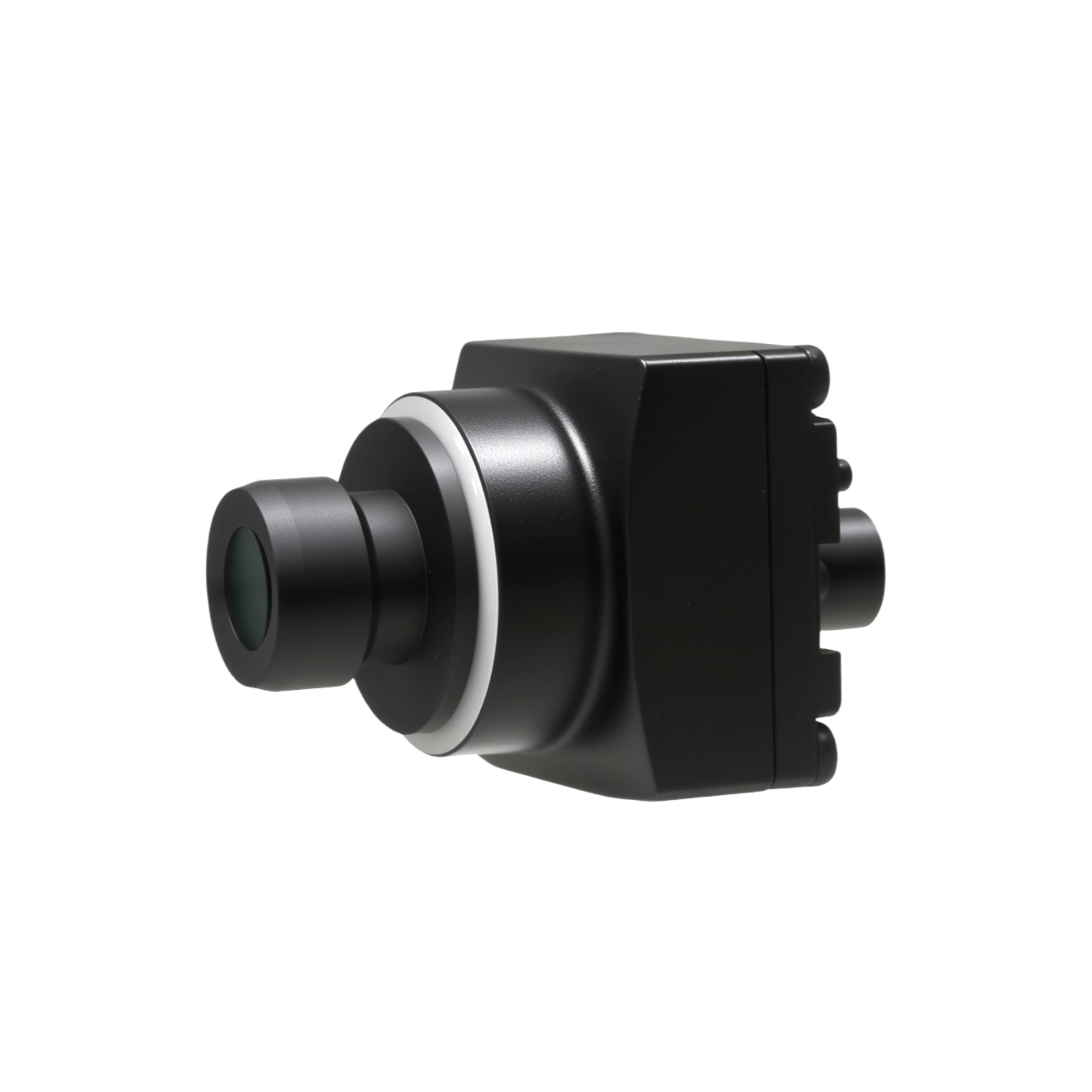

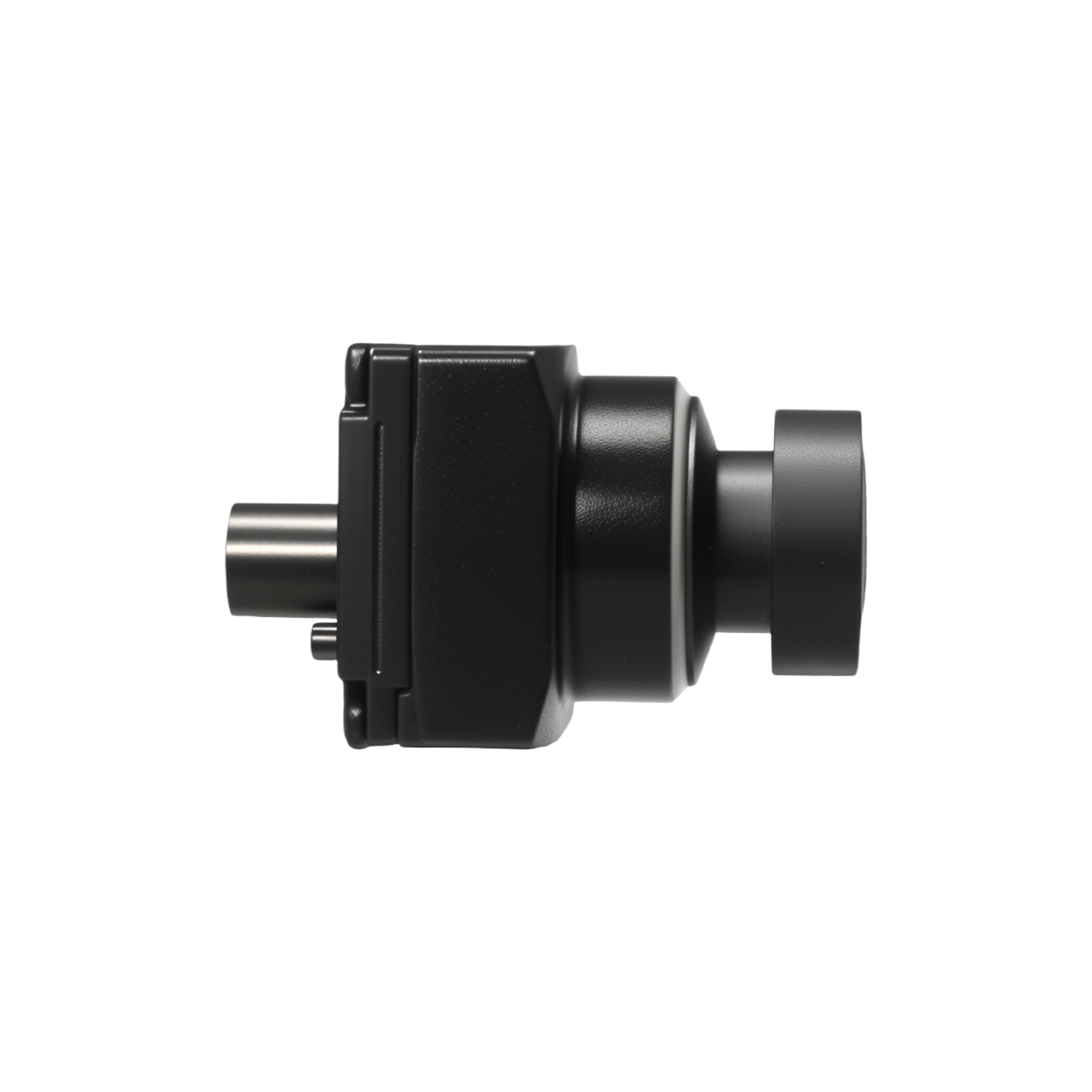

[3MP]-Monocular-Camera-SHW3G
SHW3G Monocular Camera Module is specifically designed for embodied intelligence applications. It employs a 3MP Global Shutter sensor and can be installed on locations such as the head or torso of humanoid robots. Tailored for robotic perception and recognition scenarios, it delivers high-quality imaging optimized through professional calibration. The module features a compact 25x25mm size and is equipped with a wide-angle lens.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| Resolution | 2064(H) × 1552(V) |
| Frame Rate | 2064 × 1552 @ 30 fps (max 125 fps) |
| Sensor | RGGB |
| Output data | RAW 12-bit/ 10-bit/ 8-bit |
| Sensor Type | Global Shutter |
| Operating Temperature | -20°C～+70°C |
| Dimensions | 25 mm × 25 mm × 32.12 mm |
| Field of View (HFOV) | 122° |
