Vision Systems & Cameras · Sensing Cameras

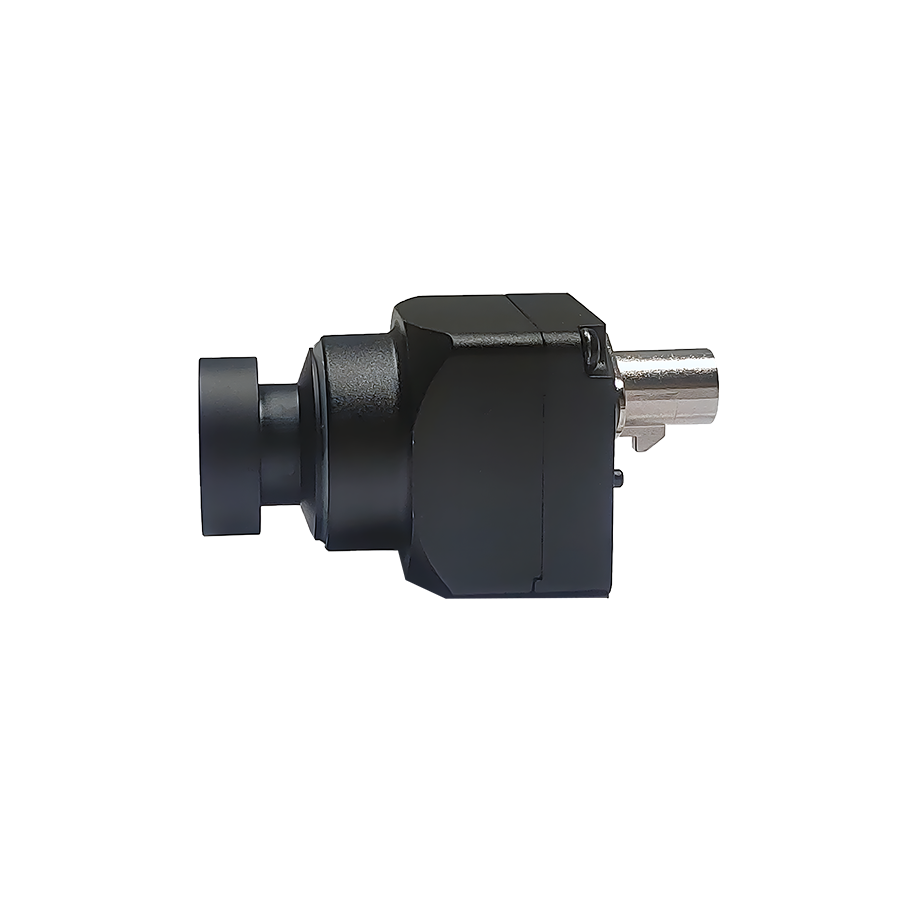

[3MP]-Monocular-Camera-SHW3H
SHW3H Monocular Camera Module is specifically designed for embodied intelligence applications. It utilizes a 3MP high dynamic range (HDR) high-frame-rate sensor and can be deployed on locations such as the head or torso of humanoid robots. Optimized for robotic perception and recognition scenarios, it delivers high-quality images through professional calibration. The module features an all-glass AA wide-angle lens and achieves an overall IP67 protection rating.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| Resolution | 1920(H) × 1536(V) |
| Frame Rate | 1920 × 1536 @ 60 fps |
| Output data | YUV422,8-bit |
| ISP | Built-in ISP |
| Sensor Type | Rolling Shutter |
| Operating Temperature | -40°C~+85°C |
| Dimensions | 25 × 25 × 37.55 mm |
| Field of View (HFOV) | 118° |
