    [17MP]-SG17-IMX735C-G3A

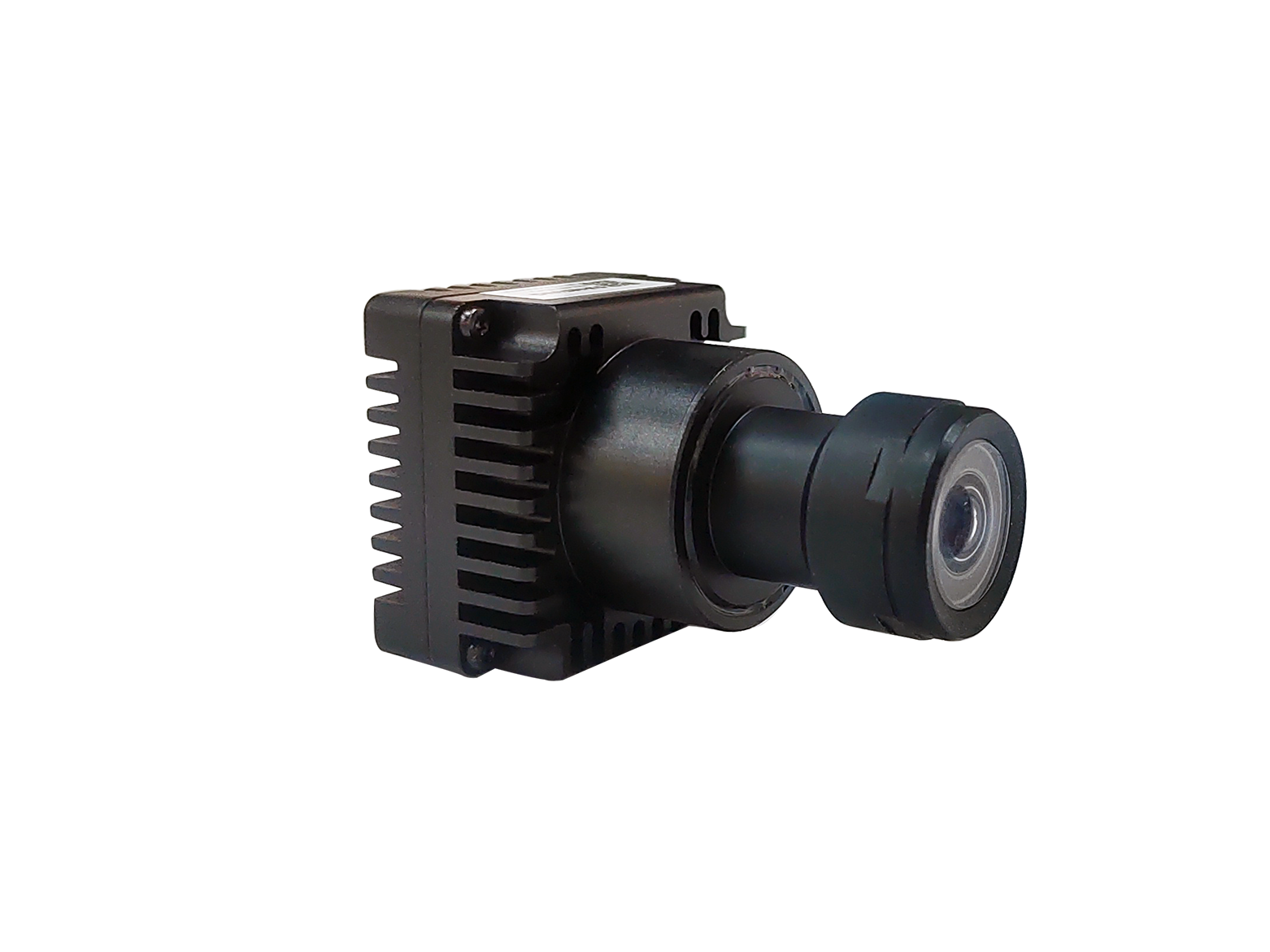

    SG17-IMX735C-G3A-Hxxx camera module adopts SONY CMOS image sensor (IMX735) and Maxim GMSL3 serializer (MAX96793) to develop and design.It conforms to the performance of the vehicle specification and has a high-quality image effect after professional image debugging, and equipped with M21/AA on-board specifications lens, the module as a whole can reach IP64 protection level.

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for [17MP]-SG17-IMX735C-G3A
    FeatureValue
    Resolution3000(H) × 5760(V)/ 3000(H) × 4000(V)/ 2160(H) × 3840(V)
    Frame RateMax 45 fps
    SensorSONY 17.42MP IMX735 RGGB
    Output data
    • 1. MIPI
    • 2. RAW 12
    SerializerMAXIM MAX96793
    Operating Temperature-40°C～+85°C
    Dimensions40 mm × 40 mm × 37.3 mm
    Field of View (HFOV)26°/ 96°/ 185°
