[2MP]-SH2-N1B60-G2A

    Vision Systems & Cameras · Sensing Cameras

    [2MP]-SH2-N1B60-G2A

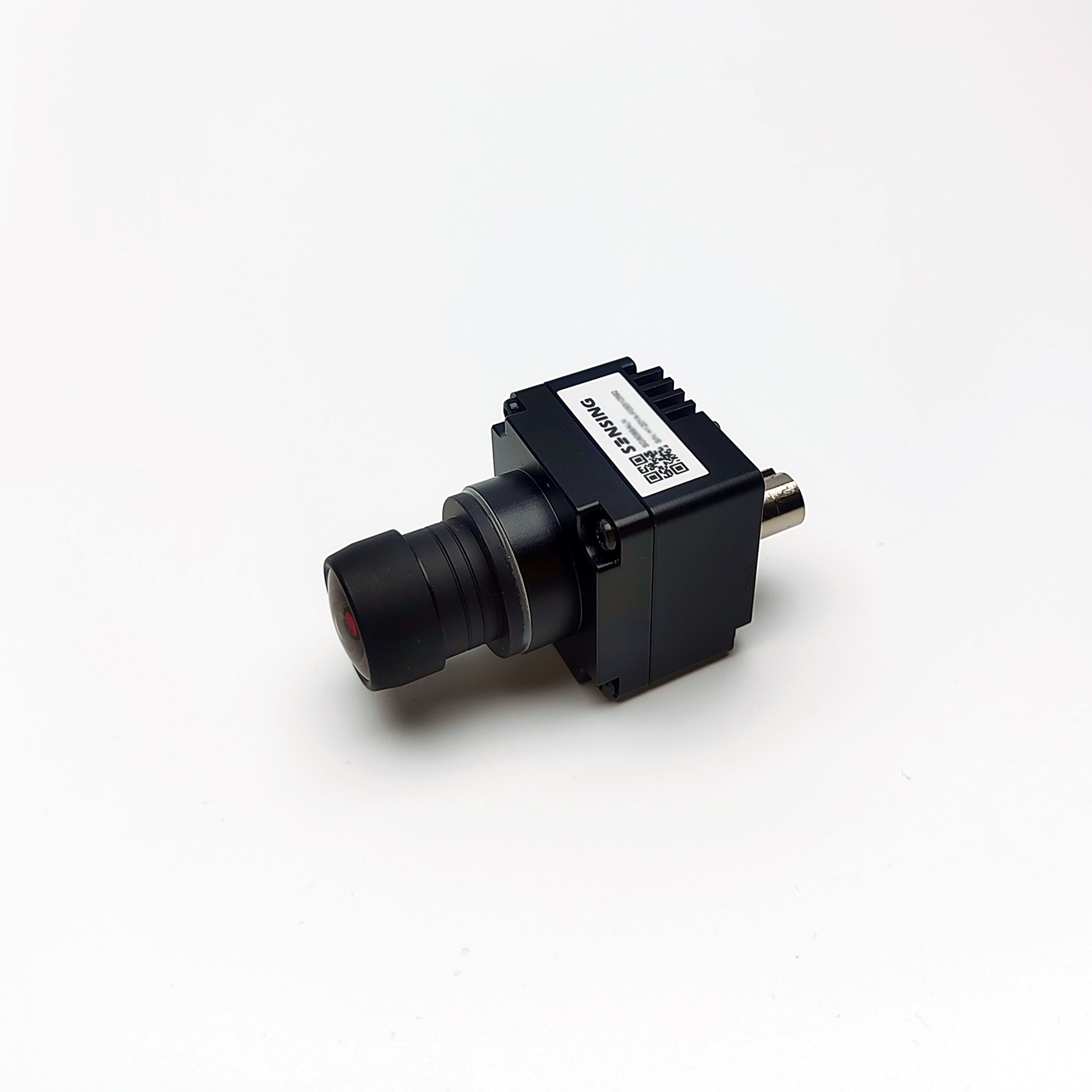

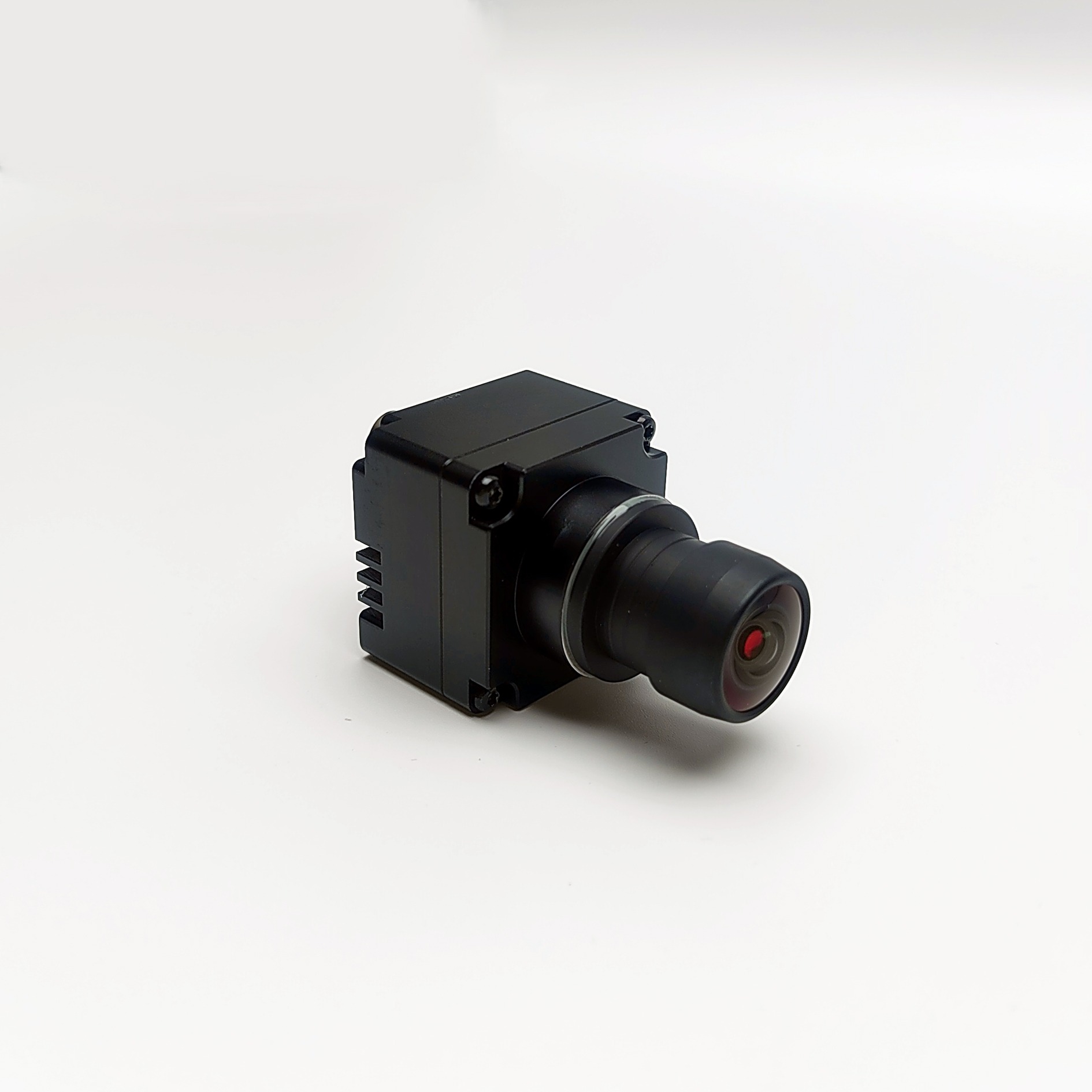

    SH2-N1B60-G2A-Hxxx camera module is equipped with On-semi CMOS image sensor AR0233 and Maxim GMSL2. It has an automotive-grade sensor with a welltuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is equipped with an AA lens .

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for [2MP]-SH2-N1B60-G2A
    FeatureValue
    Resolution1920 (H)× 1080(V)
    Frame Rate1920 × 1080 @ 60 fps
    SensorONSEMI 2.6MP AR0233 RGGB
    Output dataYUV422, 8-bit
    ISPGEO GW5200
    SerializerMAXIM MAX9295A
    Sensor TypeRolling Shutter
    Operating Temperature-40°C～+85°
    Dimensions30 mm × 30 mm × 22.5 mm
    Field of View (HFOV)60°/ 100°/ 118.4°/ 196°
