[3MP]-SH3-S11A60-G2A

    Vision Systems & Cameras · Sensing Cameras

    [3MP]-SH3-S11A60-G2A

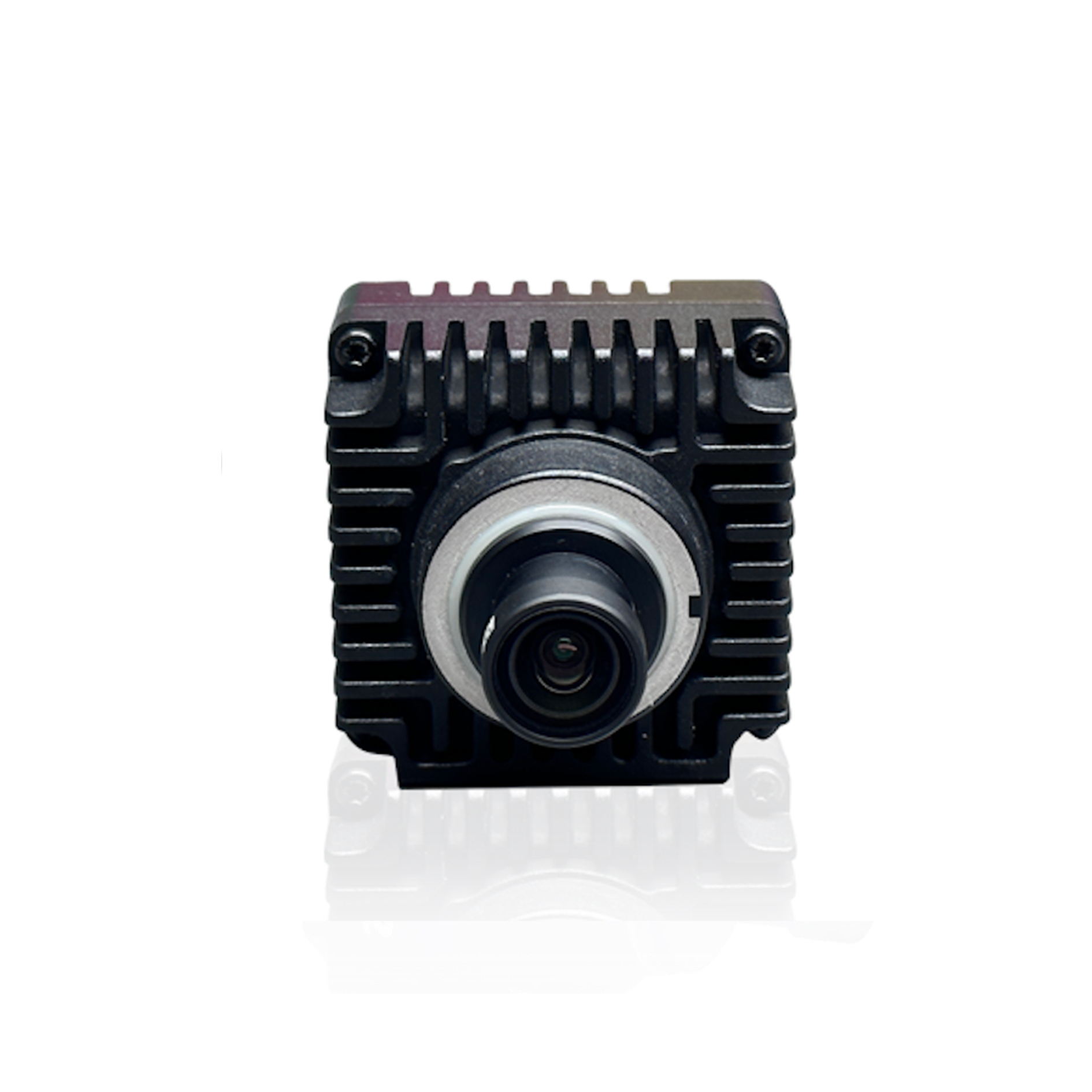

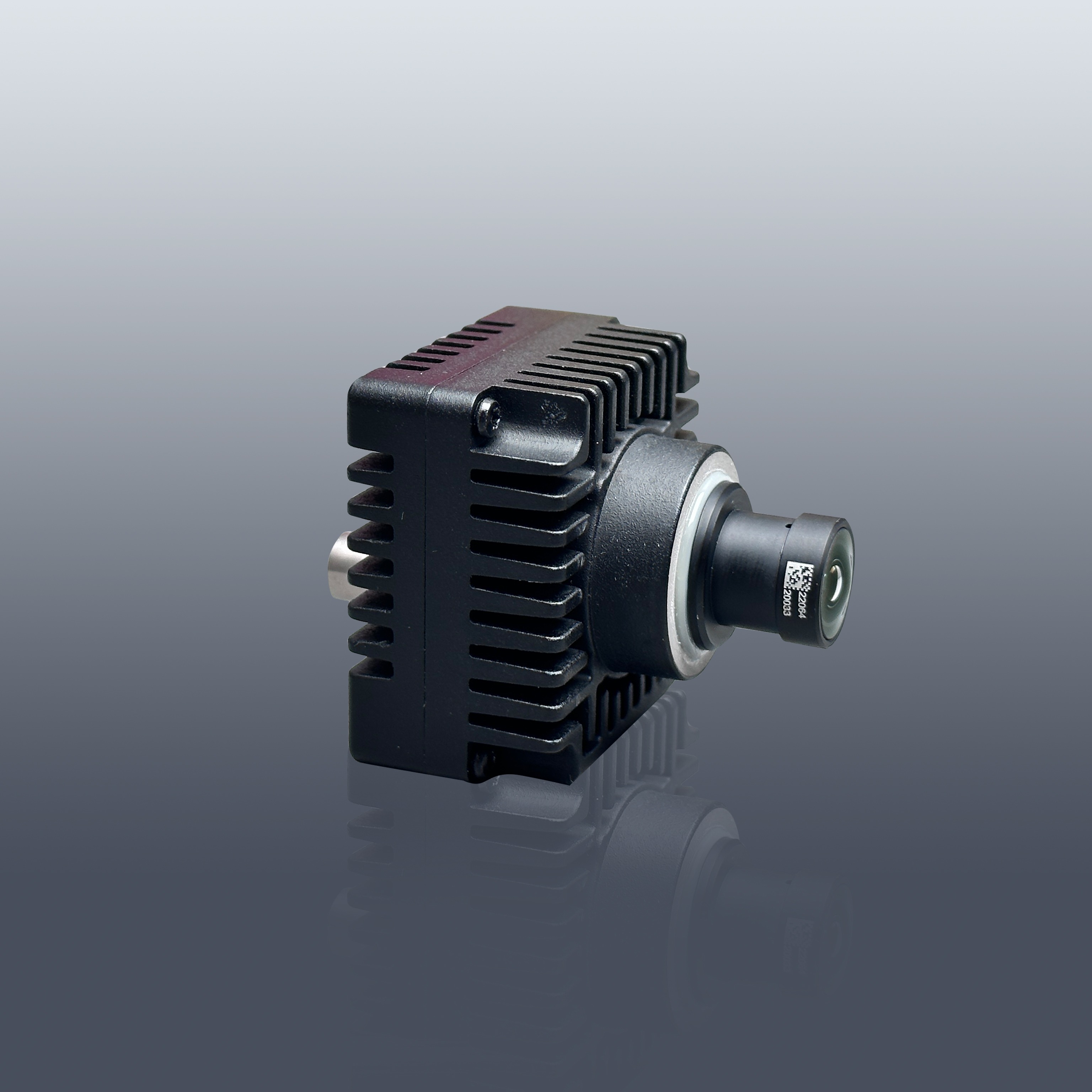

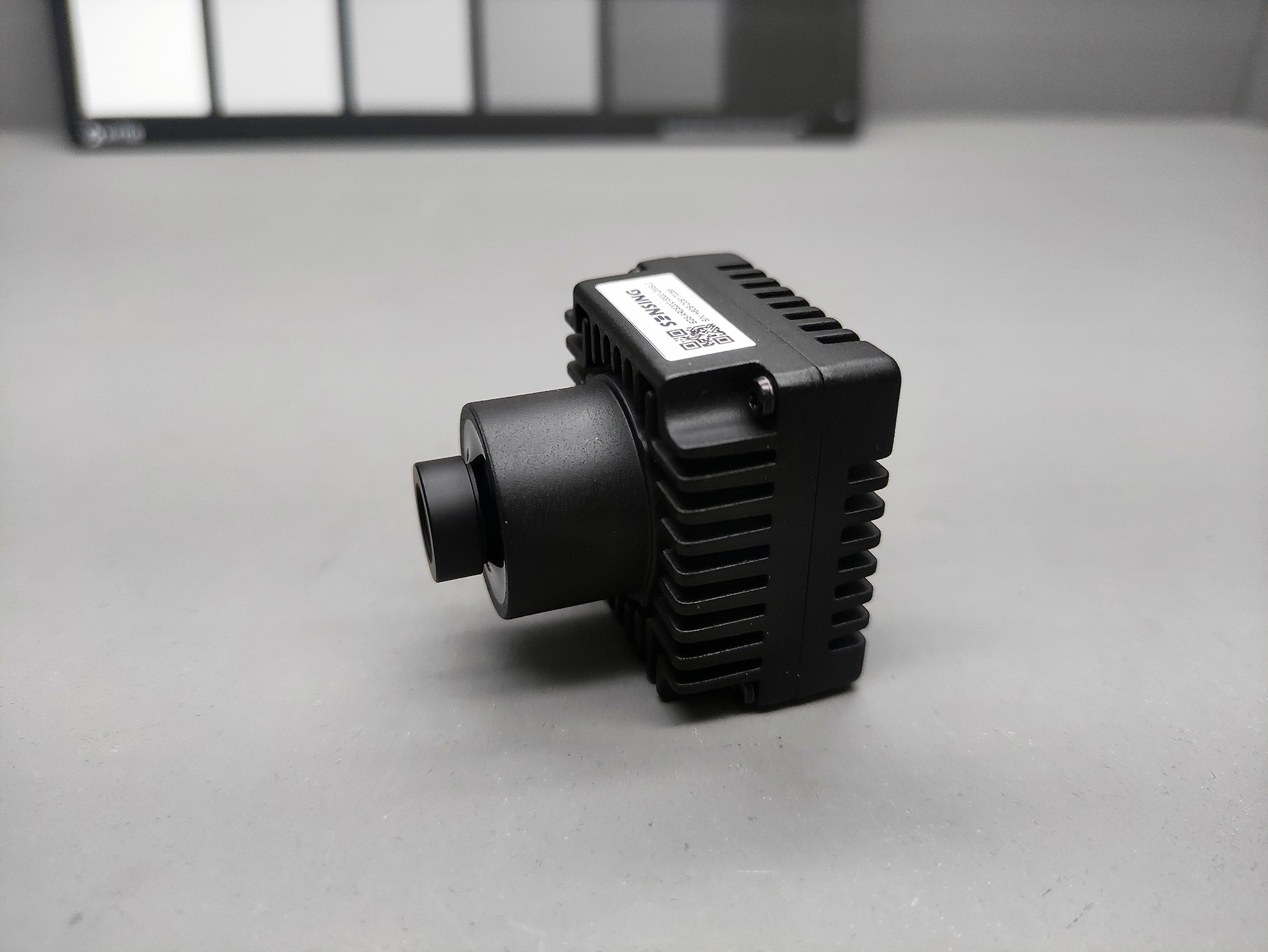

    SH3-S11A60-G2A-Hxxx-Hxxx is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX9295A. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is equipped with an AA lens .

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for [3MP]-SH3-S11A60-G2A
    FeatureValue
    Resolution1920(H) × 1536(V)
    Frame Rate1920 × 1536 @ 60 fps
    SensorSONY 2.95MP ISX031 RGGB
    ISPBuilt-in ISP
    Output dataYUV422, 8-bit
    SerializerMAXIM MAX9295A
    Sensor TypeRolling Shutter
    Operating Temperature-40°C～+85°C
    Dimensions25 mm × 25 mm × 18.6 mm
    Field of View (HFOV)30°/ 60°/ 100°/ 118°/ 196°
