    [3MP]-SG3-ISX031C-MIPI

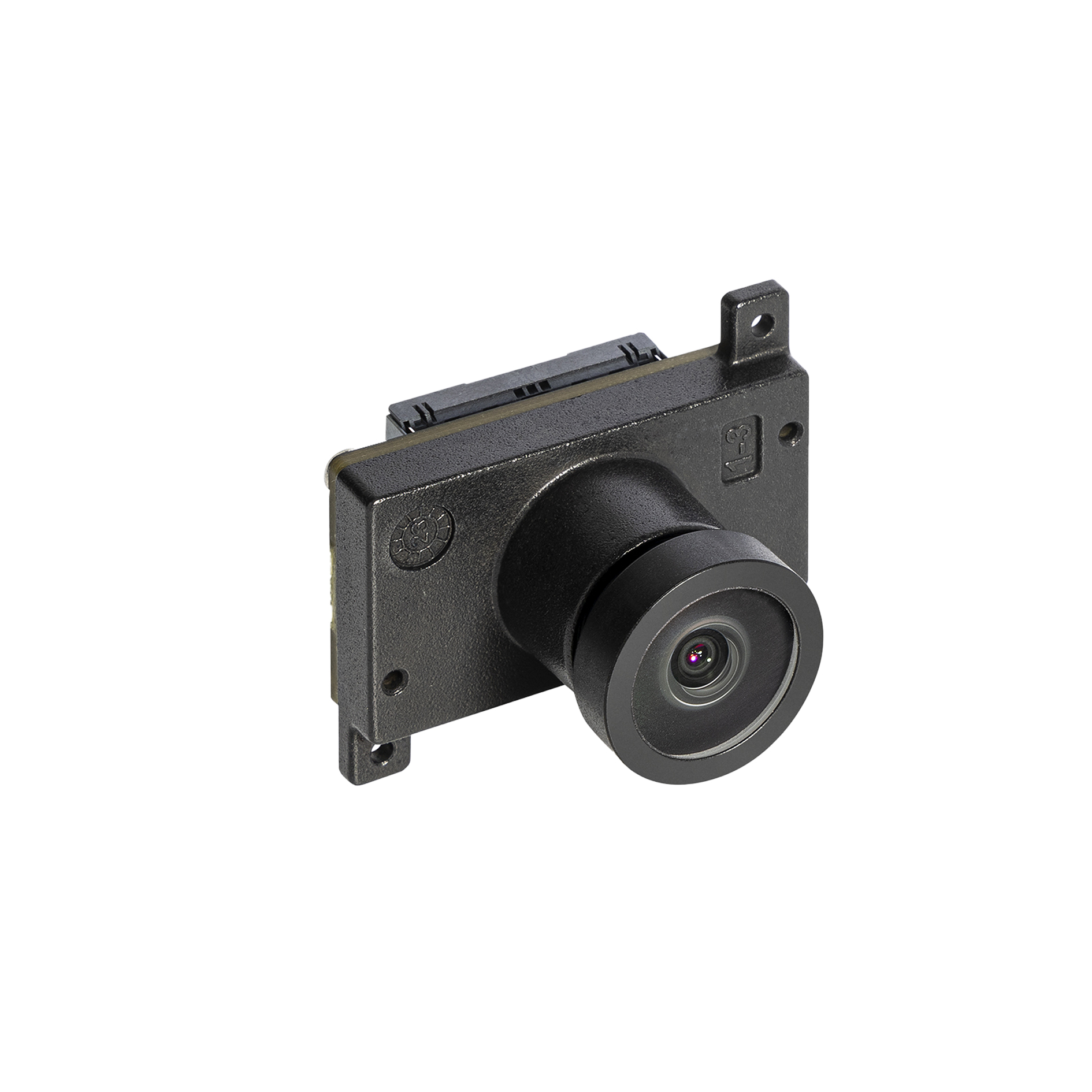

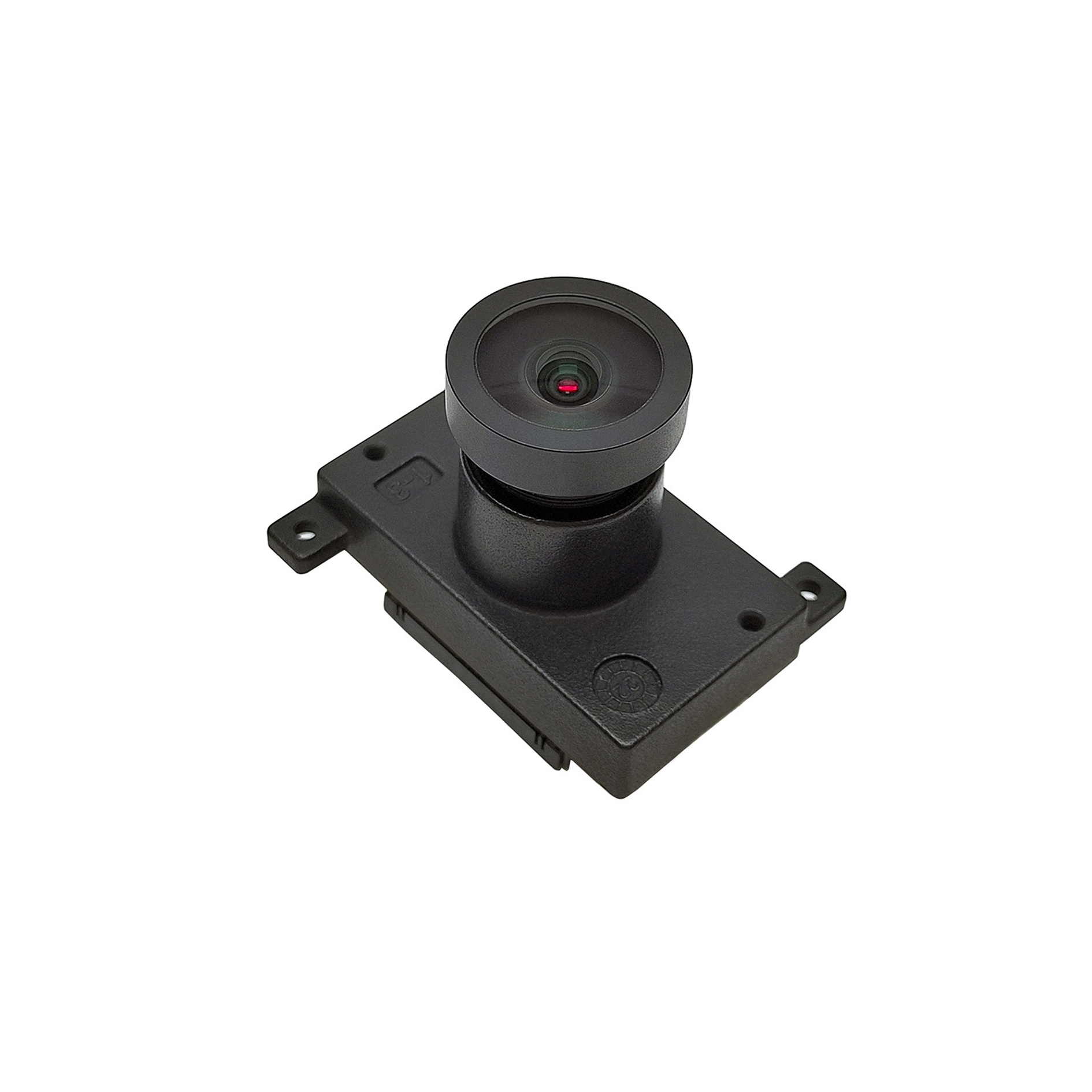

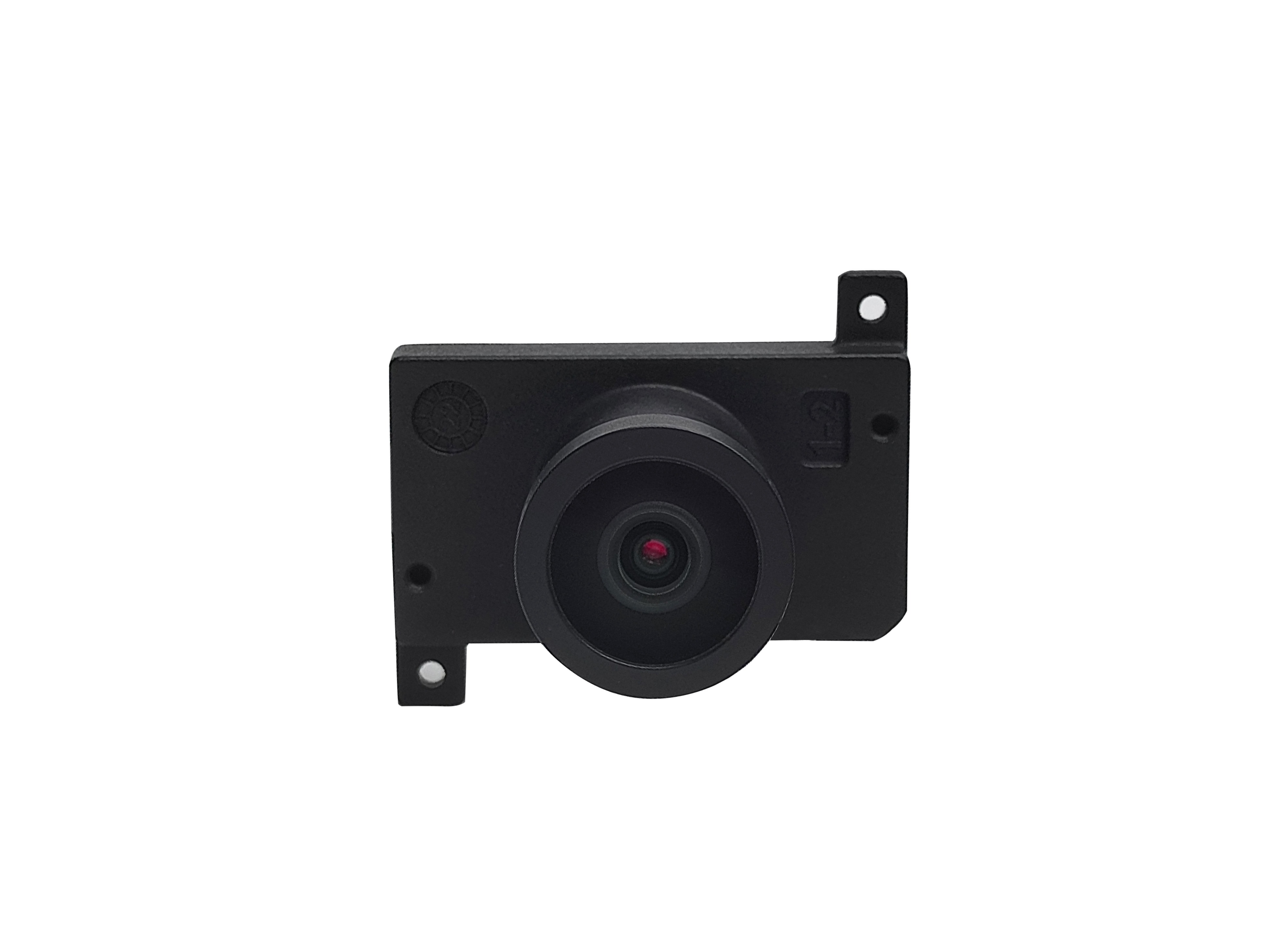

    SG3-ISX031C-MIPI-Hxxx camera module is equipped with SONY CMOS image sensor ISX031. It has an automotive-grade sensor with a well tuned Image Signal Processor (ISP) that produces exceptional image quality, can be adapted to difference SOC platforms.

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for [3MP]-SG3-ISX031C-MIPI
    FeatureValue
    Resolution1920(H) × 1536(V)
    Frame RateMax 60 fps
    SensorSONY 2.95MP ISX031 RGGB
    ISPBuilt-in ISP
    Output dataMIPI/YUV422-8bit
    Sensor TypeRolling Shutter
    Operating Temperature-20°C～+75°C
    Dimensions20 mm × 35 mm × 16.2 mm
    Field of View (HFOV)30°/ 60.35°/ 100.4°/ 196°
