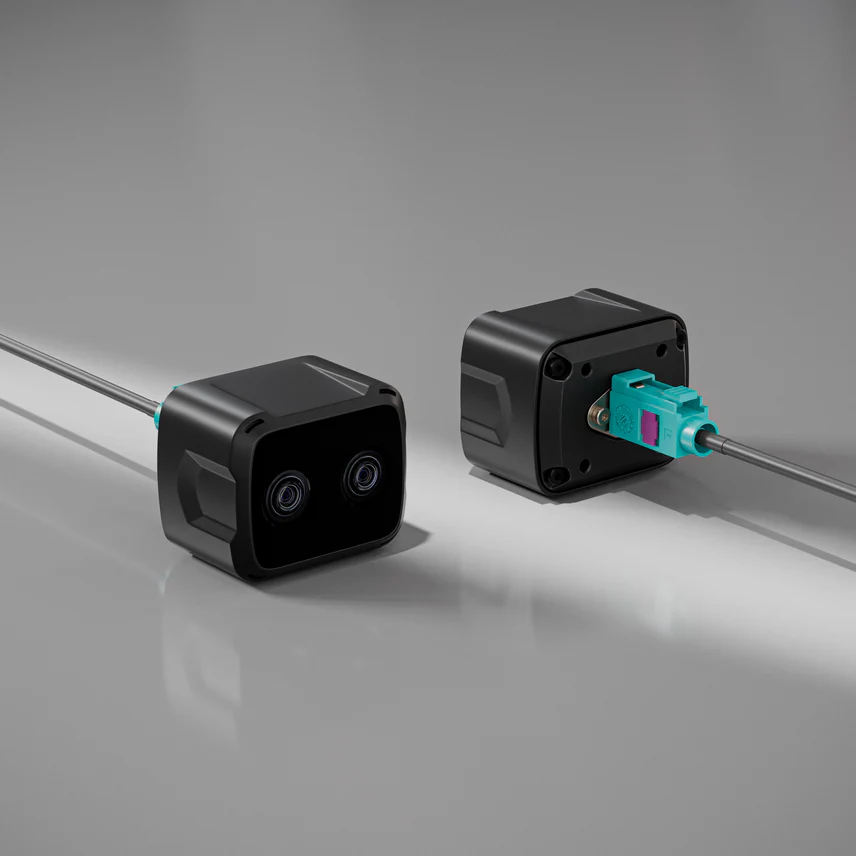

ZED X Nano Stereo Camera

    Vision Systems & Cameras · ZED Cameras

    ZED X Nano Stereo Camera

    The most advanced wrist-mount stereo camera for robotic manipulation, humanoids and Physical AI. Packed with high-resolution 2.3MP global shutter sensors, zero-copy capture, Neural Depth Engine and a ruggedized GMSL2 design. Pick, place, and inspect with sub-millimeter spatial intelligence.

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for ZED X Nano Stereo Camera
    FeatureValue

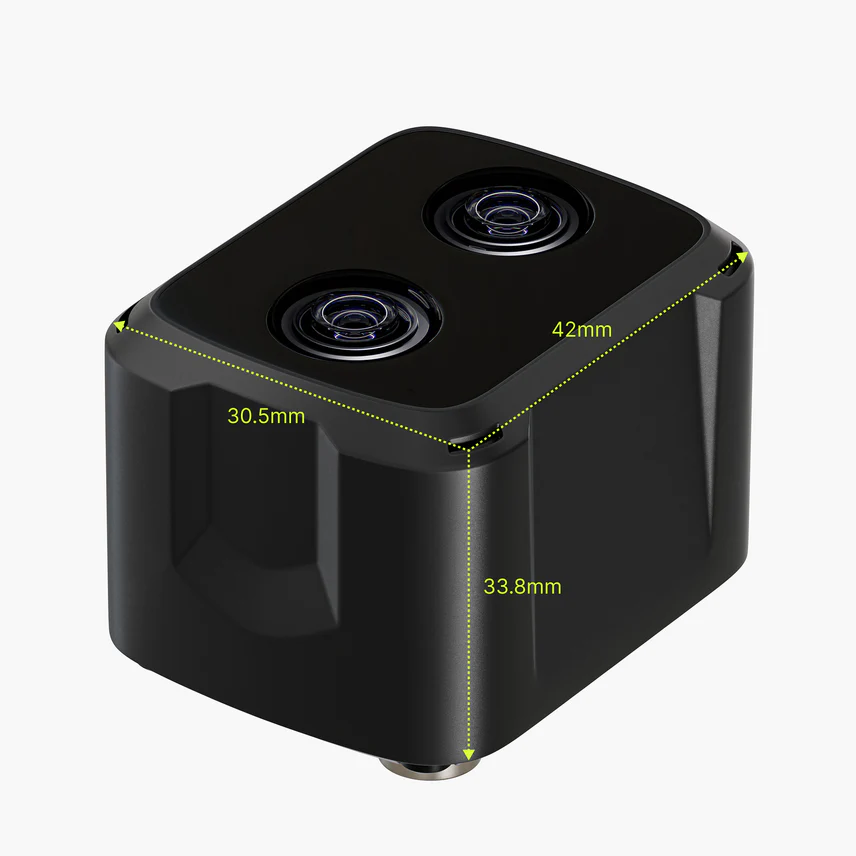

    Dimensions42.0mm × 30.5 mm × 33.8 mm
    Baseline18 mm
    Weight75 g
    Operating Temperature-20°C to +60°C
    Video Output
    • 1. 1200p @ 60/30/15 fps (2 × 1920 × 1200 Side-by-Side)
    • 2. 1080p @ 60/30/15 fps (2 × 1920 × 1080 Side-by-Side)
    • 3. 600p @ 120/60/30/15 fps (2 × 960 × 600 Side-by-Side)
    Video RecordingH.264, H.265, or Lossless Encoding (Host-Based)
    Video StreamingIP Streaming via ZED SDK
    Depth TechnologyNeural Stereo Depth Sensing
    Depth ResolutionNative Video Resolution (Ultra Mode)
    Depth Range0.03 m to 2.0 m /0.05 m to 1.5 m
    Depth Frame RateUp to 120 Hz
    Motion Sensors16-bit Accelerometer (Up to 12g)
    Motion Sensors16-bit Gyroscope (Up to 1000°/s)
    Sensor Data Rate200 Hz
    Pose Update RateUp to 120 Hz
