ZED Mini

    Vision Systems & Cameras · ZED Cameras

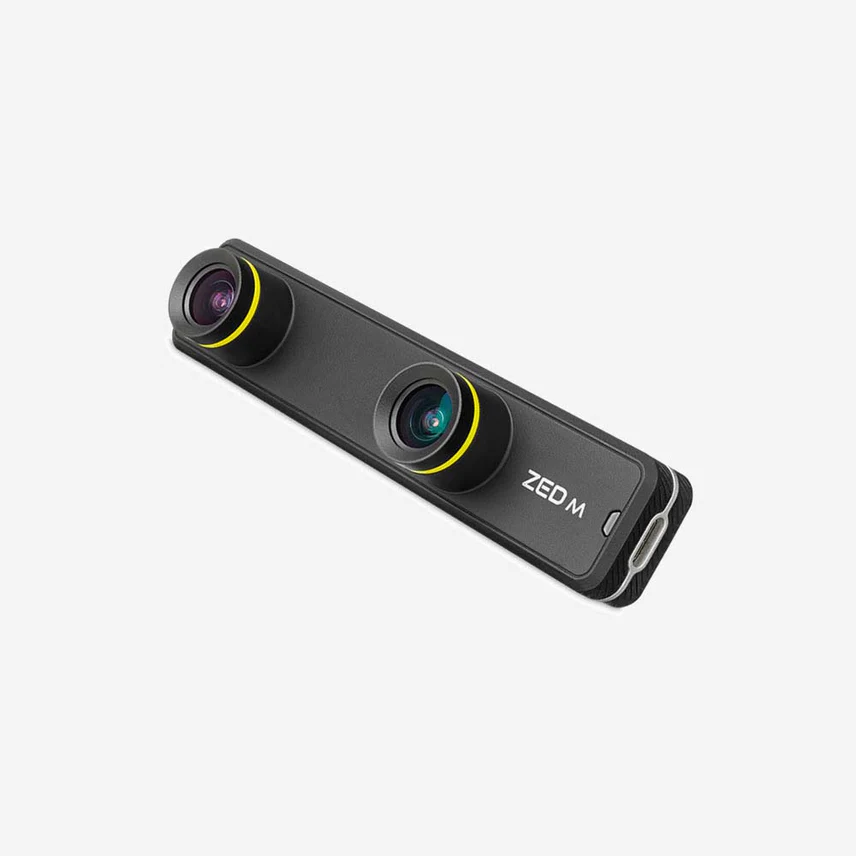

    ZED Mini

    The ZED Mini offers ultra-depth sensing and motion tracking in a compact design. Ideal for augmented reality, 3D mapping, and robotics applications.

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for ZED Mini
    FeatureValue
    Dimensions124.5 mm × 30.5 mm × 26.5 mm
    Baseline63 mm
    Operating Temperature0°C to +45°C
    Video Output
    • 1. 2K @ 15 fps (2208 × 1242)
    • 2. 1080p @ 30/15 fps (1920 × 1080)
    • 3. 720p @ 60/30/15 fps (1280 × 720)
    • 4. WVGA @ 100 fps (672 × 376)
    Video RecordingH.264, H.265, or Lossless Encoding (Host-Based)
    Video StreamingStream Anywhere Over IP
    Depth TechnologyStereo Depth Sensing
    Depth ResolutionNative Video Resolution (Ultra Mode)
    Depth Range0.1 m to 15 m /0.1 m to 9 m
    Depth Frame RateUp to 100 Hz
    Motion SensorsAccelerometer and Gyroscope
    Sensor Data Rate800 Hz
    Pose Update RateUp to 100 Hz

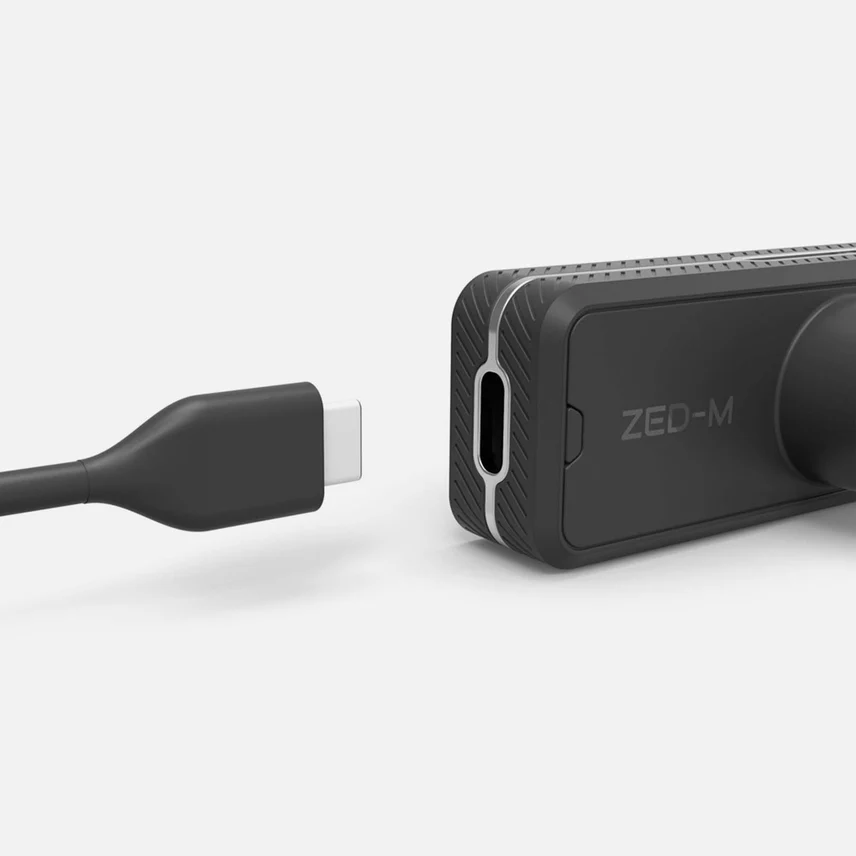

    InterfaceUSB 3.0
    Field of View (H × V)90° × 60°
    IMUIntegrated 6DoF IMU
